This package of great value and good savings, includes:

• 1x Topp Pro Active Subwoofer 18 "2000W: KS218A SUB
• 2x Topp Pro KS T28A Active Line Array: KS T28A

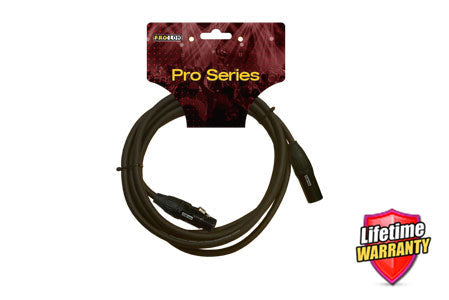

• 1x PROS 6 Microphone XLR Cable M-F Black: PROS6-MIC
• 2x PROS 3 Microphone XLR Cable M-F Black: PROS3-MIC
• 1x On Stage SS7746

The new TOPP PRO MUSIC GEAR KS ARRAY series cabinets have been designed to provide a cost-effective, high-grade solution with high quality construction and optimum components.

The KS ARRAY series is designed lightweight powered loudspeaker systems and all new class D power amplifiers.

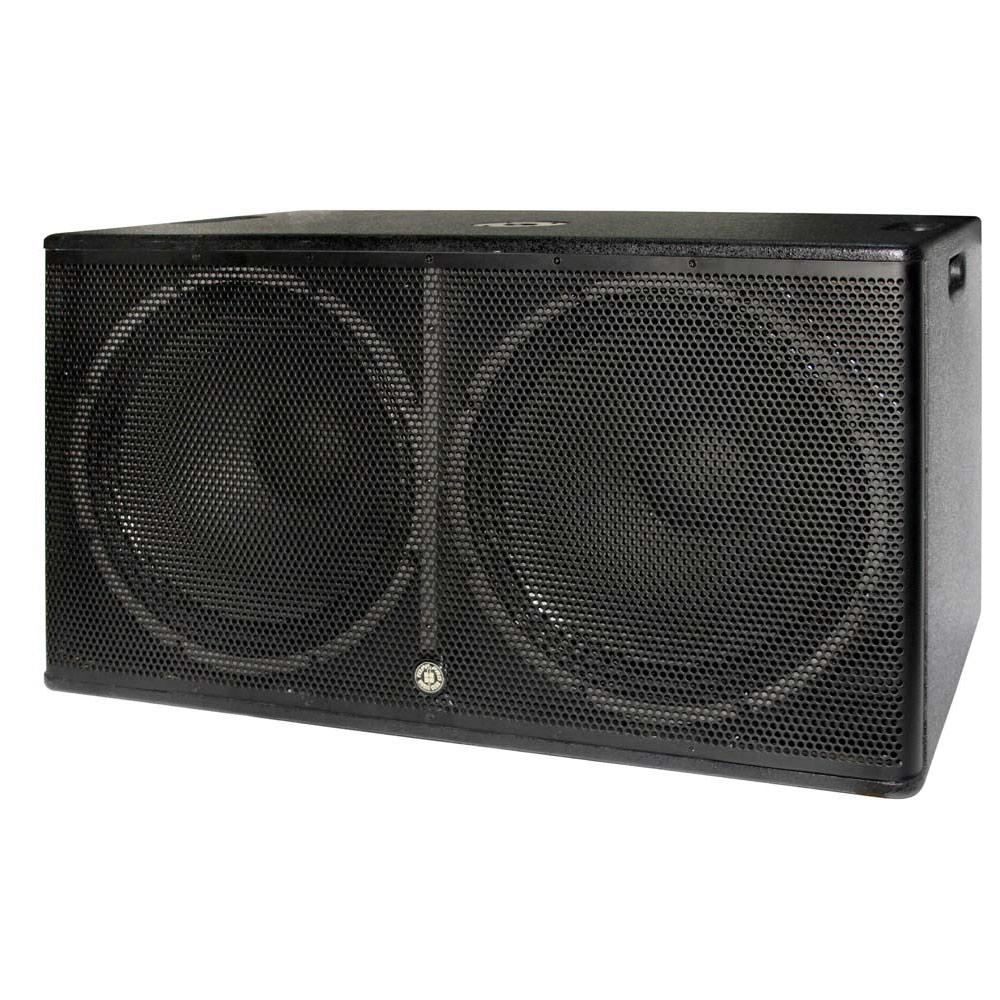

The KS218A-SUB  uses a 2000 Watt continuous class D power module. This series also breaks from the traditional loudspeaker paradigm, every model is fit with the identical 1.4” voice coil Compression Driver and woofer of high quality for unparalleled performance, regardless of speaker size. Extensive DSP processing is employed throughout, providing levels of sonic clarity and total output that defy the system’s size and weight. Premium-grade materials, advanced construction processes and multiple mounting and suspension options allow for a wide range of live and installed applications. Great pride and care is placed in delivering products with excellent performance, specifications, and dependable reliability.

SPECIFICATIONS

• Model Active: KS 218A SUB
• System Type: Active subwoofer
• Power Rating: 4000W (PROGRAM) / 8000W (PEAK)
• Transducer Low: 2 x 18" Woofer, 3" Sandwich Voice Coil with long excursion
• Max SPL: 133dB Max.
• Active Crossover: BandPass type 12dB/oct. under analog processor
• Frequency Response (-6dB): 35Hz - 120Hz under analog processor
• Input Connector: In-Left / Mono (COMBO) Right (XLR-F) / Out-Left / Mono Right (XLR-M) / Link-Left / Mono-Right (XLR-M) Balanced (15KOhms)
• External Controls: Volume Control / Phase Switch / HPF-80Hz for L-R Satellite or By Pass / Power ON with Green LED / Clip Limiter with Red LED / Ground Lift
• Electronic Protections: Thermal / Convection-Fan / Overload / Lim. / Compressor
• Power Supply: 110-120V~50/60Hz or 220-240V~50/60Hz Switchable
• Enclosure Construction: Plywood cabinet, metal grille, rubber foot
• Mounting: One metal standard pole-mount
• Dimensions (HxWxD): 535 x 518.5 x 1000mm (21.06" x 20.41 x 52.36")
• Net Weight: 46.64kg / 102.82Ibs
• Volume: 15.887CFT

The new TOPP PRO MUSIC GEAR KS ARRAY series cabinets have been designed to provide a cost effective high grade solution while maintaining high quality construction and optimum components.

The KS ARRAY series is designed light weight powered loudspeaker systems and all new class D power amplifiers.

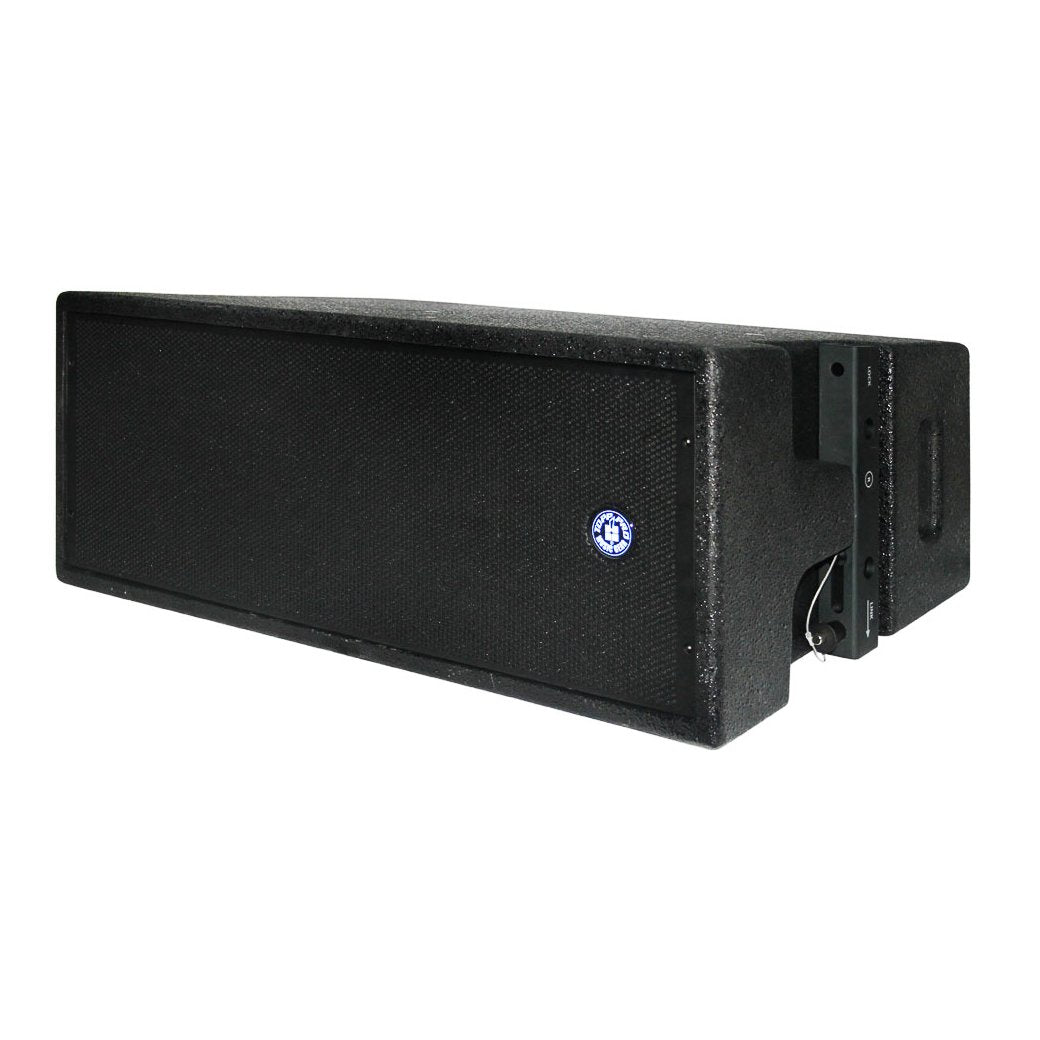

The KST28A  uses a 650 Watt continuous class D power module. This series also breaks from the traditional loudspeaker paradigm, every model is fit with the identical 1.4” voice coil Compression Driver and woofer of high quality for unparalleled performance, regardless of speaker size. Extensive DSP processing is employed throughout, providing levels of sonic clarity and total output that defy the system’s size and weight. Premium-grade materials, advanced construction processes and multiple mounting and suspension options allow for a wide range of live and installed applications. Great pride and care is placed in delivering products with excellent performance, specifications, and dependable reliability.

SPECIFICATIONS

• System Type: 2-Way Active Vented Speaker with DSP
• Transducer Low: 2 x 8" Woofer, 2" Voice Coil
• Transducer High: 2 × 1" Titanium diaphragm, Neodymium magnet,1.4" Voice Coil
• Coverage Horizontal: 100° nominal, single unit
• Coverage Vertical: 7.5° variable with array configuration
• Frequency Response (-6dB): 65Hz-20KHz
• Crossover Frequency:  At 2.0KHz with 24dB filter slope, DSP process
• Max SPL: 129dB Max.
• AMP Power Output: 1600W Program, 3200W Peak
• Input Connector: Line in -Combo / Link-XLR
• Dsp Presets: Flat / HF +3dB / User (Custom Sound)
• Line Input: Combo Connector -6dBu
• External Controls: Volume Control / Neutrik POWER CON® connector (Grey) offers linking the mains power supply
• power display with green LED / Clip Limiter with Red LED / IP Control Module (Optional)
• Electronic Protections: Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
• Power Supply: Neutrik POWER CON® connector,110-120V / 220-240V~50/60Hz Switchable
• Suspension/Mounting: Integrated hardware for suspension in Line Array, dual pole socket, two handle
• Enclosure Construction: 18mm calibrated plywood, black painted finish, 1.2T metal grille, power coating finish with internal foam
• Dimensions (HxWxD): 271.5 × 692 × 423.5mm (10.7" × 27.25" × 16.7")
• Net Weight: 29.1kg / 64.15Ibs

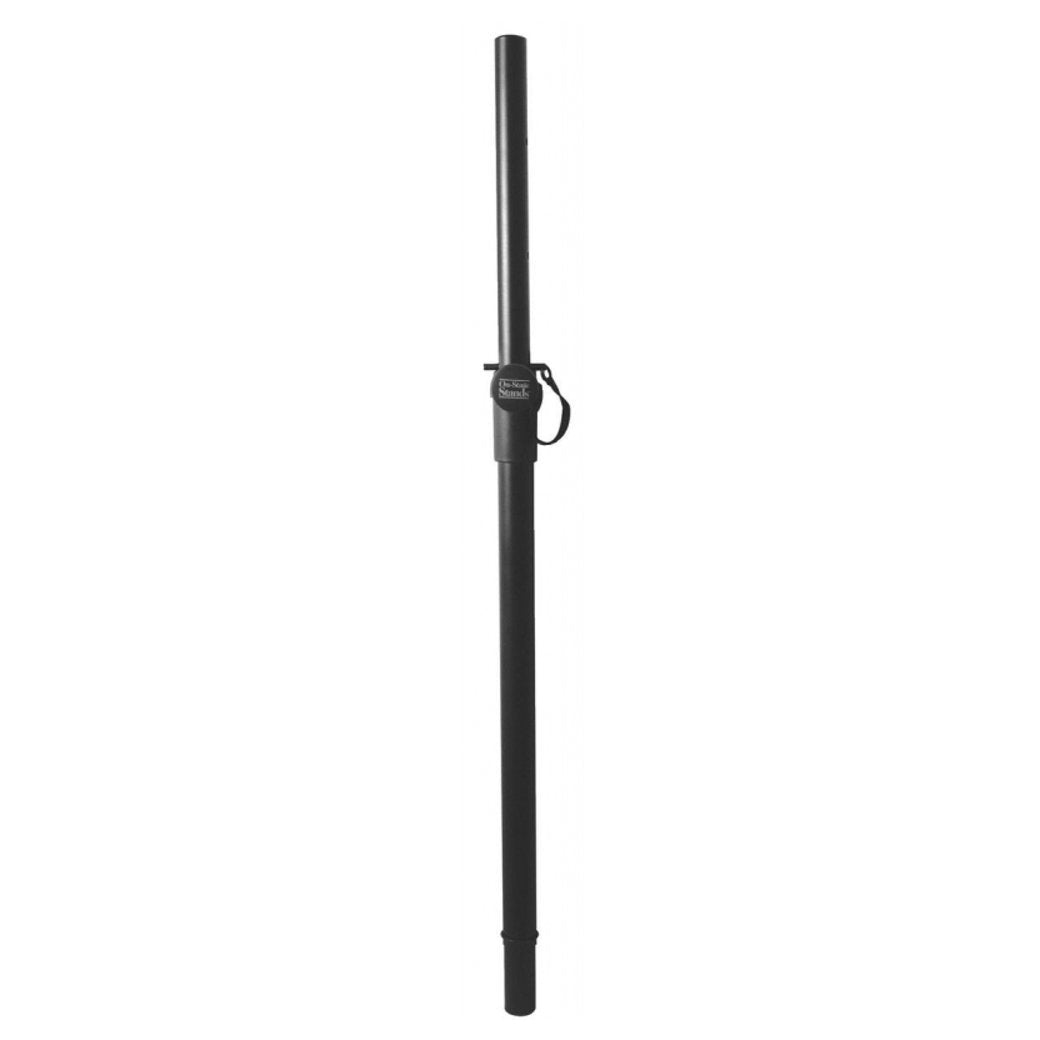

Model: SS7746

All-steel shaft adjusts from 31 5/8"-55" with a friction locking knob and security pin for added security. Fits tops and subwoofers with 1 3/8" pole mounts (Max height with security pin: 53.25").

• Fits 1 3/8" speakers and subwoofers
• All-steel construction
• Features a 2-section vertical shaft with preset height adjustment holes and locking pin for added security and height range of 31 5/8" to 55"

Retail Package Measurements & Shipping Weights
Type                  Quantity    Length (in)    Width (in)   Height (in)   Weight (lb)
EACH                    1               31.92               4                 2.5               3.7
ASSEMBLED        1               52.63             2.75              3.75             3.7
