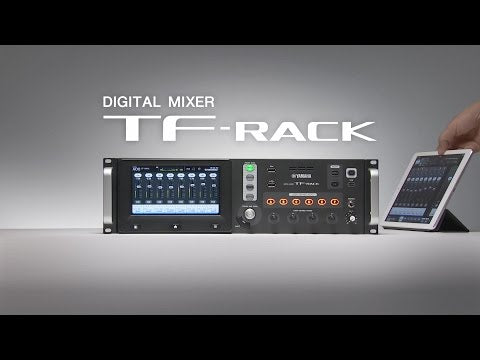

- VIDEO
Ever since the first Yamaha digital mixer was released in 1987, the company has been a leader in digital mixer innovation for a wide range of applications. For small events and halls, large-scale outdoor concerts, music production, commercial installations and more, Yamaha offers a comprehensive lineup that delivers world-renowned sonic quality, operability, functionality and reliability.
TF Series digital mixing consoles released in 2015 offer TouchFlow Operation™ which allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications.

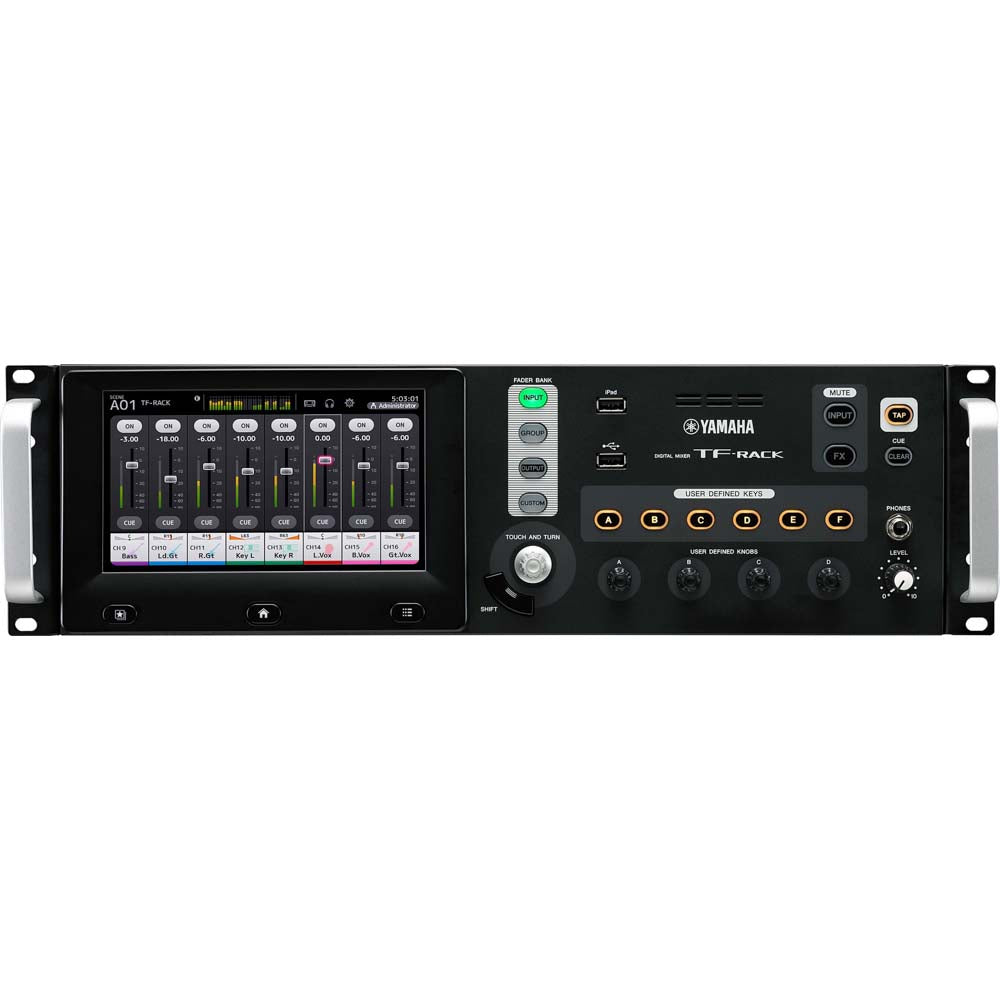

The new TF-RACK is a compact rack-mount version of the TF Series, offering the same levels of performance and groundbreaking operability. This space-saving model is accessible to a wide range of users, from beginners to seasoned engineers. The TF-RACK is an unbeatable choice when smooth, intuitive setup and operation is required in limited spaces.
Mixer | Input Channels: 40 (32 mono + 2 stereo + 2 return) Aux Buses: 20 (8 mono + 6 stereo) Stereo Buses: 1 Sub Buses: 1 Input Channel Functions: 8 DCA Groups |
I/O | Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin) Outputs: 16 (XLR) Expansion Slots: 1 |
DSP | 8 effects + 10 GEQ |
USB | 34 x 34 USB audio interface, 2-track recording via USB storage device |
Sampling Frequency | 48 kHz, internal |
Signal Delay | Less than 2.6 ms, Input to Omni Out, Fs=48 kHz |
Total Harmonic Distortion | Less than 0.05% 20 Hz - 20 kHz @ +4 dBu into 600 Ohms, Input to Omni Out, input gain = min. (measured with a -18 dB/octave filter @ 80 kHz) |
Frequency Response | +0.5, -1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @ 1 kHz, Input to Omni Out |
Dynamic Range | 110 dB typ., DA converter, 108 dB typ., Input to Omni Out, input gain = min |
Noise | Equivalent Input Noise: -128 dBu typ., input gain = max. (measured with an A-weight filter) Residual Output Noise: -85 dBu, ST master off (measured with an A-weight filter) |
Crosstalk | -100 dB (measured with a -30 dB/octave filter @ 22 kHz), adjacent Input/Omni Out channels, input gain = min |
Power Requirements | 100 - 240 VAC 50/60 Hz |
Power Consumption | 85 W |

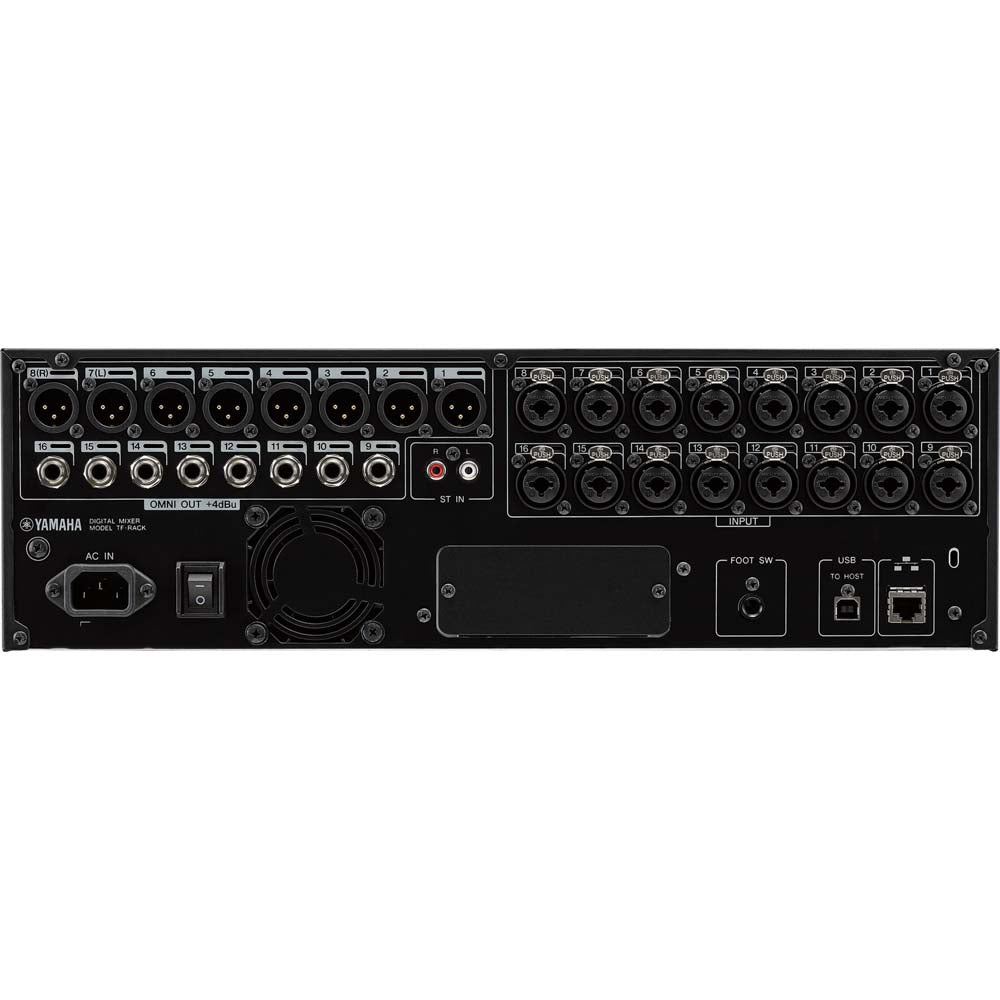

Analog Inputs | Input Terminals: Input 1-16, ST In 1,2 Gain: -6 dB / +66 dB (Input 1-16) Load Impedance: 7.5 kOhms (Input 1-16); 10 kOhms (ST In 1,2) For Use with Nominal: 50 - 600-Ohm mics or 600-Ohm lines (Input 1-16); 600-Ohm lines (ST In 1,2) Sensitivity: -82 dBu (61.6 μV), -10 dBu (245 mV) (Input 1-16); -30 dBV (31.6 μV) (ST In 1,2) Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V) (Input 1-16); -10 dBV (316 mV) (ST In 1,2) Max. Before Clip: -42 dBu (6.16 mV), +30 dBu (24.5 V) (Input 1-16); +10 dBV (3.16 V) (ST In 1,2) Connector: Combo Jack (XLR-3-31 type or TRS phone) balanced (Input 1-16); RCA pin jack unbalanced (ST In 1,2) |
Analog Outputs | Output Terminals: Omni Out 1-16, Phones Source Impedance: 75 Ohms (Omni Out 1-16); 100 Ohms (Phones) For Use with Nominal: 600-Ohm lines (Omni Out 1-16); 40 Ohms (Phones) GAIN SW: +24 dBu position (default) (Omni Out 1-16) Nominal Output Level: +4 dBu (1.23 V) (Omni Out 1-16); 3 mW (Phones) Max. Output Level Before Clip: +24 dBu (12.3 V) (Omni Out 1-16); 75 mW (Phones) Connector: XLR-3-32 type balanced (Omni Out 1-16); stereo phone jack (TRS) unbalanced (Phones) |
Digital Input/Output | Terminals: USB (to Host), iPad Format: USB Data length 24-bit (USB to Host) Audio: 34-ch input / 34-ch output, PCM (USB to Host); Playback: MP3 or WAV file data / Record: WAV file data (iPad) Connector: USB (B-type) (USB to Host); USB (A-type) (iPad) |
Control I/O | Terminals: Network, Foot SW Format: IEEE802.3 (Network) Level: 10Base-T/100Base-TX (Network) Connector: RJ-45 (Network); TS Phone (Foot SW) |
Dimensions (W x H x D) | 18.9 x 5.2 x 16.1" / 48.0 x 13.2 x 40.9 cm |
Net Weight | 20.3 lb / 9.2 kg |

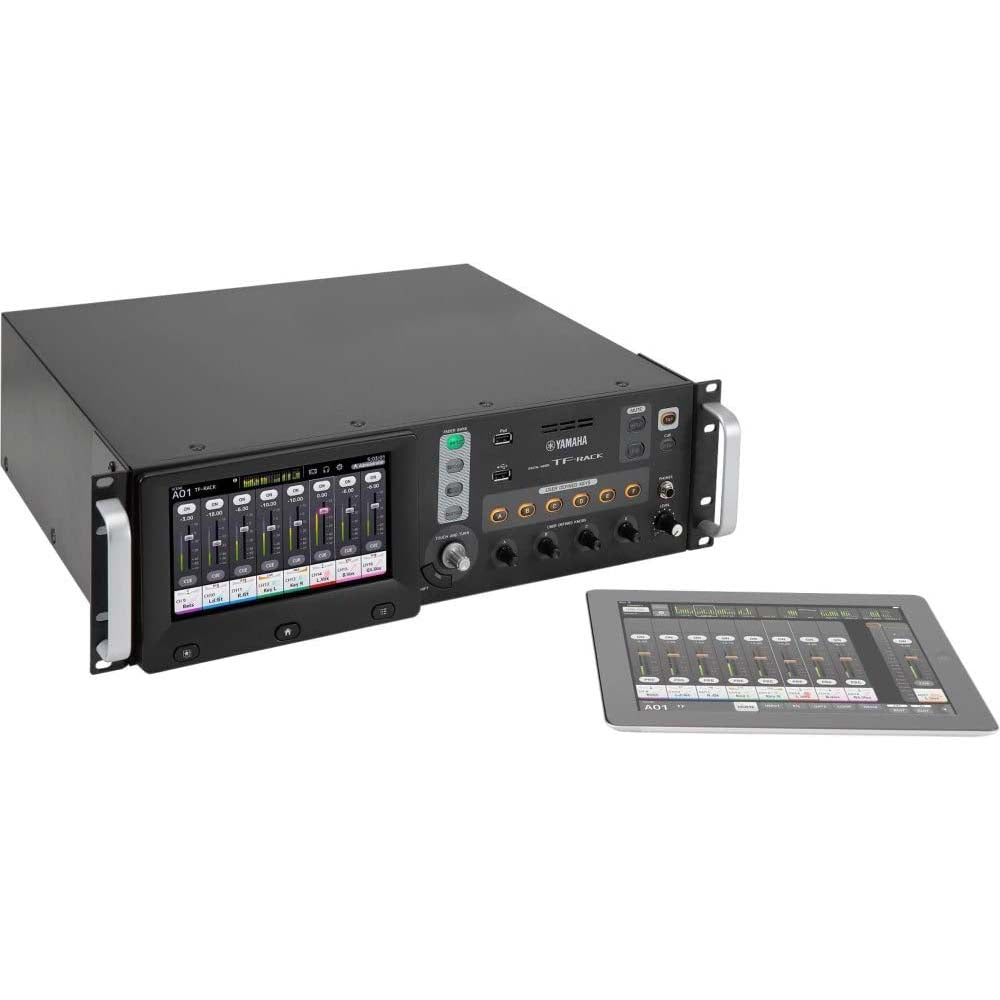

Yamaha TF-Rack 40-channel Digital Rackmount Mixer
