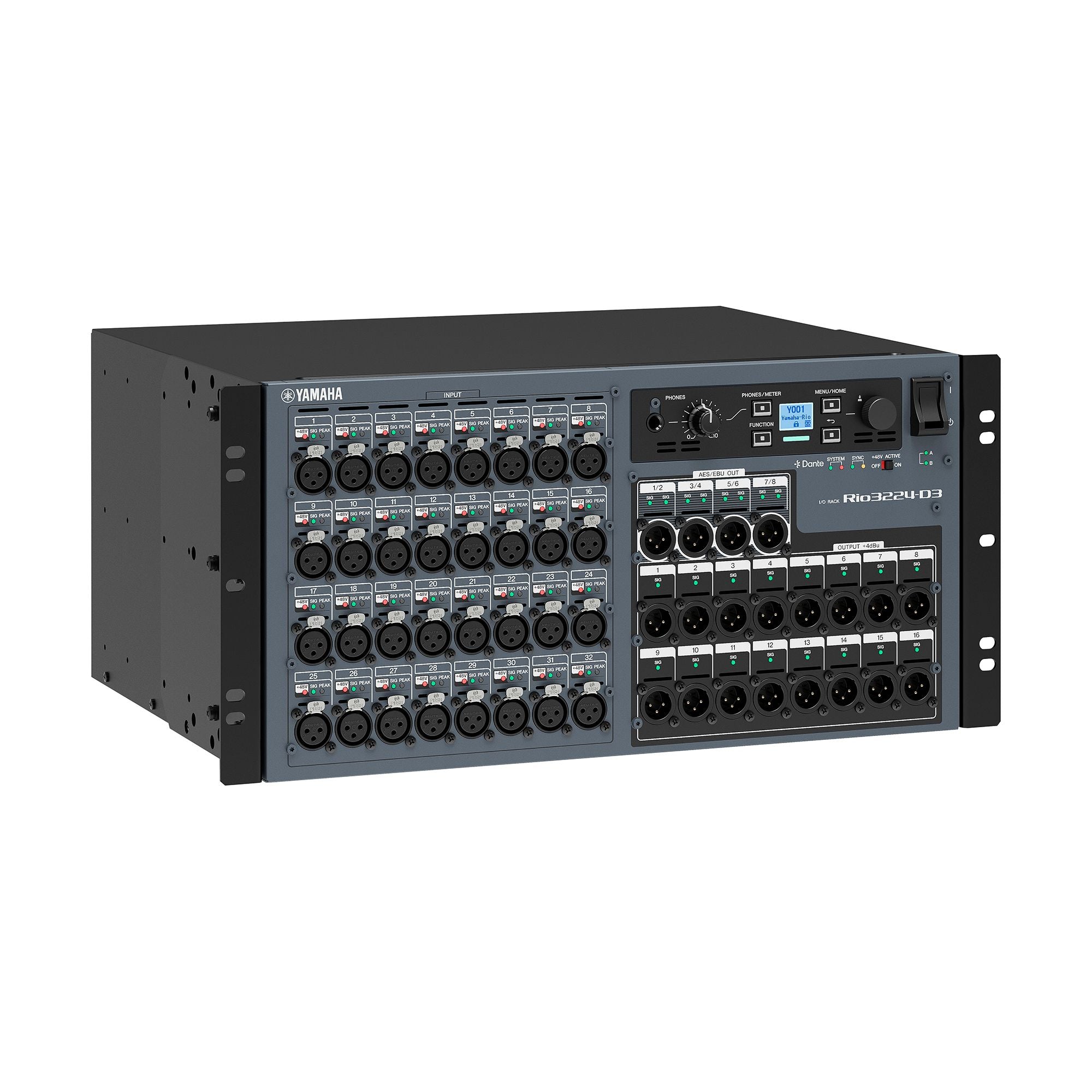

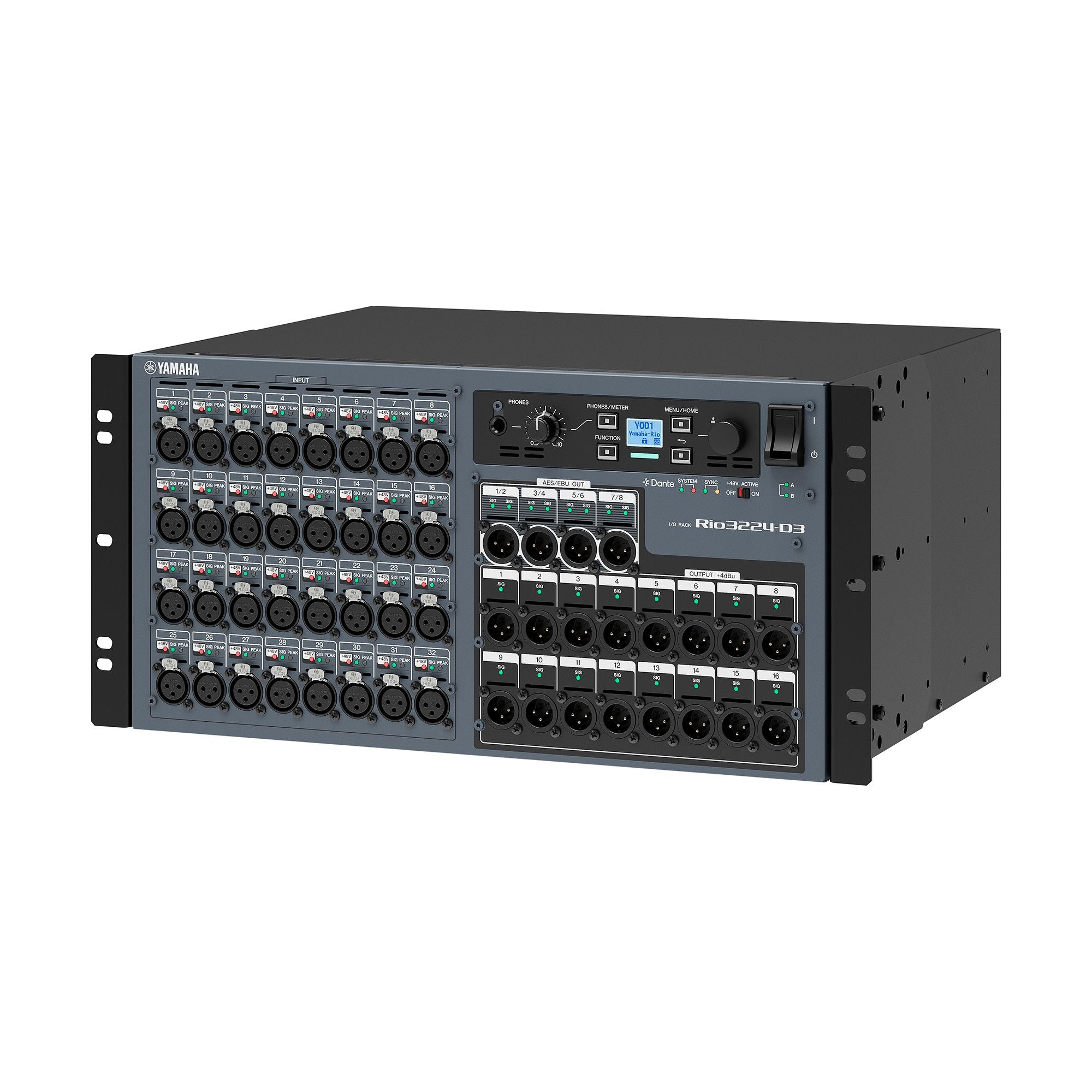

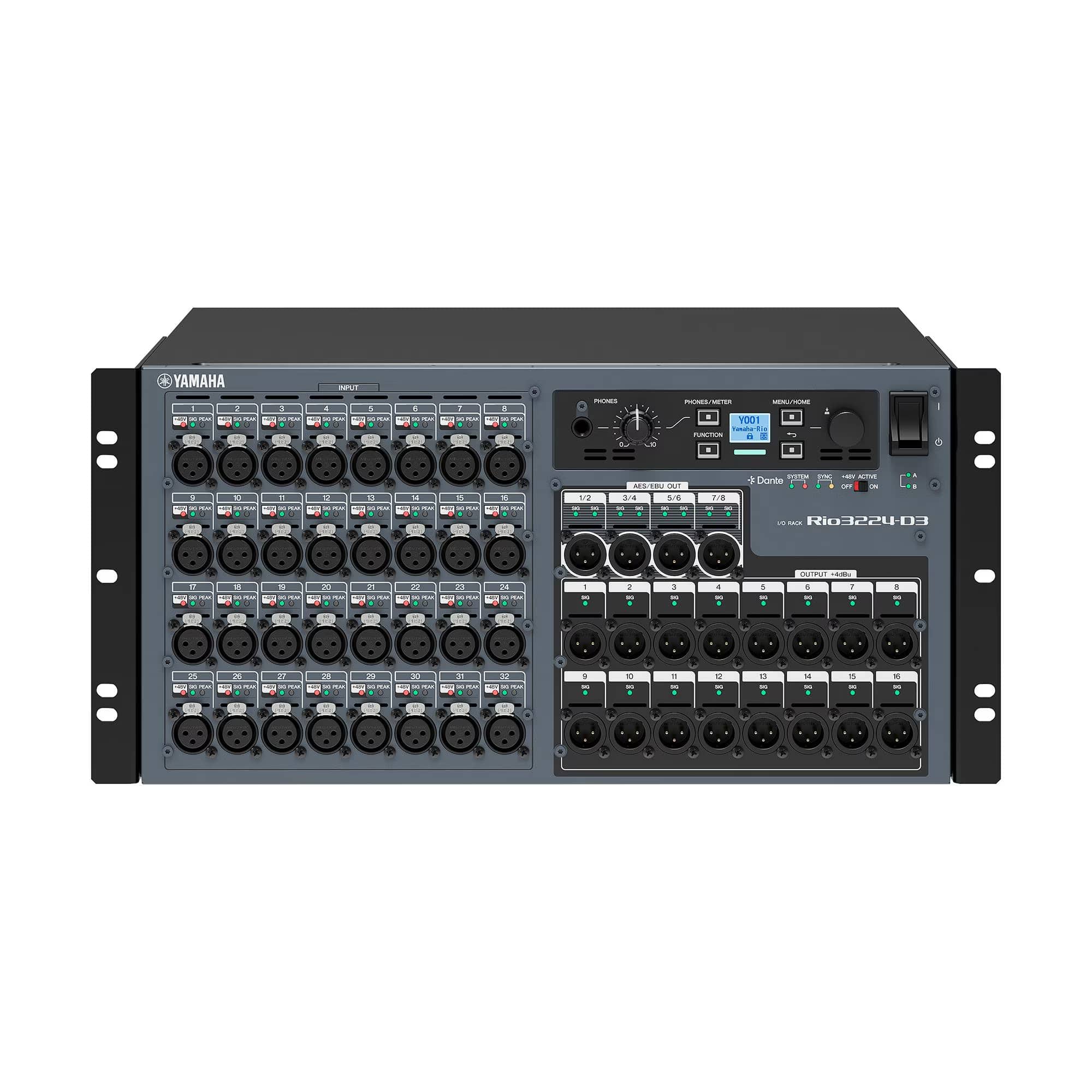

The Rio3224-D3 is a high-performance 32-input x 24-output I/O unit for Yamaha's CL, QL, and RIVAGE PM series consoles. This digital stage box is loaded with 32 pristine head amplifiers (with switchable 48V phantom power for condenser mics) that deliver the transparent, natural sonics Yamaha is known for. The Rio3224-D3 connects directly to a Dante digital audio network, giving you flexible system configuration at up to 96kHz. You also get four stereo AES outputs to expand your connectivity. Enjoy peace of mind, thanks to dual redundant power supplies — you can also daisy-chain connections and you'll benefit from local control of gain and other parameters. Finally, the live sound pros aappreciate how the Rio3224-D3's character display offers easy visual confirmation of your settings.

FEATURES

Discover True Sound

Throughout Yamaha’s history of digital mixer development, we’ve sought to capture every note played, every word spoken, with absolute fidelity at the input stage; sound that reproduces the intricacies, nuance and emotion of a performance with stunning accuracy. This gives audio engineers an ideal sonic foundation to build upon to ensure their sound is delivered and received exactly as intended using the versatile tools of our mixers and processors. The Rio3224-D3 and Rio1608-D3 inherit this legacy of “True Sound” by further diminishing noise levels and delivering sound with an even wider dynamic range than their predecessors.

Valuable Features for Added Convenience

The Rio3224-D3 and Rio1608-D3 I/O racks come equipped with a headphone socket on the main unit allowing users to check the input/output audio locally, which is particularly useful for systems requiring complex network connections.

In addition to local input and output, audio assigned to the two channels behind the Dante receive channel can also be selected as an audio source, enabling usage as a direct line of communication with the sound engineer.

Both models also feature new delay, phase, and level control functions which will provide significantly more flexibility and convenience for RIVAGE PM series system users in particular.

Dante Network Protocol for Flexible System Setup

Audinate’s Dante network protocol offers considerable flexibility and convenience during system configuration and setup in particular, by reducing the number of connections, cabling, and even personnel required for more sizable systems. Dante gives users the freedom to add, and place just about any combination of compatible devices in the most convenient location or position specific to their application. Dante-enabled systems also allow for redundancy that will keep the system running even if a problem with the primary network occurs. Audinate’s user-friendly Dante Controller software makes setting up and managing patching of Dante-enabled devices faster and more efficient.

A separate network port for system monitoring and device control is provided from the Dante network port, giving users additional flexibility when configuring a system specific to a particular venue or application.

In addition to supporting the AES67 standard for audio over IP interoperability, Dante offers other crucial features for professionals, such as Dante Device Lock to prevent unauthorized operation, and the Dante Domain Manager for efficient user authentication and role-based security.*

• Visit the Audinate website for more Dante Domain Manager information.

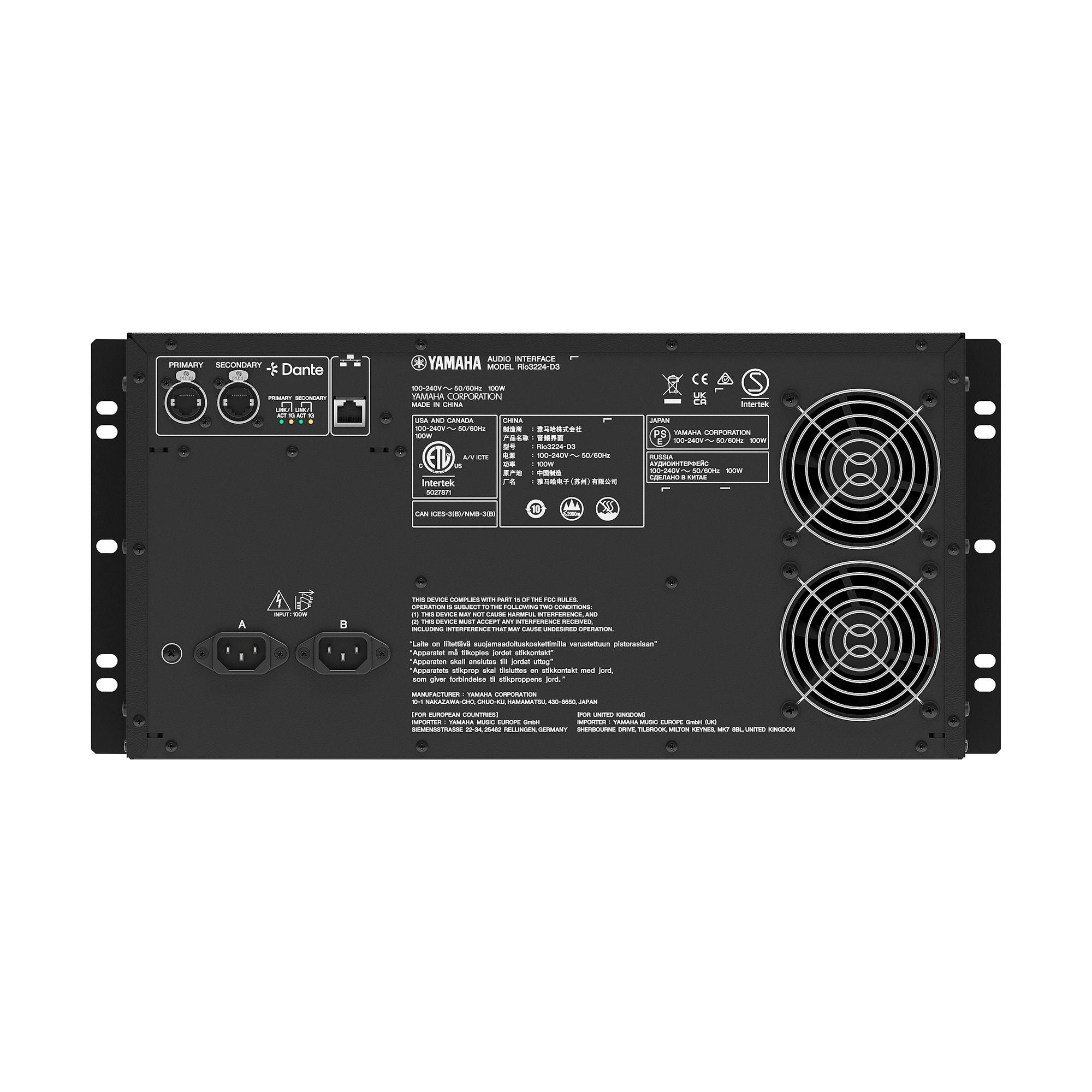

Dual Redundant Power Supplies and Improved, Quiet Operation

I/O device power failure during live operation of a PA system can wreak untold havoc on a performance or event, negatively impacting performers, engineers, and audience alike. Both the Rio3224-D3 and Rio1608-D3 I/O racks feature dual power supply units in order to significantly reduce the likelihood of power loss that would result in downtime during a show. If one power source is compromised, operation will continue unaffected as long as the secondary power source is active. Additionally, a redesign of the internal airflow of each model has resulted in notably quieter operation by reducing fan noise.

Digital Compensation for Analog Gain Changes

When operators using separate mixing consoles connected to one I/O rack make analog gain changes, the results can be unpredictable and often undesirable. To combat the potential for such issues, the Rio3224-D3 and Rio1608-D3 feature a Gain Compensation function that automatically adjusts gain at the digital stage to compensate for analog gain changes from separate consoles, ensuring consistent, worry-free sound.

• Sampling Frequency Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, –0.1%, –4.0% (±200 ppm)
• Signal Delay: Less than 1.7 ms, Rio-D3 INPUT to Rio-D3 OUTPUT connect with DM7 using Dante, Fs=96 kHz. Dante Receive Latency set to 0.25 msec
• Total Harmonic Distortion: Less than 0.05% +4 dBu@20 Hz - 20 kHz, GAIN : -6 dB into 600 Ω, Less than 0.15% +4 dBu@20 Hz - 20 kHz, GAIN: +66 dB into 600 Ω
• Frequency Response: +0.5, –1.5 dB 20 Hz - 20 kHz, refer to +4 dBu output @1 kHz, input to output, Fs= 48 kHz or 96 kHz
• Dynamic Range: 120 dB typ., DA Converter, 115 dB typ., Input to Output, GAIN: -6 dB
• Hum & Noise Level:
  • Equivalent Input Noise: -128 dBu typ., GAIN: +66 dB
  • Residual Output Noise: -93 dBu, main stereo channel off
• Crosstalk: INPUT: -100 dB, adjacent inputs, GAIN: -6 dB, @1 kHz, OUTPUT: -100 dB, input to output, @1 kHz
• Power Requirements: 100 - 240 V, 50/60 Hz
• Power Consumption: 100 W
• Dimensions:
  • Width: 480 mm (18.9")
  • Height: 220 mm (8.7")
  • Depth: 370 mm (14.6")
• Net Weight: 13.2 kg (29.1 lb)
• Input Terminals: INPUT 1-32 (1-16)
  • GAIN: +66 dB, -6 dB
  • Actual Load Impedance: 7.5 kΩ
  • For Use With Nominal: 50-600 Ω Mics & 600 Ω Lines
• Input Level:
  • Sensitivity*1: –82 dBu (0.062 mV), –10 dBu (245 mV)
  • Nominal: -62 dBu (0.616 mV), +10 dBu (2.45 V)
  • Max. before clip: -42 dBu (6.16 mV), +30 dBu (24.5 V)
• Connector: XLR 3-hole chassis (Balanced)*2
• Output Terminals:
  • OUTPUT 1-16 (1-8):
    • Actual Source Impedance: 75 Ω
    • For Use With Nominal: 600 Ω Lines
    • Output Level*1: +4 dBu (1.23 mV) (Nominal), +24 dBu (12.3 mV) (Max before clip)
    • Connector: XLR 3-pin chassis (Balanced)*2
  • PHONES:
    • Actual Source Impedance: 10 Ω
    • For Use With Nominal: 8 Ω Lines, 40 Ω Lines
    • Output Level*1: 60 mW*3, 60 mW*4 (Nominal), 60 mW, 100 mW (Max before clip)
    • Connector: TRS PHONE (6.3 mm) (STEREO PHONE) (Unbalanced)
• Terminals:
  • PRIMARY/SECONDARY:
    • Format: Dante
    • Data Length: 24-bit or 32-bit
    • Level: 1000BASE-T
    • Audio:
      • 32ch (Rio3224-D3 to other devices)
        26ch (Other devices to Rio3224-D3)
      • 16ch (Rio1608-D3 to other devices)
        10ch (Other devices to Rio1608-D3)
    • Connector: etherCON CAT5e
  • AES/EBU 1/2, 3/4, 5/6, 7/8*1:
    • Format: AES/EBU Professional use
    • Data Length: 24-bit
    • Level: RS422
    • Audio: 2ch output
    • Connector: XLR 3-pin chassis (Balanced)*2
