  • Model WRS-8 / WRS-8W
  • System Type 2-Way Passive Speaker Cabinet
  • Standard Loudspeaker for voice alarm systems for fire detection and fire alarm system
  • Environment Type Type B (Outdoor applications)
  • Transducer Low 8" ferrite woofer, 1,2" voice coil
  • Transducer Driver 1" Neodymium Tweeter
  • Rated Noise Power 80W (100V and 70V line)
  • Rated Impedance 100V line: 125Ω (80W) / 250Ω (40W) / 500Ω (20W) / 1.0kΩ (10W) 70V Line: 62Ω (80W) / 125Ω (40W) / 250Ω (20W) / 500Ω (10W) Bypass: 8 Ohms
  • Sensitivity 500Hz-5kHz pink noise: 87dB (1W, 1m) 100Hz-10kHz pink noise, according to EN54-24: 75dB (1W, 4m) 100Hz-10kHz pink noise, converted based on EN54-24: 87dB (1W, 1m)
  • Max SPL 100Hz-10kHz pink noise, according to EN54-24: 92dB (80W, 4m) 100Hz-10kHz pink noise, converted based on EN54-24: 105dB (80W, 1m)
  • Coverage Angle (H x V) 500Hz: 162° x 140° / 1kHz:114° x 123° / 2kHz: 171° x 52° / 4kHz: 131° x 97°
  • Protection Rate IP55
  • Cable Connection Steatite terminal x 2 speaker cable (Ø 6.6mm)
  • Finish Enclosure : ABS + PC / Mesh speaker grill : surface-treated steel plate Speaker Wall bracket: surface-treated steel plate, painted joint bracket, screw and stainless steel cable
  • Dimensions (HxWxD) 406 x 250 x 251 mm / 16” x 9.8” x 10”
  • Net Weight 6.4 kg (14.1 lbs)

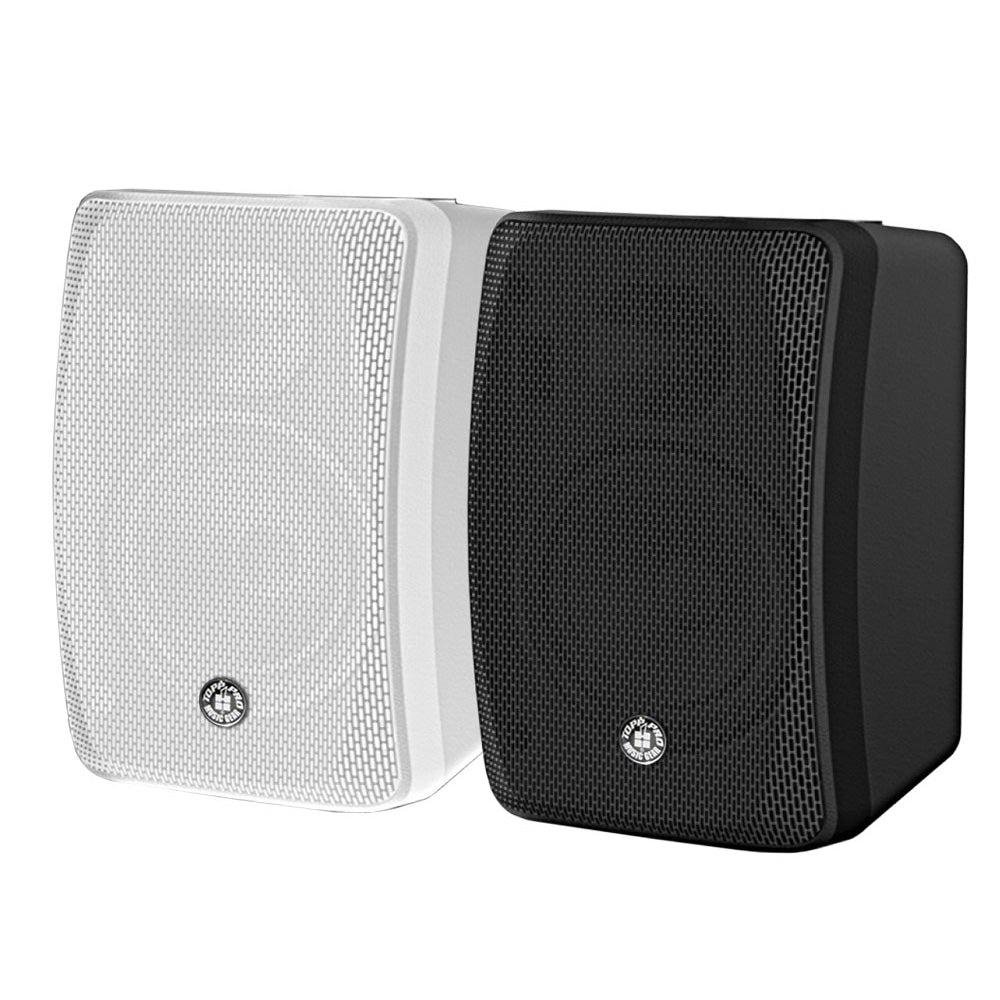

Topp Pro INSTALL WRS-8 2-Way Passive Speaker Cabinet

Regular price $159.00

  • Amazon
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
SPECIFICATIONS:
  • Model WRS-8 / WRS-8W
  • System Type 2-Way Passive Speaker Cabinet
  • Standard Loudspeaker for voice alarm systems for fire detection and fire alarm system
  • Environment Type Type B (Outdoor applications)
  • Transducer Low 8" ferrite woofer, 1,2" voice coil
  • Transducer Driver 1" Neodymium Tweeter
  • Rated Noise Power 80W (100V and 70V line)
  • Rated Impedance 100V line: 125Ω (80W) / 250Ω (40W) / 500Ω (20W) / 1.0kΩ (10W) 70V Line: 62Ω (80W) / 125Ω (40W) / 250Ω (20W) / 500Ω (10W) Bypass: 8 Ohms
  • Sensitivity 500Hz-5kHz pink noise: 87dB (1W, 1m) 100Hz-10kHz pink noise, according to EN54-24: 75dB (1W, 4m) 100Hz-10kHz pink noise, converted based on EN54-24: 87dB (1W, 1m)
  • Max SPL 100Hz-10kHz pink noise, according to EN54-24: 92dB (80W, 4m) 100Hz-10kHz pink noise, converted based on EN54-24: 105dB (80W, 1m)
  • Coverage Angle (H x V) 500Hz: 162° x 140° / 1kHz:114° x 123° / 2kHz: 171° x 52° / 4kHz: 131° x 97°
  • Protection Rate IP55
  • Cable Connection Steatite terminal x 2 speaker cable (Ø 6.6mm)
  • Finish Enclosure : ABS + PC / Mesh speaker grill : surface-treated steel plate Speaker Wall bracket: surface-treated steel plate, painted joint bracket, screw and stainless steel cable
  • Dimensions (HxWxD) 406 x 250 x 251 mm / 16” x 9.8” x 10”
  • Net Weight 6.4 kg (14.1 lbs)
