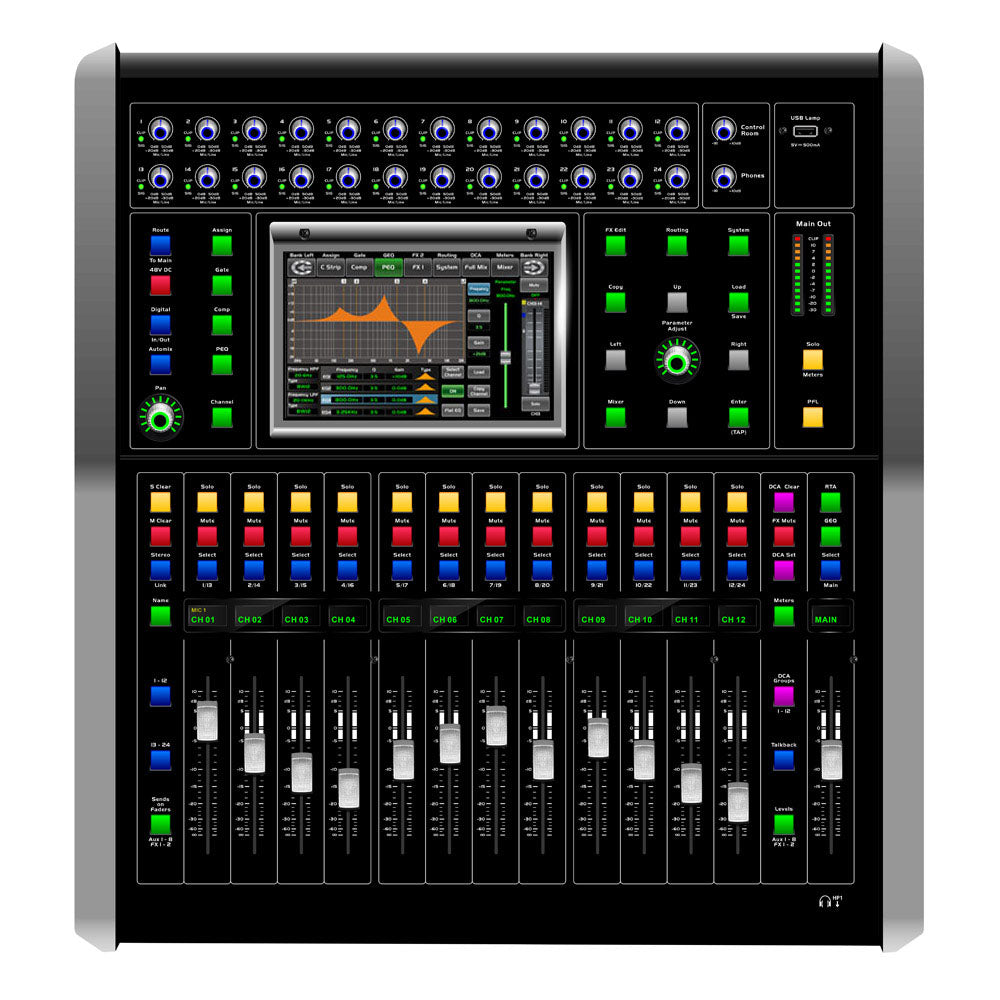

Topp Pro DM24.8 Digital Mixer with touch screen. This is an open box display model, brand new!

  • 7” LCD Touch Screen
  • 13 Motorized Faders
  • Dante or USB Multichannel Options
  • Microphone input: Electronically balanced
  • Frequency Response to Main Output: 22Hz ~ 20Hz at 0dBu ±1.5dBu
  • Distortion (THD&N) to Main Output: <0.01% at 0dBu 1KHz
  • Gain: 0dBu ~ 50dBu
  • SNR (Signal to Noise Ratio): 111dB
  • Maximum Input Level: +20dBu ±0.5dBu
  • Phantom Power (+/-3V): +48VDC
  • Line Input: Electronically balanced
  • Frequency Response to Main Output: 22Hz ~ 22KHz at 0dBu ±1.5dBu
  • Distortion (THD&N) to Main Output: <0.01% at 0dBu 1KHz
  • Gain: -20dBu ~ +30dBu
  • Maximum Input Level (Gain at 0dBu): +20dBu ±0.5dBu

USB stereo inputs

  • Frequency Response to Main Output: 22Hz ~ 22KHz at 0dBu±1.5dBu
  • Distortion: (THD&N) to Main Output <0.01% at 0dBu 1KHz
  • Maximum Input Level: 10dBu ±0.5dBu

Main Outputs

  • Maximum Outputs Level: +20dBu ±0.5dBu
  • AUX SEND (XLR)
  • Maximum Output Level: +20dBu ±0.5dBu
  • AUX SEND (1/4" TRS)
  • Maximum Output Level: +20dBu ±0.5dBu
  • Control Room Outputs
  • Maximum Output Level: +20dBu ±0.5dBu
  • Headphones Level
  • Maximum Output Level: +15dBu ±0.5dBu

System Crosstalk

  • Input to Output (at + 0dBu 1KHz): -88dBu
  • Adjacent Channels (at + 0dBu 1KHz): -87dBu
  • Noise: (Bus noise)
  • Noise Gate: -91dBu

Threshold Range

  • Attack time: -84dBu ~ +20dB
  • Release time: 0.5mS ~ 200mS
  • Compressor: 10mS~1S
  • Threshold Range: -30dBu - +20dB
  • Attack time: 10mS ~ 150mS
  • Release time: 10mS ~ 1S
  • Ratio: 1:1 to Limit
  • Gain: 0dBu - +24dB

EQ

  • Low (LowPass or LowShelf): 21Hz ~ 19.2KHz +/- 24dB
  • Low Mid: 21Hz ~ 19.2KHz +/- 24dB
  • High Mid: 21Hz ~ 19.2KHz +/- 24dB
  • High (HighPass or HighShelf): 21Hz ~ 19.2KHz +/- 24dB

Digital Audio

  • ADC Dynamic Range: 114dB
  • DAC Dynamic Range: 114dB
  • Internal Processor: 32-bit , floating point
  • ADC, DAC bit depth: 24bit

Impedances

  • Microphone input: 6.8 KOhms
  • Line input: 75K
  • Stereo input: 27K
  • All other output: 240 Ohms
  • Operating free-air temperature range: 0ºC ~ 40ºC
  • Storage temperature range: -20ºC ~ 45ºC
  • Dimensions: 528x526x172mm
  • 24 line level inputs
  • 8 Aux sends
  • 2 internal FX
  • 1 stereo main out
  • All channels Control Room outputs
  • 1 headphone output
  • 13 units of 100mm precision motor fader
  • 24 bit / 48kHz sampling rate
  • digital noise gate
  • digital 4 band full parametric EQ
  • PAN
  • phase reverse
  • Time delay
  • DCA for Digital Control Audio or Mute
  • Lock and unlock function, change the password
  • Program, save, load & copy functions
  • Remote Control :Ethernet or USB
  • iPad App DM24.8 editor for wireless control
  • 7 inch color LCD touch screen for graphical view and setup
  • 1
  • 24 microphone preampliers with dedicated trim control

Topp Pro DM24.8 Digital Mixer with LCD Touch Screen
