Shure P3TRA215TWP PSM300 Twinpack Wireless In-ear Monitor System

DESCRIPTION
SPECIFICATIONS
VIDEO

DESCRIPTION

PSM®300 Stereo Personal Monitor Systems deliver reliable wireless freedom to every corner of the stage. Patented Audio Reference Companding ensures the clearest sound, ultra-low noise, and no artifacts.

Easy to set up and operate, PSM 300 systems offer one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two audio channels.

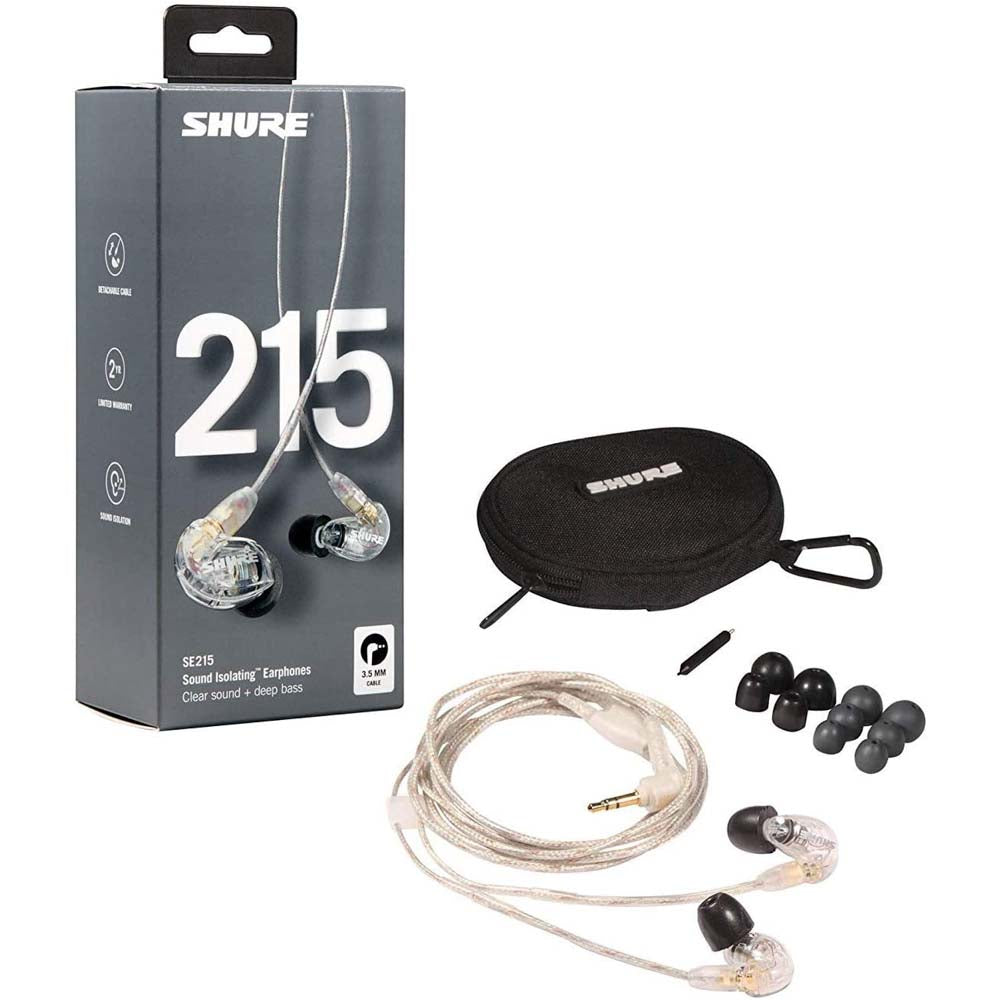

The PSM 300 Twin Pack Pro is the ideal monitoring solution for up to two performers that provides a convenient, durable metal construction multi-bodypack system-in-a-box (optional use with SB900A rechargeable battery) with SE215 Sound Isolating earphones designed for clear, precise stereo mixes on stage.

SPECIFICATIONS

Performance

Frequency Range: G20: 488-512 MHz
RF Output Power:

10, 20, 30 mW
Note: varies by region

RF Output Impedance: 50 Ohms (typical)
Transmission Range: 300' (90 m)

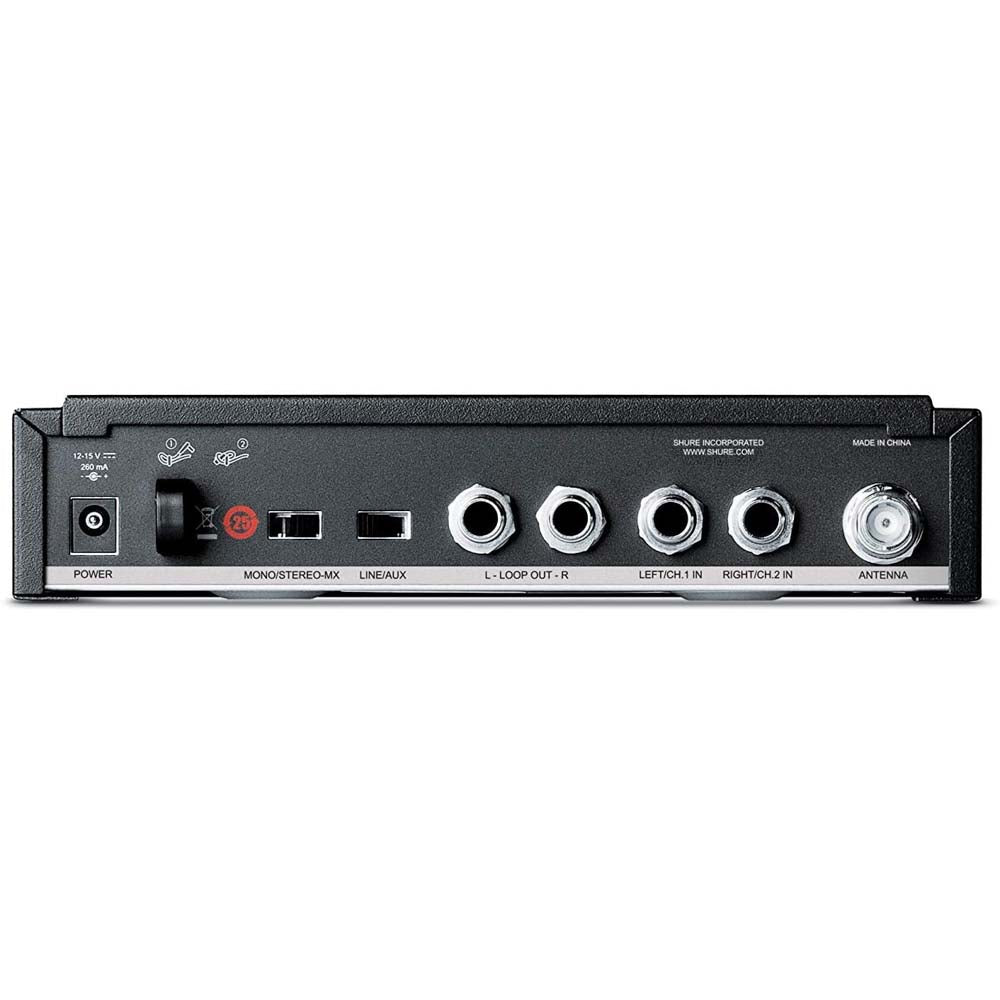

Audio Input

Connector Type: 1/4" TRS (6.35 mm)
Polarity: Tip positive concerning ring
Configuration: Electronically balanced
Impedance: 40 kOhms (actual)
Nominal Input Level: Switchable, +4 dBu, -10 dBV
Maximum Input Level:

+4 dBu: +22 dBu
-10 dBV: +12.2 dBu

Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection: Up to 60 VDC

Audio Output

Connector Types: 1/4" TRS (6.35 mm)
Configuration: Electronically balanced
Impedance: Connected directly to inputs

General

Antenna: 1/4 wave, detachable
Power Requirement: 12 to 15 VDC, 260 mA maximum
Dimensions (H x W x D): 1.7 x 7.8 x 6.8" (43 x 198 x 172 mm)
Net Weight: 27.6 oz (783 g)
