- DESCRIPTION
- CHARACTERISTICS

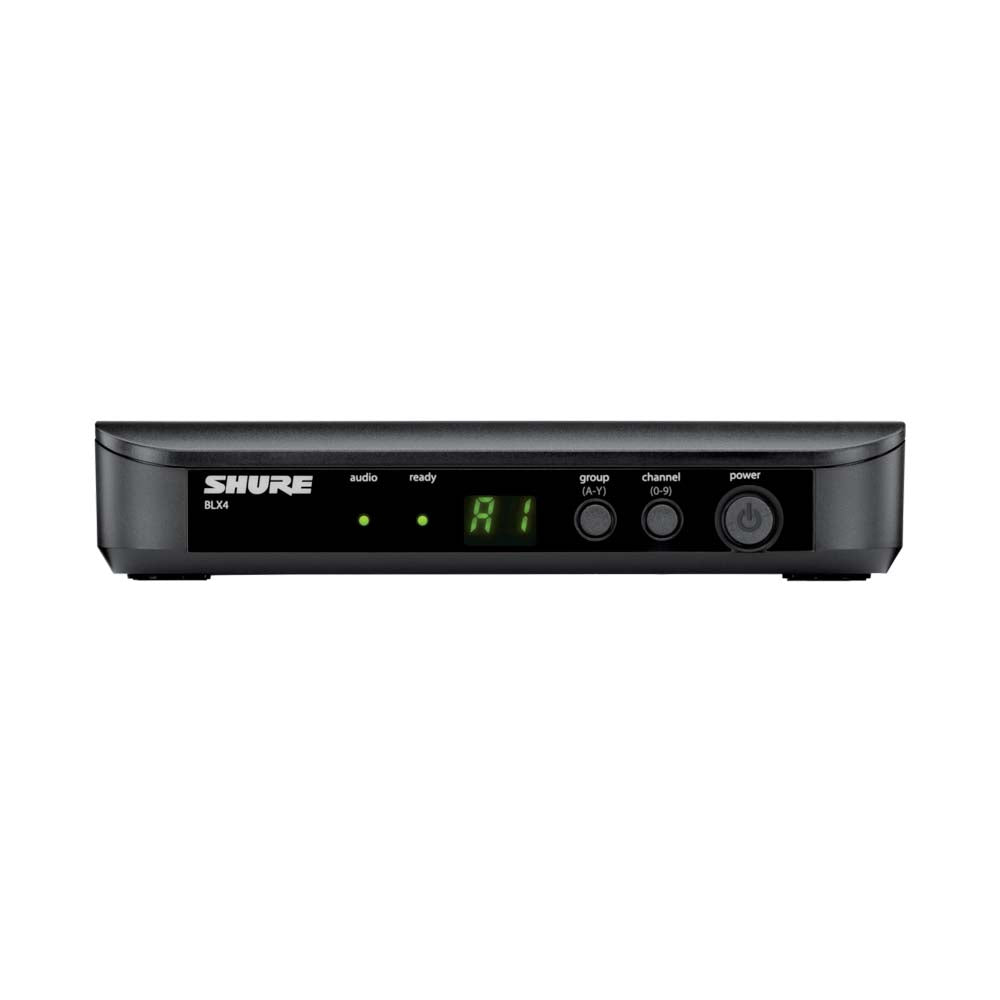

The Shure BLX24/PG58 brings performers and presenters a cost-effective wireless handheld microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the compact and lightweight BLX4 single-channel tabletop receiver with internal antennas, ideal for portable use.
The BLX24/PG58 also includes a handheld transmitter equipped with an integrated PG58 dynamic cardioid microphone capsule. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.
This streamlined system is well suited for live performances and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.
Wireless Transmission | Analog UHF |
Number of RF Channels | 123 |
Included Transmitters | 1 x Handheld |
Diversity | Antenna Diversity |
RF Frequency Band | H9: 512 to 542 MHz |
RF Bandwidth | 24 MHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 300' / 91.4 m (Line of Sight) |
Max Systems per Setup | 12 |
Dynamic Range | 100 dBA |
Form Factor | Tabletop |
Antenna | 2 x Internal |
Number of Audio Channels | 1 |

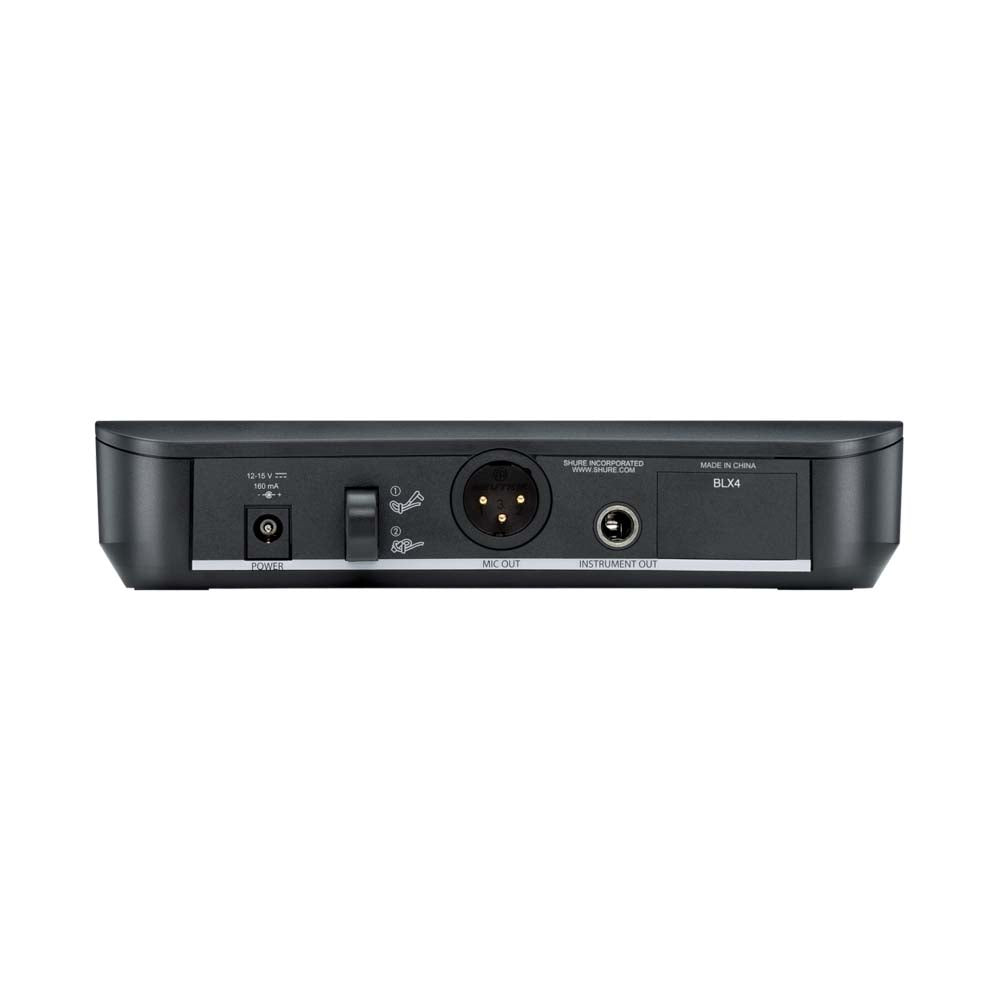

Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TS Female Unbalanced Output |
Audio Output Level | XLR Output: -27 dBV (Mic Level) 1/4" Output: -13 dBV (Instrument Level) |
Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
Impedance | XLR Output: 200 Ohms 1/4" Output: 50 Ohms |
Power Requirements | AC/DC Power Adapter |
AC/DC Power Adapter | 12 to 15 VDC at 160 mA, Center-Positive (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 2 x LED (AF Level, Sync) |
Housing | ABS |
Operating Temperature | 0 to 135°F / -17 to 57°C |
Dimensions | 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm |
Weight | 8.5 oz / 241 g |
Form Factor | Handheld |
RF Output Power | 10 mW |
Audio I/O | None |
Muting | Off/On Switch |
Auto-Level Control | No |
Gain Range | -20 to -10 dB |
Sync Method | Manual |
Antenna | 1 x Internal (Handheld) |
Power Requirements | Battery |
Battery Type | 2 x AA (Included) |
Approx. Battery Life | 14 Hours (Alkaline) |
Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 1 x LED (Battery Status, Power) |
Housing | ABS |
Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
Weight | 7.7 oz / 218 g (without Batteries) |
Form Factor | Handheld Capsule |
Sound Field | Mono |
Capsule | Dynamic |
Polar Pattern | Cardioid |
Frequency Range | 50 Hz to 16 kHz |
Sensitivity | -55 dBV/Pa at 1 kHz |
Shure BLX24/PG58 Wireless Microphone System
