The ultimate high-tier, high channel count wireless receiver, Shure ANX4 receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space. Delivering maximum flexibility, ANX4 does not ship preconfigured with active wireless channels, allowing you the opportunity to purchase channels in single- and four-channel increments and activate the exact number of channels you need. Licenses can be activated in one ANX4 and later removed and activated in a different ANX4 as needs change. ANX4 channel licenses are perpetual licenses, not subscription-based licenses, and can be purchased through the same authorized suppliers ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account. All the exceptional features found in award-winning Axient Digital and ULX-D receivers that have made them standards on stages, in facilities, on tour, and on location throughout the world are available in the ANX4**. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximizes your budget, rack space, and rack weight in delivering large wireless audio channel counts in a single rack design. What’s more, this 1RU format also enables streamlined antenna configurations for large channel count environments. *Channel licenses are sold separately and required for activating audio outputs. **System features are dependent upon activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems at one time).

FEATURES

  • Requires ANX4 Channel License
  • Up to 16 Axient and 24 ULX-D Channels
  • Scalable Channel Count
  • Compact Single Rack Space
  • Streamlined Design with 4 Antenna Jacks
  • Network and Dante Compatible
  • High-Density Mode Supported
  • Controllable via WWB and ShureCloud
  • 256-Bit AES Encryption
  • Includes BNC Cables and Ethernet Cable
  • Spurious Rejection: >80 dB, typical
  • Connector Type: BNC
  • Impedance: 50 Ω
  • Configuration: Unbalanced, passive
  • Bias Voltage: 12 to 13.5 V DC, 150 mA maximum, per antenna. Switchable on-off.
  • Insertion Loss: 0 dB, typical
  • RF Carrier Frequency Range: 174 – 2000 MHz
  • Working Range: 100 m (330 ft) (Note: Actual range depends on RF signal absorption, reflection, and interference.)
  • Gain Adjustment Range: -18 to +42 dB in 1 dB steps (plus Mute setting)
  • RF Tuning Step Size: 25 kHz, varies by region
  • Image Rejection: > 90 dB, typical
  • RF Sensitivity: ULX-D: -95 dBm at 10-5 BER, Axient Digital: -93.5 dBm at 10-5 BER
  • Latency:
    • ULX-D Standard: < 2.9 ms
    • ULX-D High Density: < 3.2 ms
    • Axient Digital Standard: < 2.1 ms
    • Axient Digital High Density: < 3.0 ms
  • Audio Frequency Response: 20 – 20 kHz (±1 dB)
  • Audio Dynamic Range: 124 dB A-weighted
  • Total Harmonic Distortion: < 0.1%
  • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
  • Audio Frequency Response: 20 – 20 kHz (±3 dB)
  • Configuration: ¼-inch / 6.3 mm connector, unbalanced stereo
  • Impedance: 63 Ω
  • Maximum Signal Level: 350 mW
  • Pin Assignments: Tip: Audio +, Left Ring: Audio + Right Sleeve: Ground

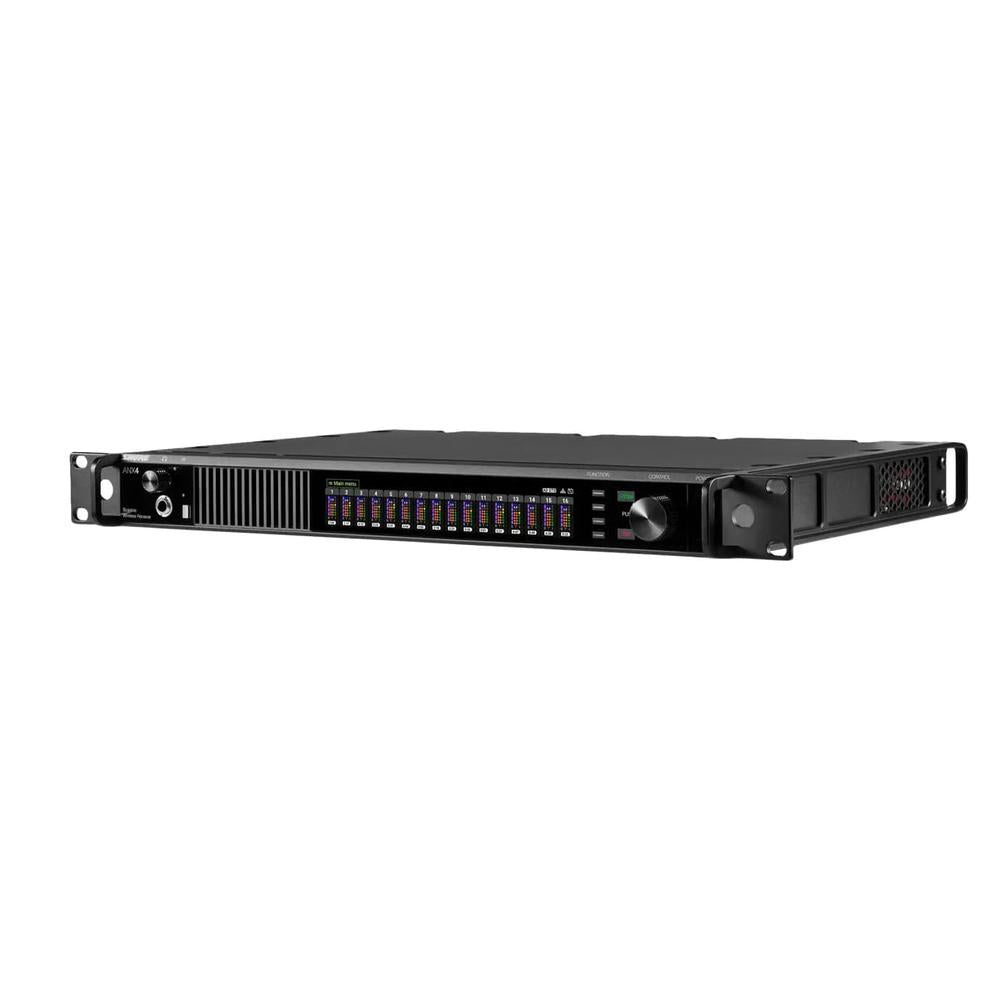

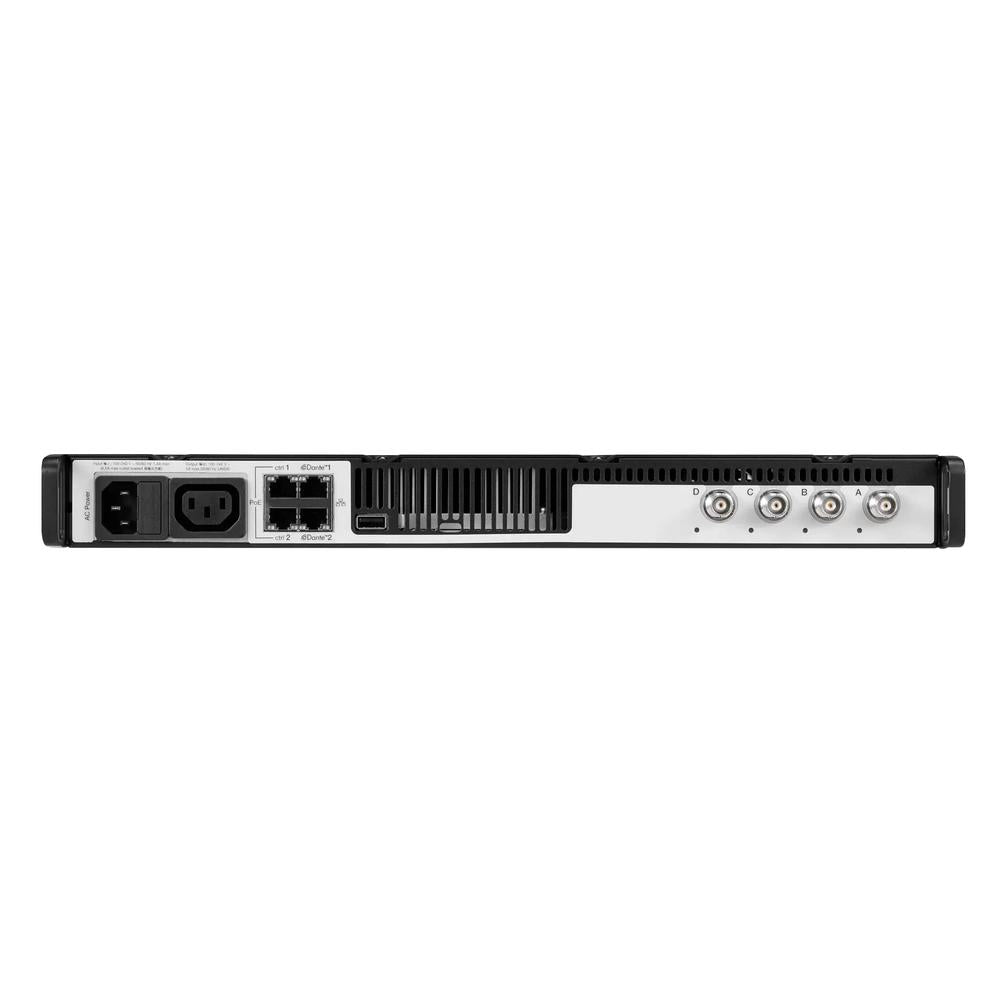

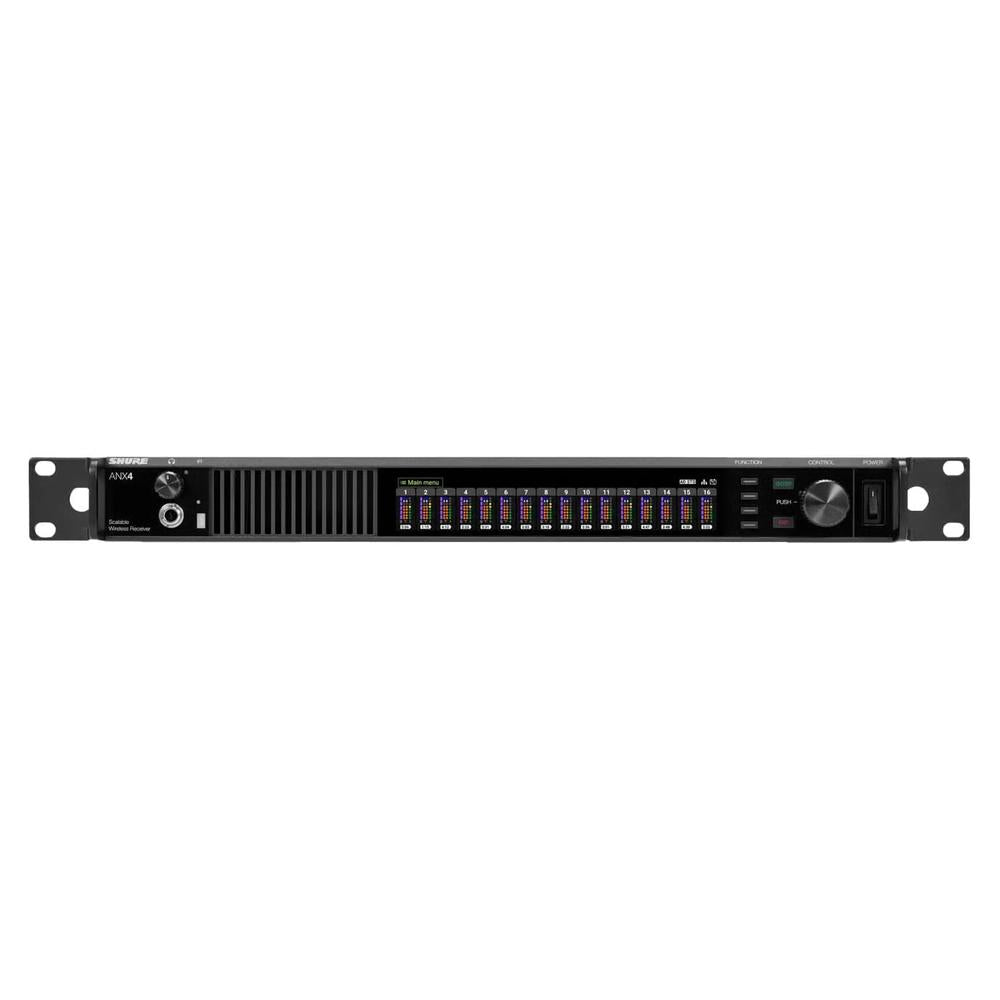

Shure ANX4 Multi-Channel Wireless Receiver (174 MHz to 2 GHz)
