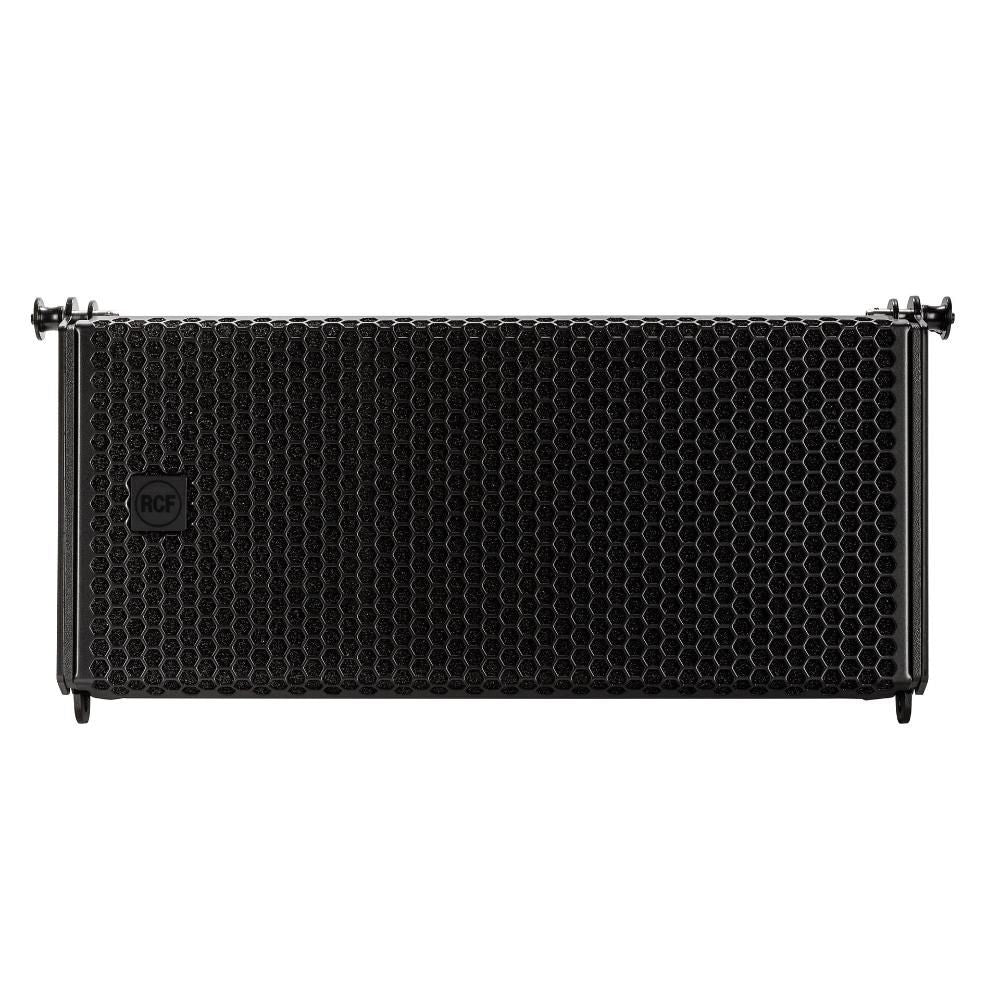

Audio engineers and system installers in search of a compact line array system should check out the RCF HL 6, a lightweight, 2-way line array module that's ideal for live sound applications, including corporate environments, music venues, and houses of worship as well as touring companies and rental houses. The HL-6 requires a recommended 500W amplifier to power the dual 6" woofers and 1.75" compression driver, which combine for a 65 Hz to 20 kHz frequency range and an SPL of 131 dB.

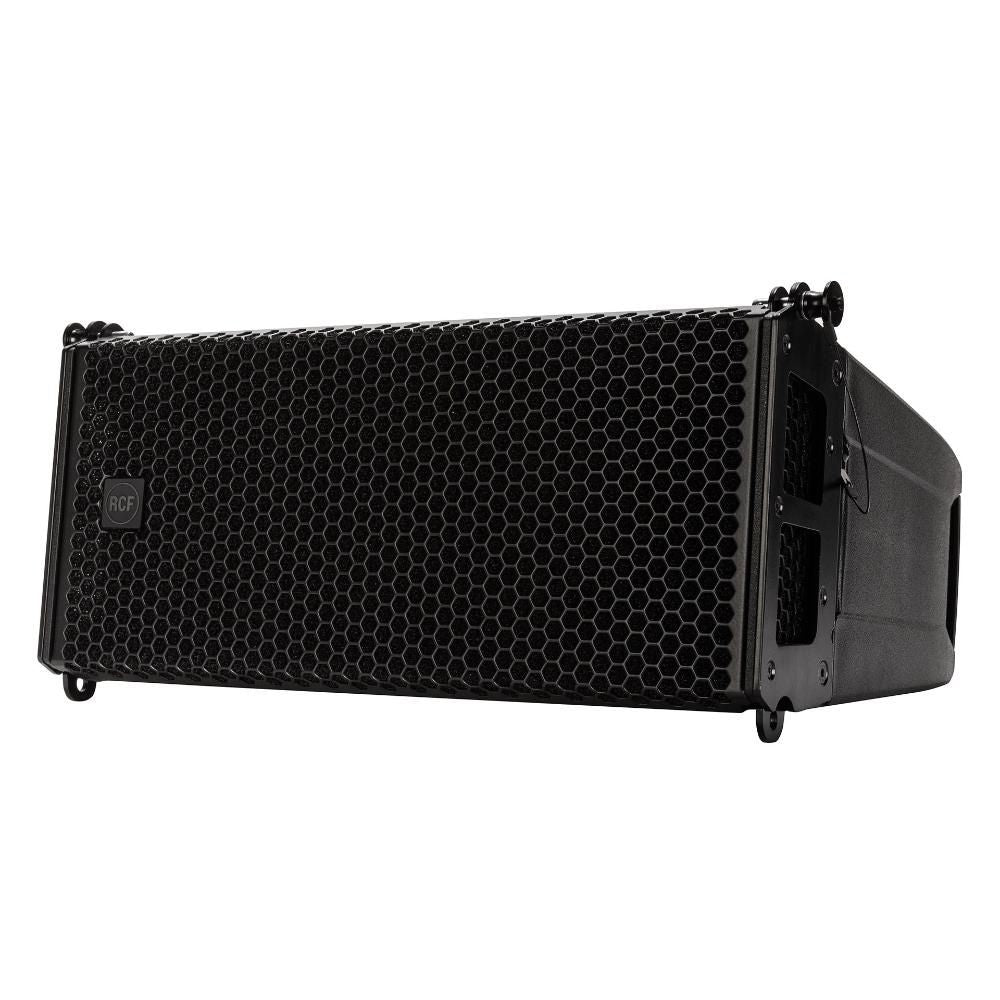

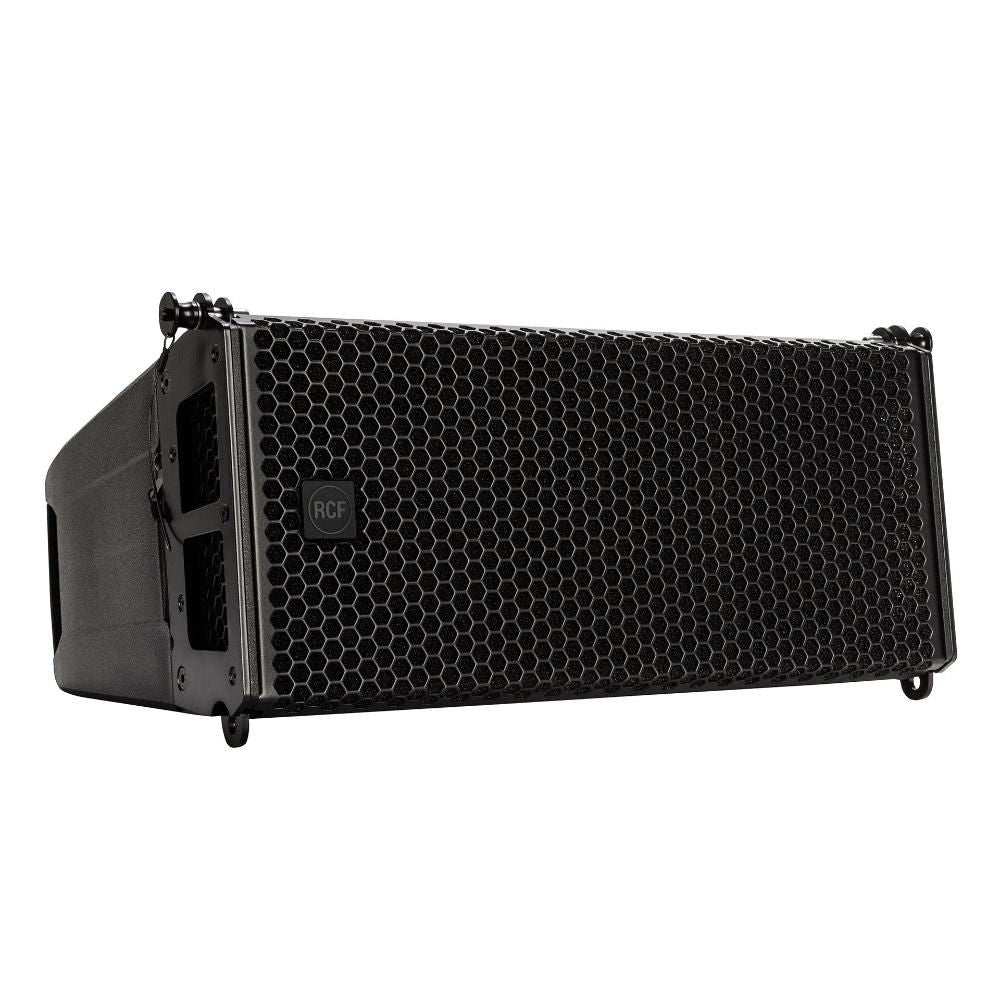

Due to its symmetrical design, the HL 6 produces constant coverage without break up or attenuation, maintaining intelligibility, definition, and signal strength over distance. HL 6 features a structurally wooden reinforced polypropylene composite enclosure, and it is equipped with two rear handles for portability.
FEATURES
Precision TransducersThe RCF HL 6 features RCF transducers with neodymium magnets. RCF’s experienced engineering teams have specially developed and matched each component. An entire set of protections preserve product life and reliability.
High frequencies
- High-performance RCF ND840 1.75-inch diaphragm neodymium compression driver
- 900 Hz crossover point
Low frequencies
- Two 6” neodymium woofers
- Low frequencies handling down to 65 Hz
- Water resistant fiber doped cone
- Polycotton M-roll surround
- Hypervented magnetic structure
The custom-designed waveguide allows a precise coverage of 100 x 10°, while also delivering a completely linear high-frequency response. The constant directivity waveguide delivers consistent coverage from 900 Hz to the highest audible frequencies.
Perfect for Installation
The passive architecture makes the HL 6 one of the lightest line array modules on the market. Combined with flexible rigging options and a wide range of accessories, it's the ideal line array for installation both in corporate environments, and music venues. HL 6 provides plenty of sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
Advanced Design
- The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at 1° angle.
- The hardware is designed for easy and fast setup. Up to 16 HL 6 modules can be fastened on a single flybar.
- The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.
HL 6's Low-Frequency Companion
Perfect for keeping the floor clear and maximizing the efficiency and coherence of the array, the low-frequency companion designed for the HL 6 is the high-performance flyable single 15" HL 35-S. The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6 lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. HL 35-S provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
- Speaker Type: Passive Line Array Loudspeaker
- Configuration: 2-Way
- Enclosure Type: Bass-Reflex
- Total Passive Power Handling: 250 W RMS / 1000 W Peak, 500 W Program
- Constant Voltage / Transformer Taps: No
- Nominal Impedance: 16 Ohms
-
LF Driver:
- 2x 6" / 15.2 cm Woofer
- Voice Coil: 2" / 50.8 mm
- Magnet: Neodymium
-
HF Driver:
- 1x 1" / 25.4 mm Horn-Loaded Compression Driver
- Voice Coil: 1.75" / 44.45 mm
- Magnet: Neodymium
- Frequency Range/Response: 65 Hz to 20 kHz (-10 dB)
- Maximum SPL: 131 dB
- Coverage Angle: 100° H x 10° V
- Crossover Frequency: 900 Hz
- EQ & Filters: No

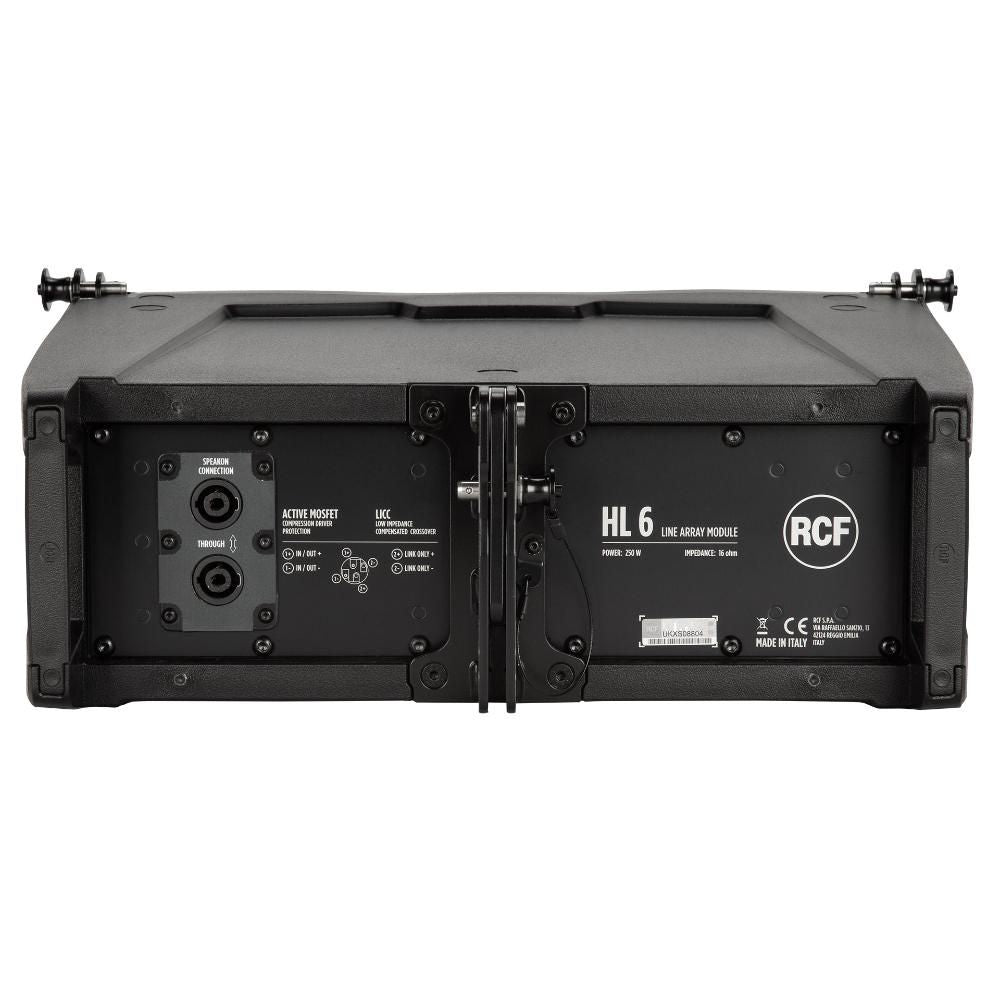

- Audio I/O: 1x speakON Input, 1x speakON Output
- Color: Black
- Mounting: Integrated Rigging
- Handles: 2x Rear
- Construction Material: Polypropylene, Steel, Wood
- Environmental Resistance: No
- Dimensions: 18.5 x 14.8 x 9.3" / 469.9 x 375.9 x 236.2 mm
- Weight: 26 lb / 11.8 kg
RCF HL 6 Passive 2-Way Dual 6" Line Array Module (Black)
