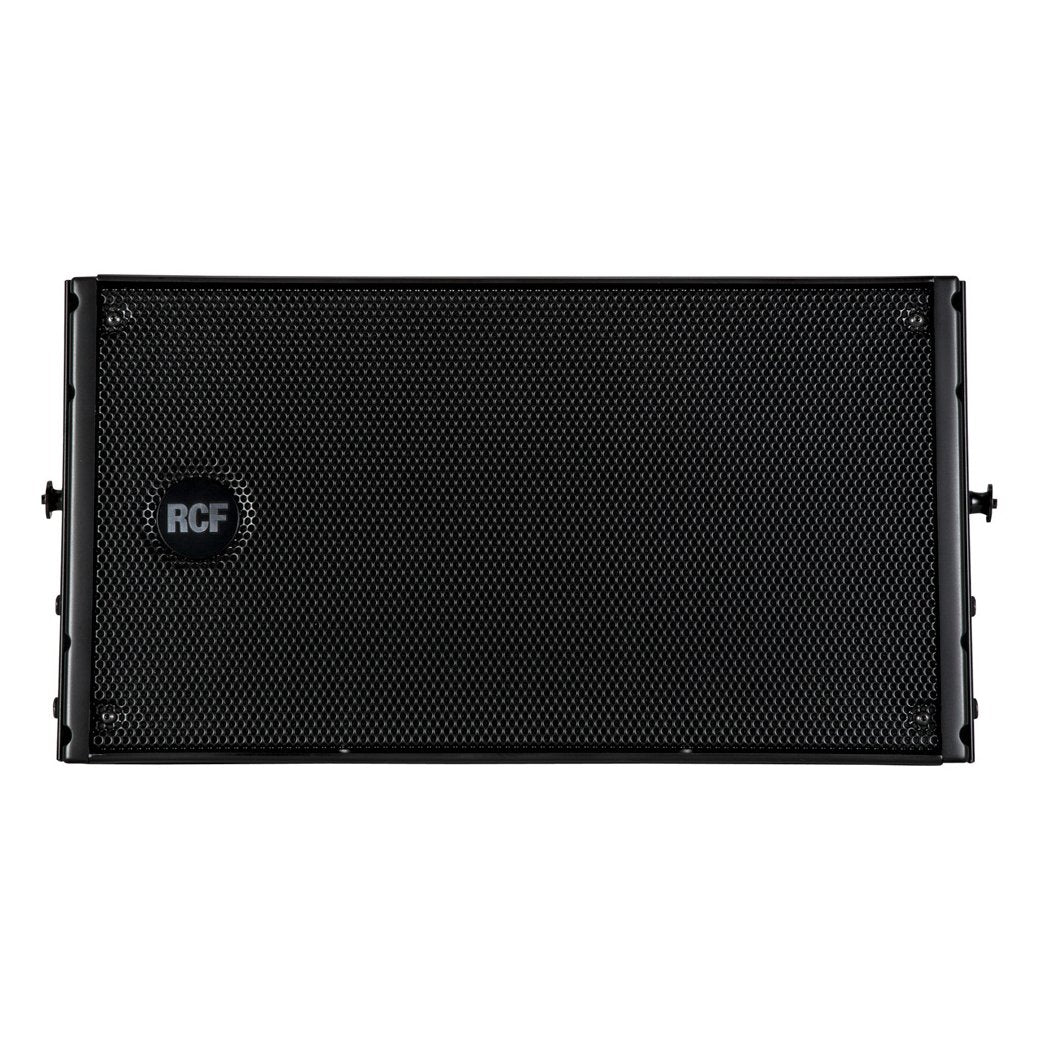

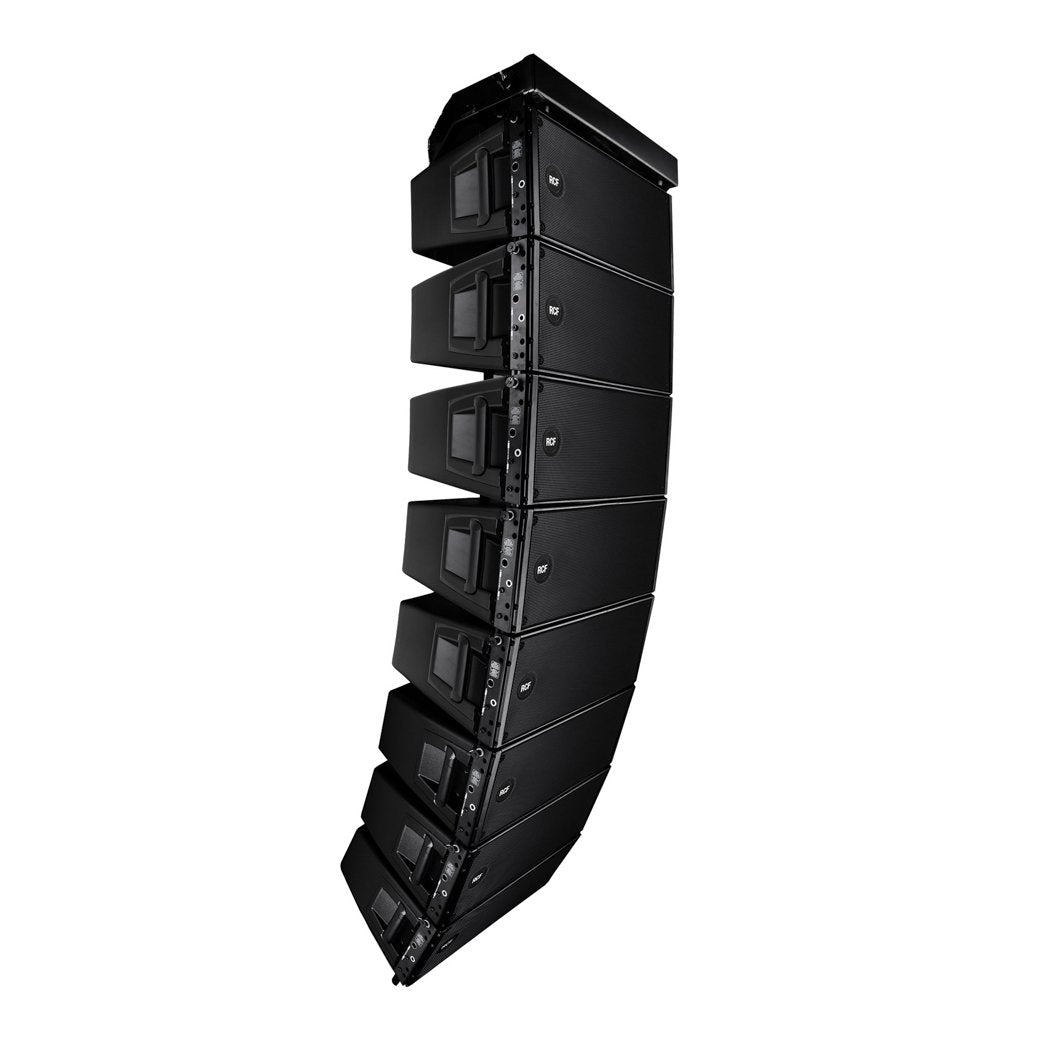

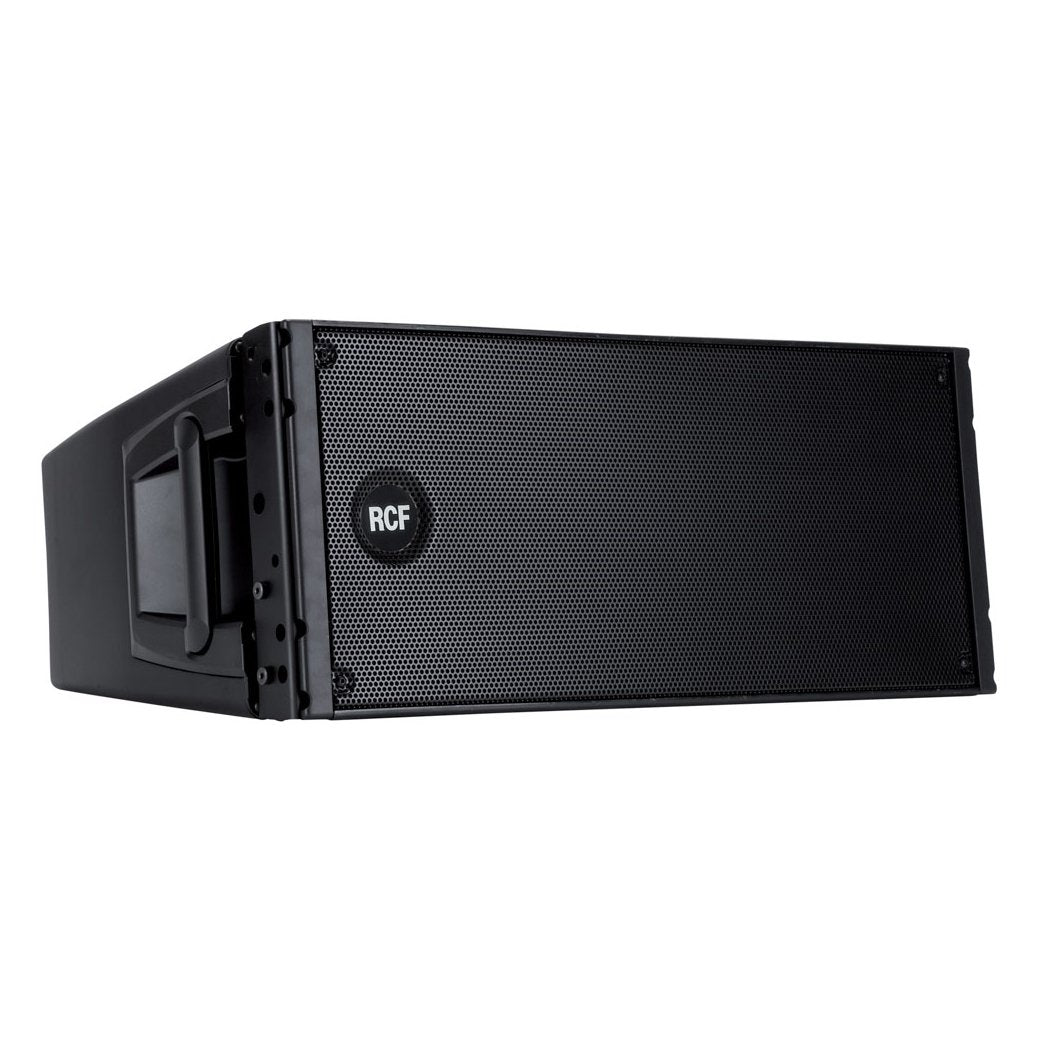

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations.

The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system.

  • 1400 Watt Peak power - 700 Watt RMS
  • 135 dB max SPL
  • 55 Hz 20 kHz frequency response
  • 2 x 10" Woofers
  • 1 x 3" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced


  • FREQUENCY RESPONSE: 55 Hz ÷ 20000 Hz
  • MAX SPL At 1 M: 135 dB
  • HORIZONTAL COVERAGE ANGLE: 100 °
  • VERTICAL COVERAGE ANGLE: 15°


Transducers:

  • COMPRESSION ENGINE: 1 x 2.0``, 3.0 '' v.c
  • LOW SPEAKER: 2 x 10``, 2.5 '' v.c

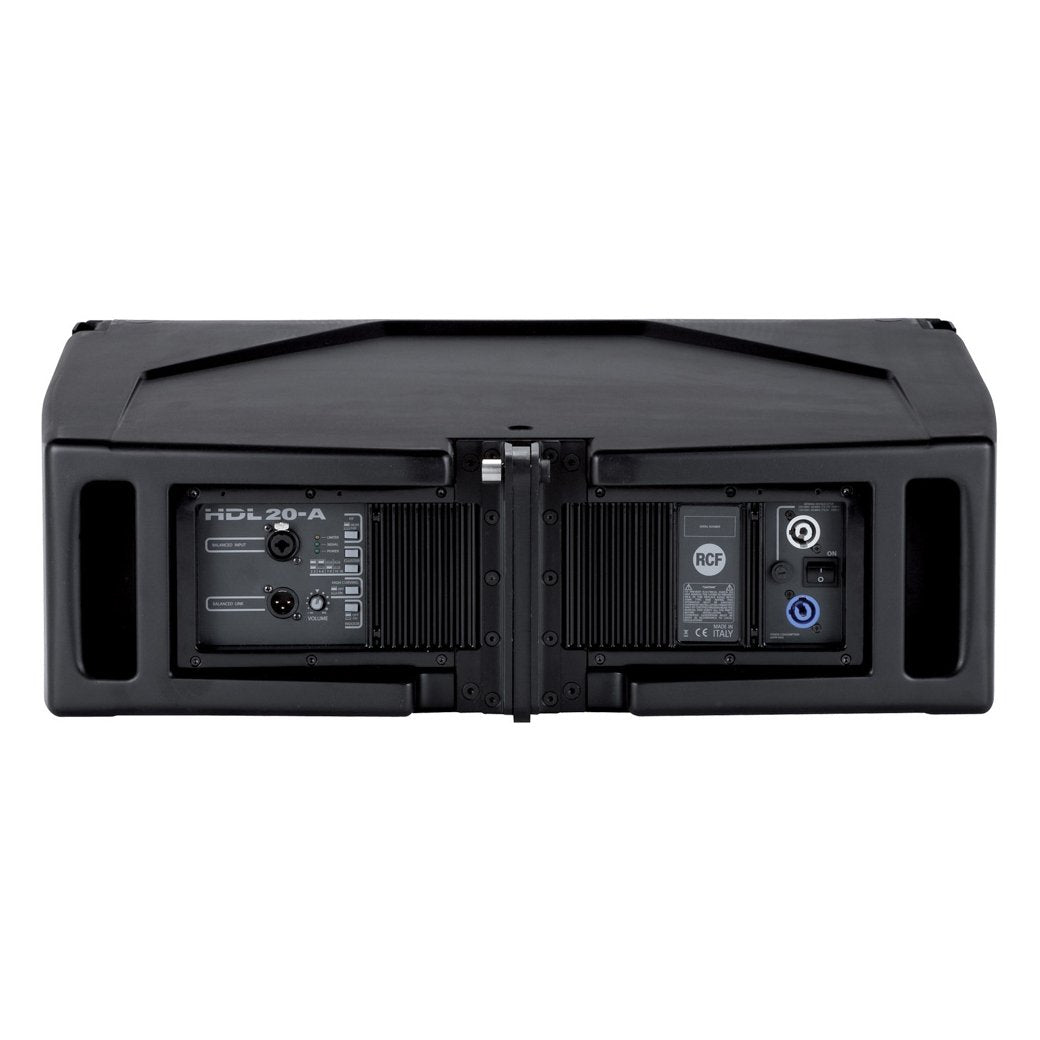

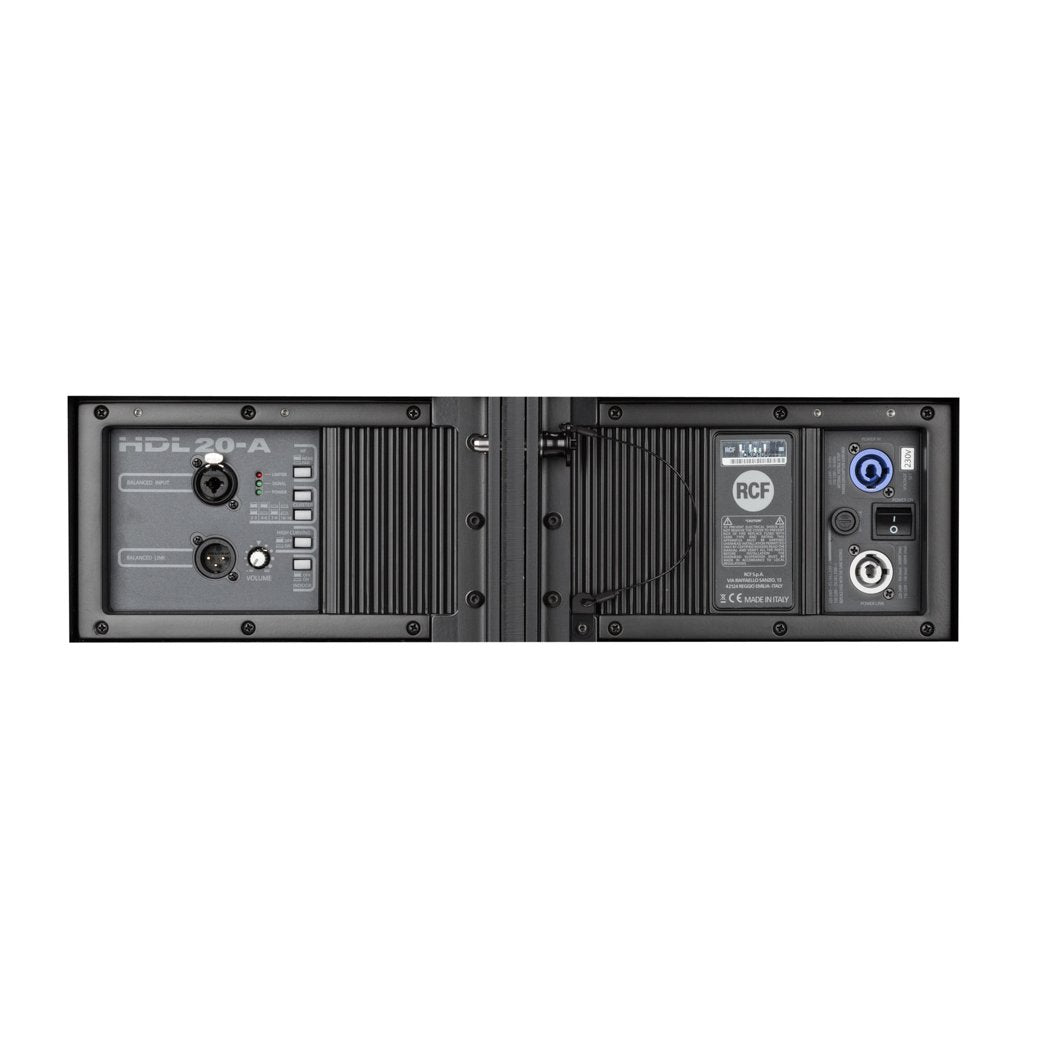

Entry section / Exit section:

  • INPUT SIGNAL: bal / unbal
  • INPUT CONNECTORS: XLR
  • OUTPUT CONNECTORS: XLR
  • INPUT SENSITIVITY: -2 dBu / + 4 dBu



Process Section:

  • CROSSING FREQUENCIES: 800 Hz
  • PROTECTIONS: Thermal, RMS
  • LIMITER: Soft Limiter
  • CONTROLS: Cluster, HF, High curving, Indoor



Power section

  • TOTAL POWER: 1400 W Peak, 700 W RMS
  • ACUTES: 400 W Peak, 200 W RMS
  • LOW FREQUENCIES: 1000 W Peak, 500 W RMS
  • REFRIGERATION: Convection
  • UNIT CONNECTIONS: Powercon IN / OUT



Physical specifications

  • CASE MATERIAL: PP Composite
  • PHYSICAL EQUIPMENT: Rigging flyware
  • HANDLES: 2 side, 2 back
  • GRILLE: Steel
  • COLOR: Black



Size

  • HEIGHT: 294 mm / 11.57 inches
  • TOTAL WIDTH: 705 mm / 27.76 inches
  • PACKAGE DEPTH: 445 mm / 17.52 inches
  • PACKAGE WEIGHT:2 kg / 66.58 lbs



Shipping Information

  • PACKAGE HEIGHT: 375 mm / 14.76 inches
  • PACKAGE WIDTH: 800 mm / 31.5 inches
  • PACKAGE DEPTH: 500 mm / 19.69 inches
  • PACKAGE WEIGHT: 33 kg / 73.19 lbs

    RCF HDL 20-A Line Array

    Sale price $3,199.00
    Regular price $4,499.00You saved$1,300.00 OFF
