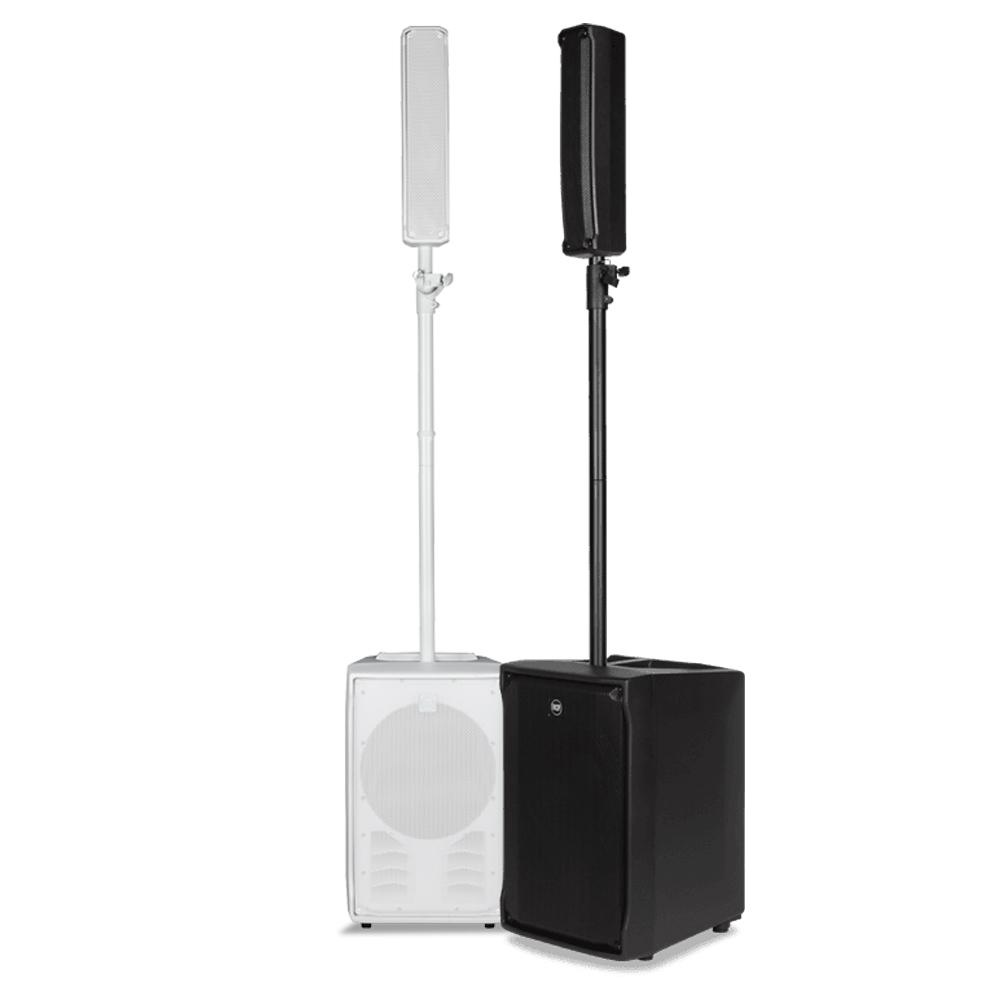

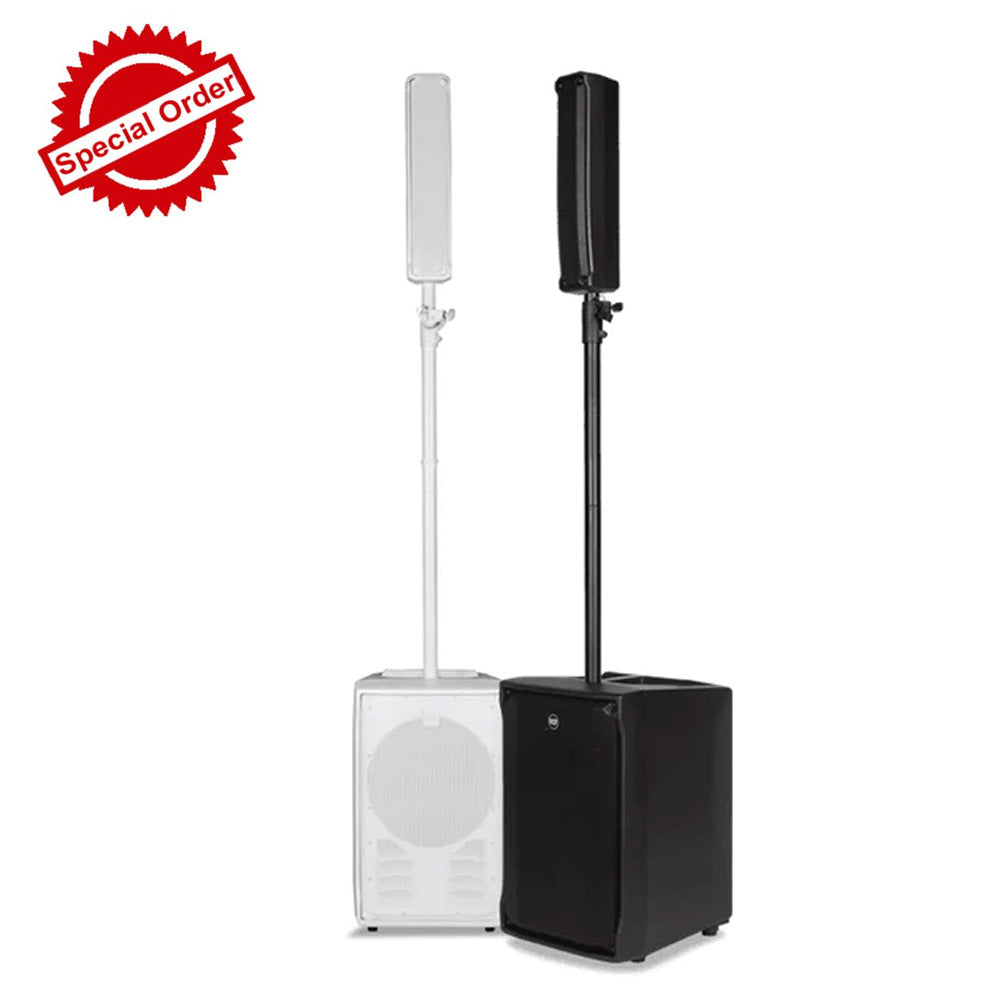

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer.

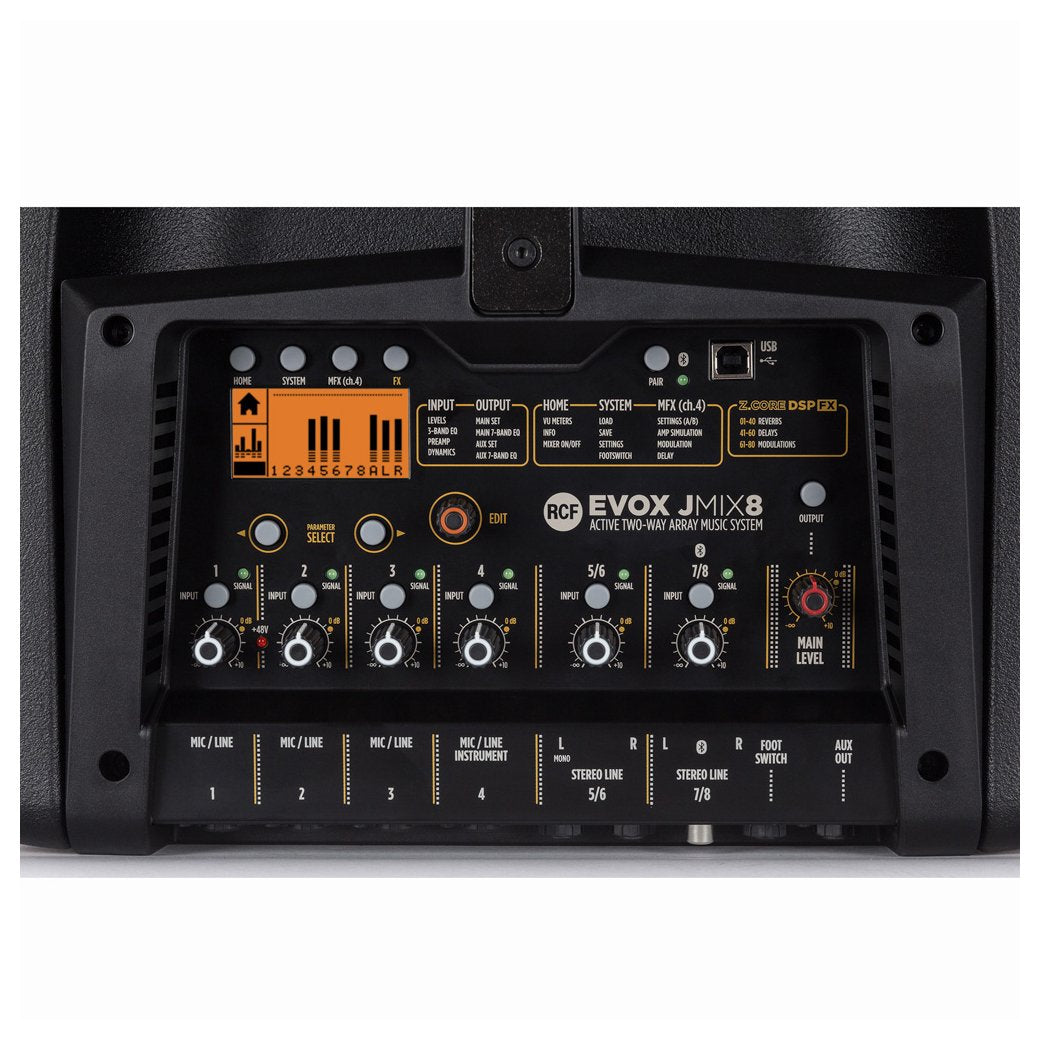

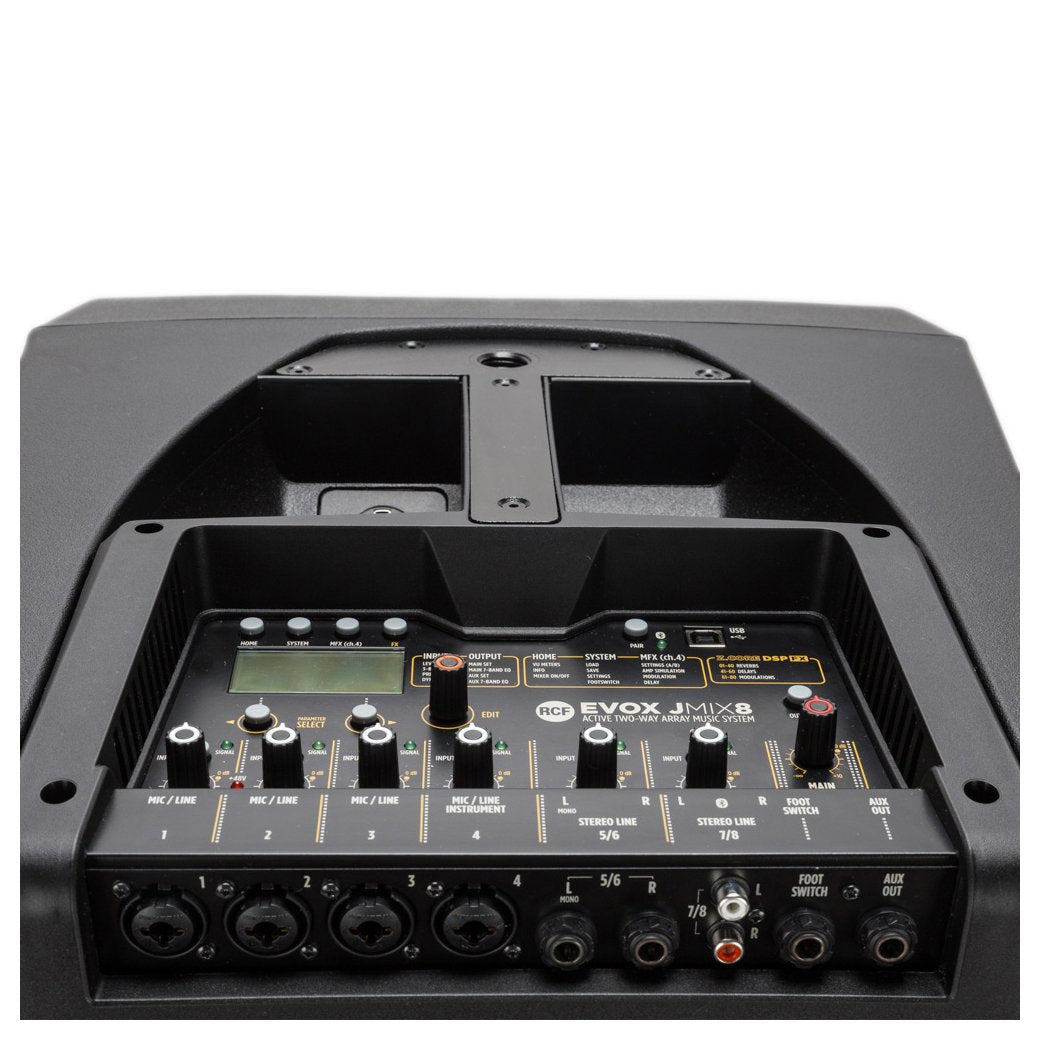

All the available functions on the EVOX JMIX8 system integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

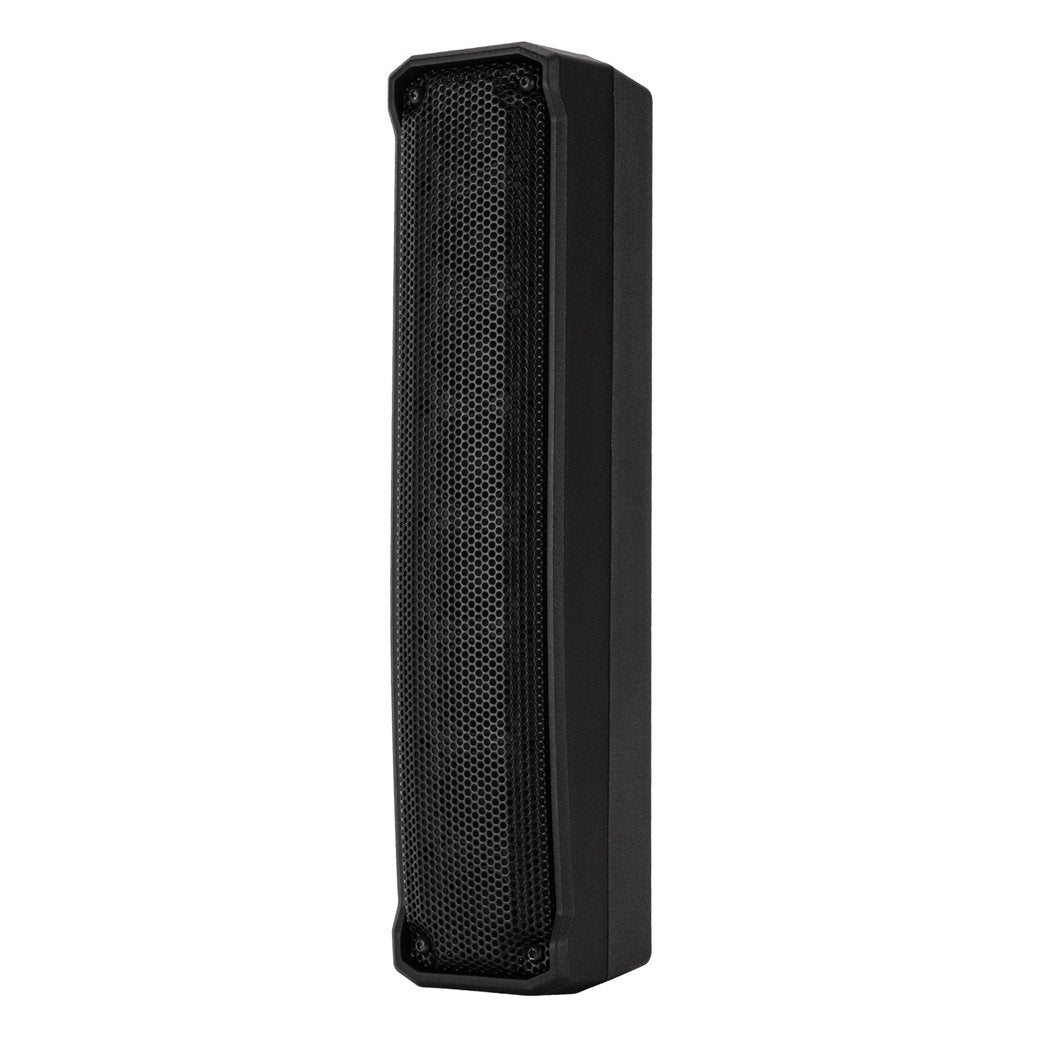

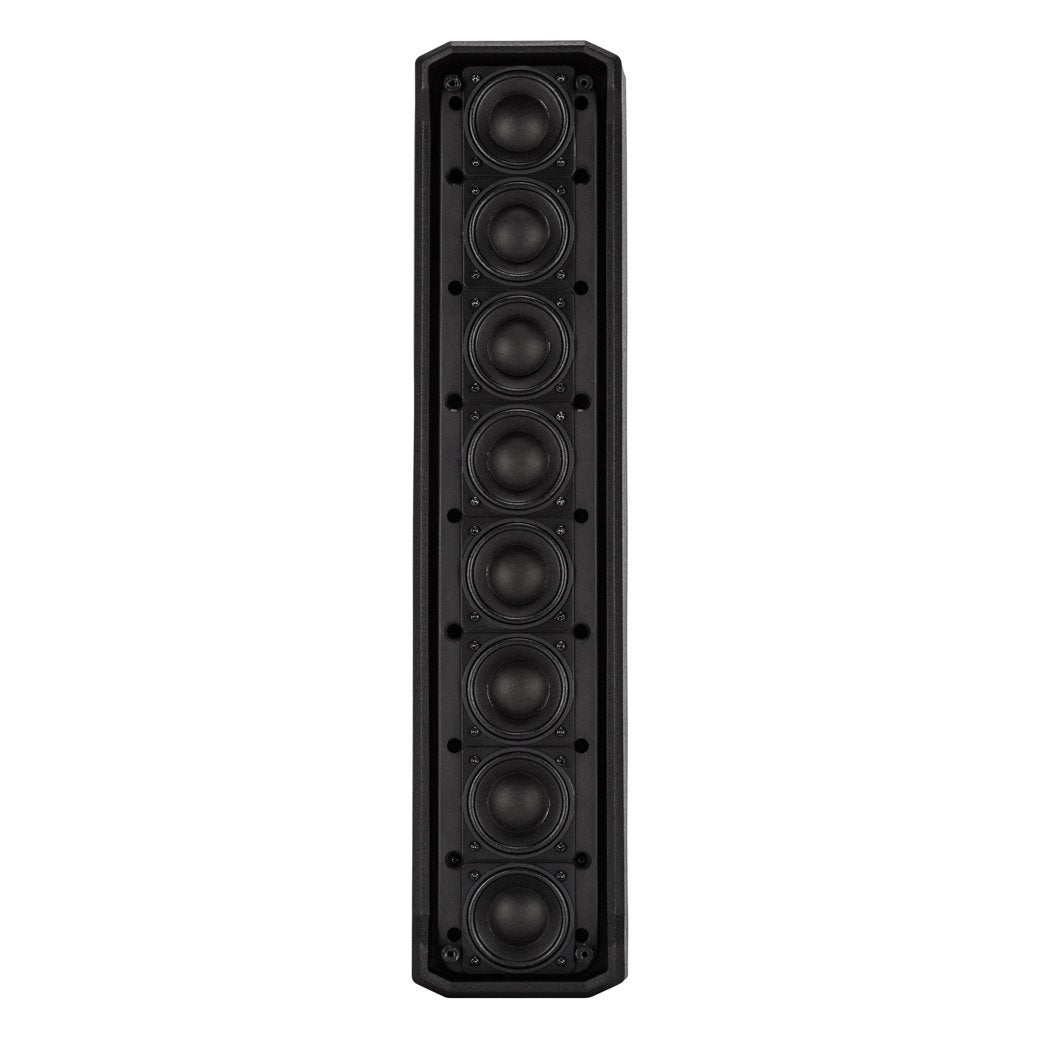

HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

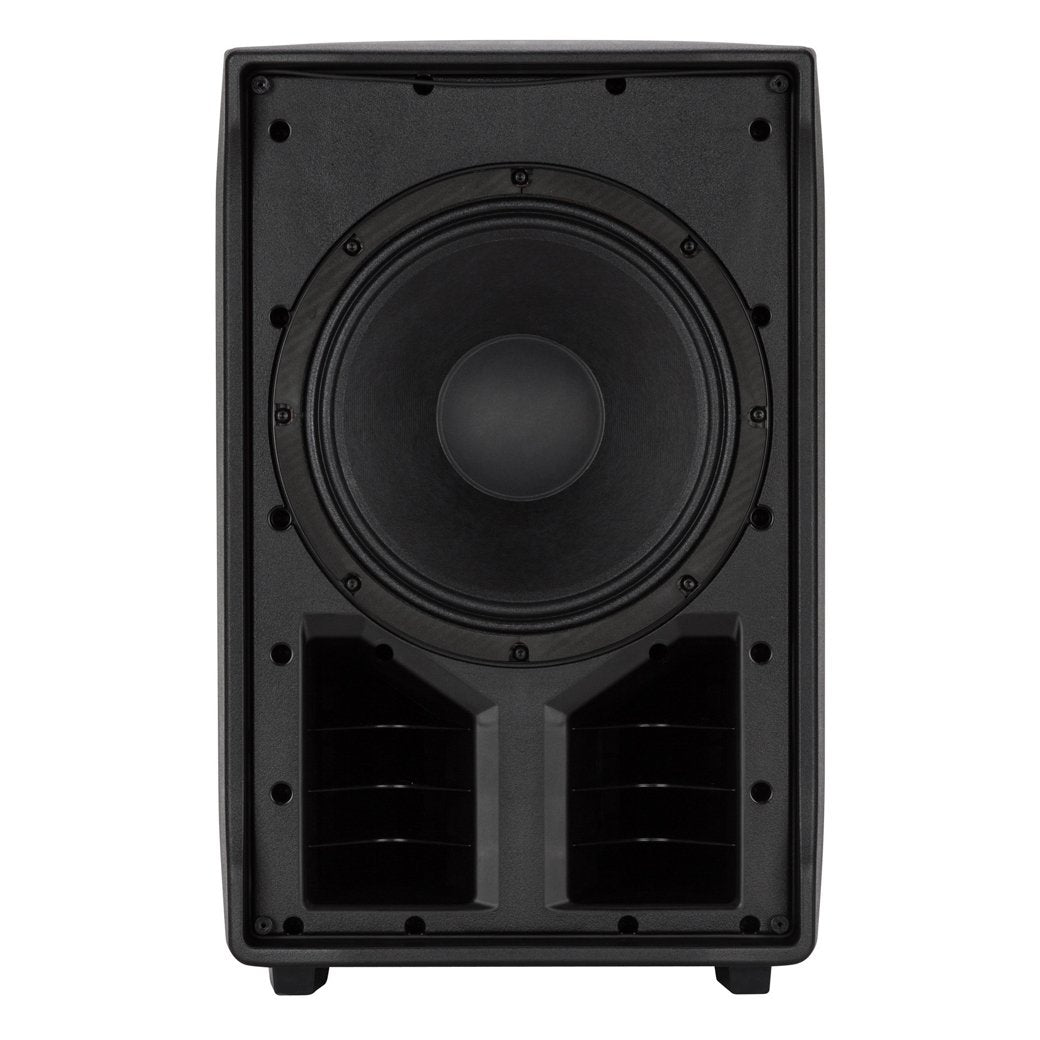

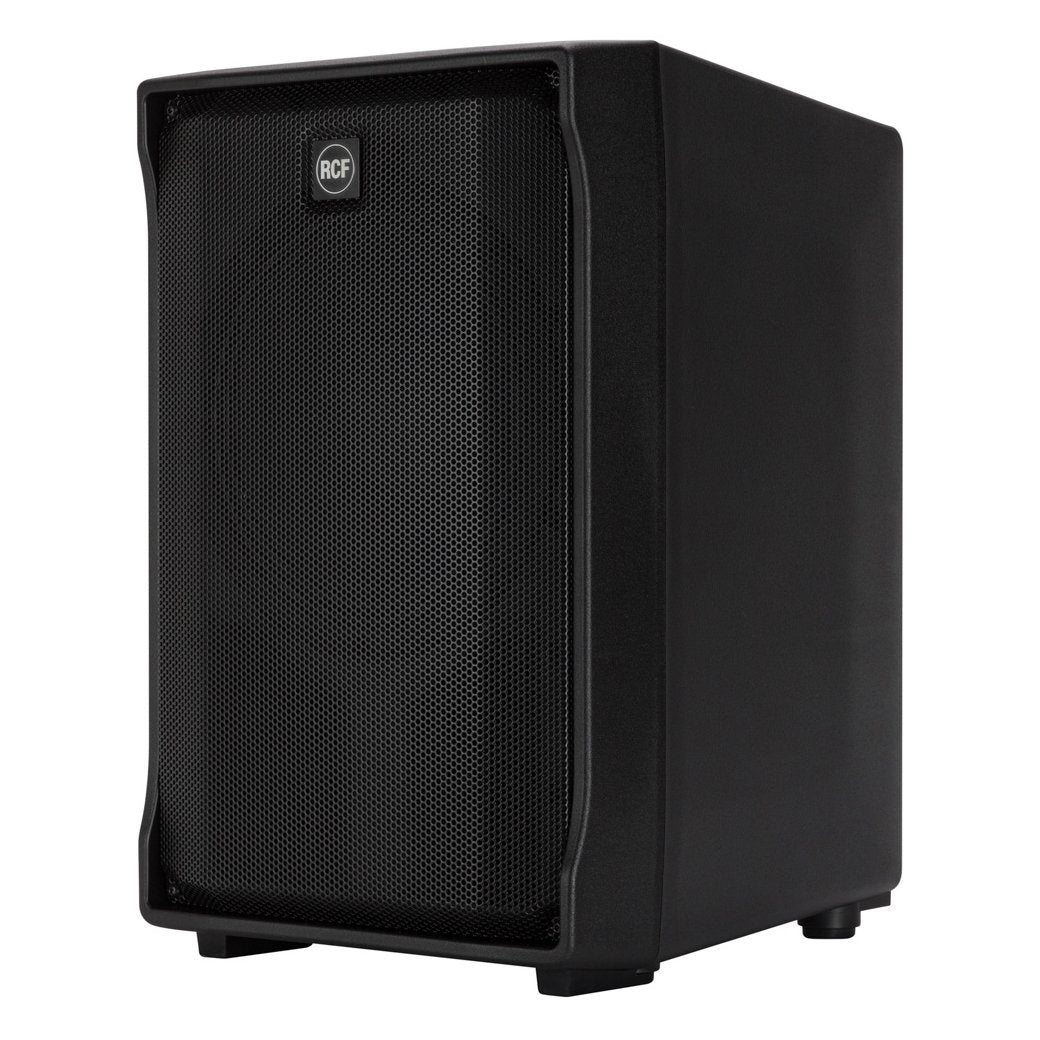

LOW FREQUENCIES The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

•  128 dB Max SPL
•  1400 Watt 2-way peak power
•  8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
•  DSP Processing with FiRPHASE
•  12" woofer, high power 2.5" voice coil
•  8 x 2" ultra compact fullrange 1.0" voice coil
•  2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
•  24,4/53.8 kg/lbs

Acoustical specifications

• FREQUENCY RESPONSE: 40 Hz ÷ 20000 Hz
• HORIZONTAL COVERAGE ANGLE: 120°
• MAX SPL @ 1M: 128 dB
• VERTICAL COVERAGE ANGLE: 30°

Transducers

• FULLRANGE: 8 x 2.0'', 1.0'' v.c
• WOOFER: 12'', 2.5'' v.c

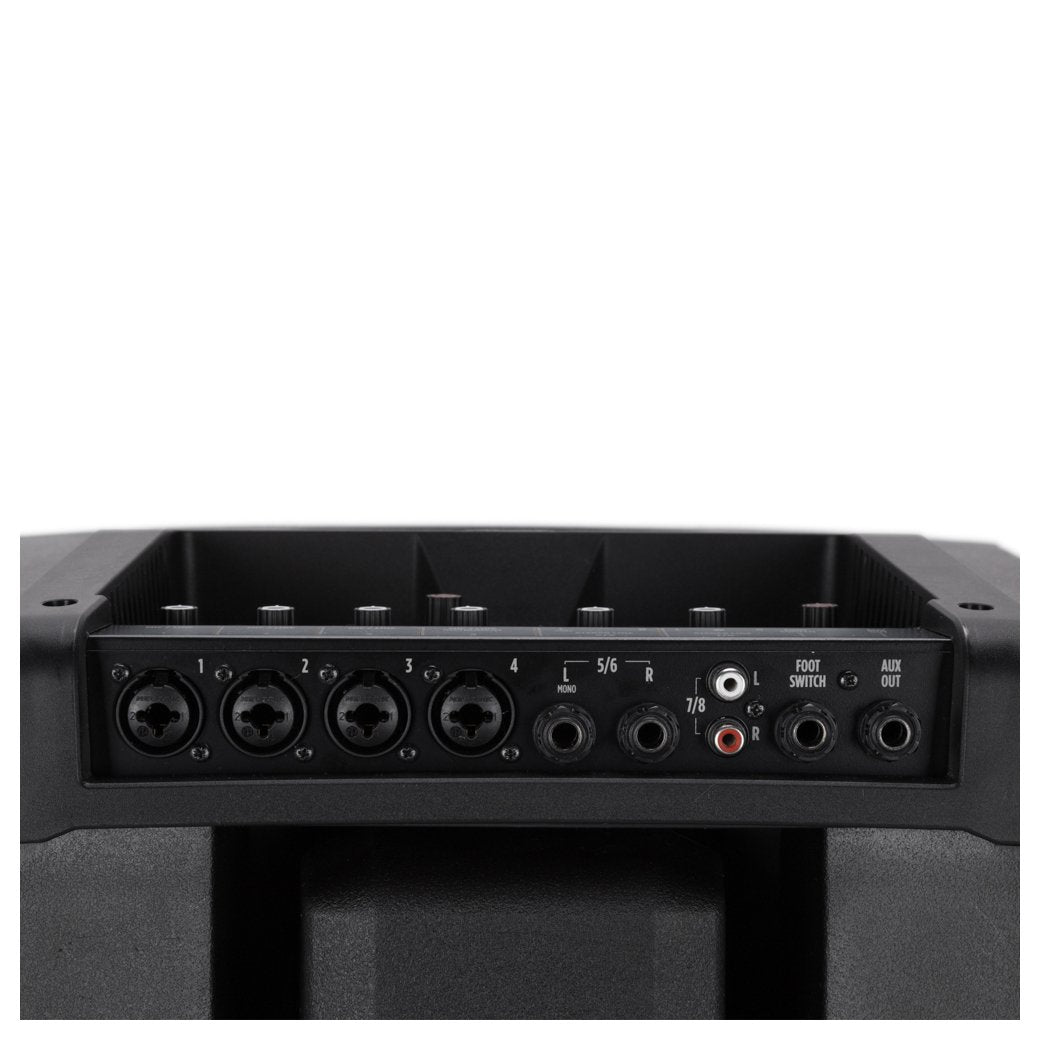

Input/Output section

• INPUT CONNECTORS: XLR, Jack
• INPUT SENSITIVITY: -2 dBu/+4 dBu
• INPUT SIGNAL: bal/unbal
• OUTPUT CONNECTORS: XLR

Processor section

• CONTROLS: Volume, Boost, Mic/Line
• CROSSOVER FREQUENCIES: 220 Hz
• LIMITER: Soft Limiter
• PROTECTIONS: Thermal, RMS

Power section

• CONNECTIONS: VDE
• COOLING: Convection
• HIGH FREQUENCIES: 400 W Peak, 200 W RMS
• LOW FREQUENCIES: 1000 W Peak, 500 W RMS
• TOTAL POWER: 1400 W Peak, 700 W RMS

Electronic specifications

• FREQUENCY RESPONSE: 20 Hz ÷ 20 Hz
• THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): 004% A-Weighted

Processing

• A/D-D/A CONVERSION: 24 Bit @ 48.0 kHz
• DYNAMIC RANGE: 108
• PROCESSING CHANNELS:8
• SIGNAL PROCESSING: 32 Bit Floating Point

Inputs

• A/D DYNAMIC RANGE (DB): 108 dB
• GAIN RANGE: 0 dB ÷ 45 dB
• GAIN SELECTION: 0 dB ÷ 45 dB
• STEREO LINE GAIN SELECTION: 0 dB ÷ 45 dB
• HI-Z LINE INPUTS IMPEDANCE (MOHM): 1 Mohm
• HI-Z LINE INPUTS: 1
• INPUT NOISE LEVEL (DBU A-WEIGHTED): -114 dBu A-Weighted
• MIC INPUTS IMPEDANCE (KOHM): 3 kohm
• LINE: 4
• LINE INPUT IMPEDANCE (KOHM): 11 kohm
• LOW CUT: 20 Hz ÷ 1000 dB
• MIC: 4
• PHANTOM POWER +48V: Yes
• REMOTE CONTROLLED STORABLE GAIN: Yes
• STEREO LINE: 2
• STEREO LINE INPUT IMPEDENCE (KOHM): 11 kohm

Outputs

• AUX OUTPUT: 1
• AUX SEND: 1

Outputs specifications

• AUX OUT IMPEDANCE (OHM): 150 ohm
• AUX OUT LEVEL (DBU): 19 dBu
• D/A DYNAMIC RANGE (DB): 108 dB
• MAIN OUT IMPEDANCE (OHM): 150 ohm
• MAIN OUT LEVEL (DBU): 19 dBu

Compressors

• RCF COMPRESSORS: 4 mono (6 preset)

EQ

• DESCRIPTION: 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.
• INPUT CHANNELS EQ: 1 Semi Parametric / 2 Shelving

Auxiliary sends

• AUX: 1 PRE/POST
• FX POST: 1

Internal Effects

• MULTIFX INSERT EFFECTS: 1
• SEND EFFECTS: 1

Mastering processors

• MAIN OUT PROCESSORS: 1

USB audio

• PLAY TRK: 2

Other features

• FOOTSWITCH: Yes

Electrical specifications

• POWER SUPPLY: Internal

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: PP Composite
• COLOR: Black
• GRILLE: Steel
• HANDLES: 1 Top

Size

• DEPTH: 460 mm / 18.11 inches
• HEIGHT: 623 mm / 24.53 inches
• WEIGHT: 2 kg / 48.94 lbs
• WIDTH: 400 mm / 15.75 inches

Shipping informations

• PACKAGE DEPTH: 581 mm / 22.87 inches
• PACKAGE HEIGHT: 676 mm / 26.61 inches
• PACKAGE WEIGHT: 29 kg / 63.93 lbs
• PACKAGE WIDTH: 451 mm / 17.76 inches
