The D230Ti-S compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn.

The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.

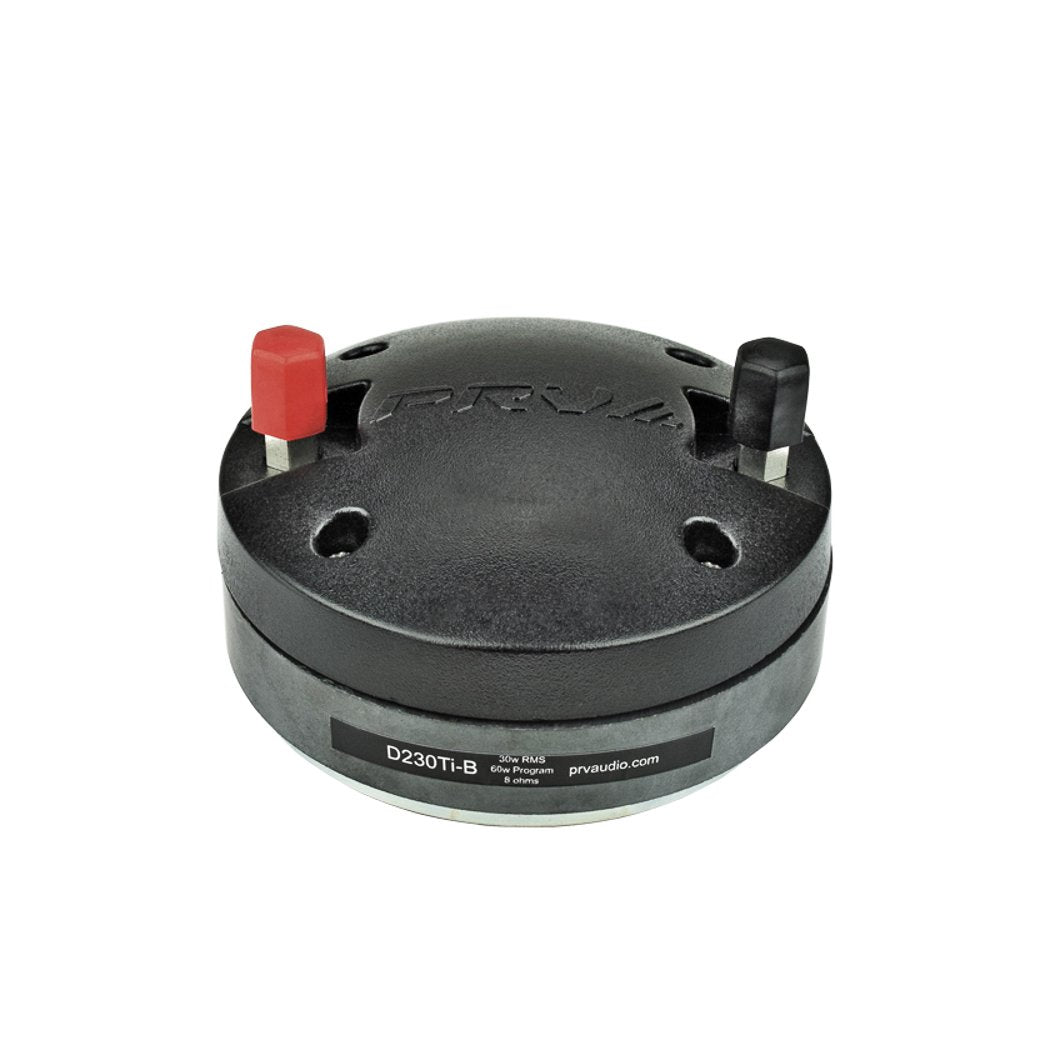

This driver is also available in both bolt-on and screw-on models (D230T-B / D230Ti-S). The D230Ti-B is a lightweight driver that weighs just 2lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

The D230Ti-S is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1” screw-on design

• Exit Throat Diameter: 1” (25.4mm)
• Nominal impedance: 8 Ohms
• Rated AES Power Handling (RMS): 30 Watts
• Program Power: 60 Watts
• Sensitivity 2.83V at 1m: 105 dB
• Recommended Hi Pass Crossover** **For Full Power Handling: 2000 Hz**/ **12db Per Octave Crossover
• Frequency Response at -10dB: 1,800 – 20,000 Hz
• Voice Coil Diameter : 1.4”(35.5 mm)
• Voice Coil Wire: Copper
• Voice Coil Former Material: Kapton
• Diaphragm Material : Titanium
• Flux Density: 1.65 T
• Magnet Material: Ferrite
