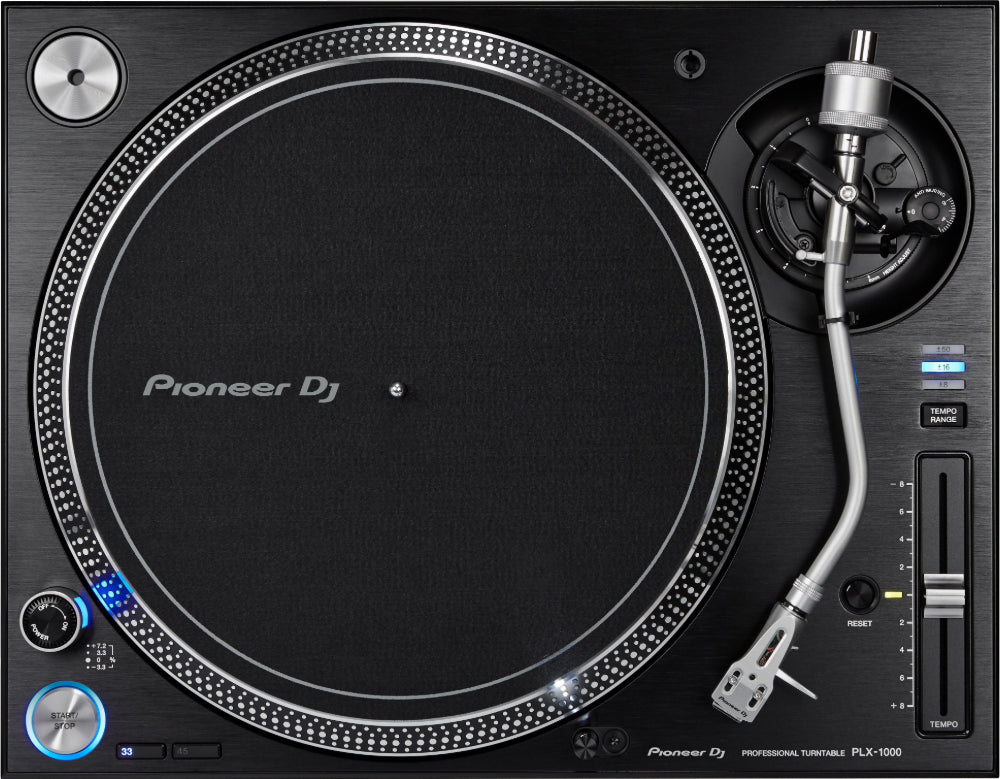

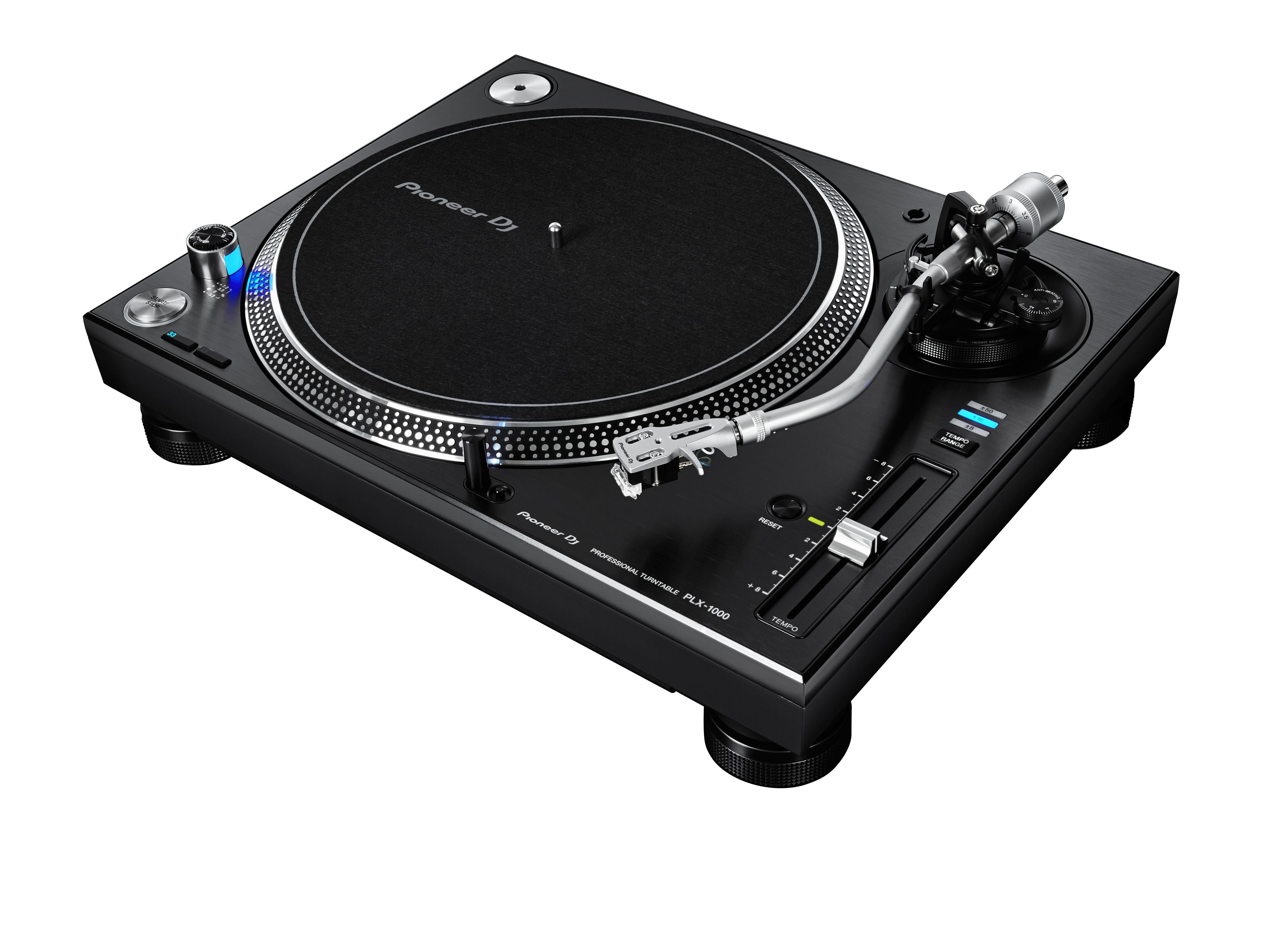

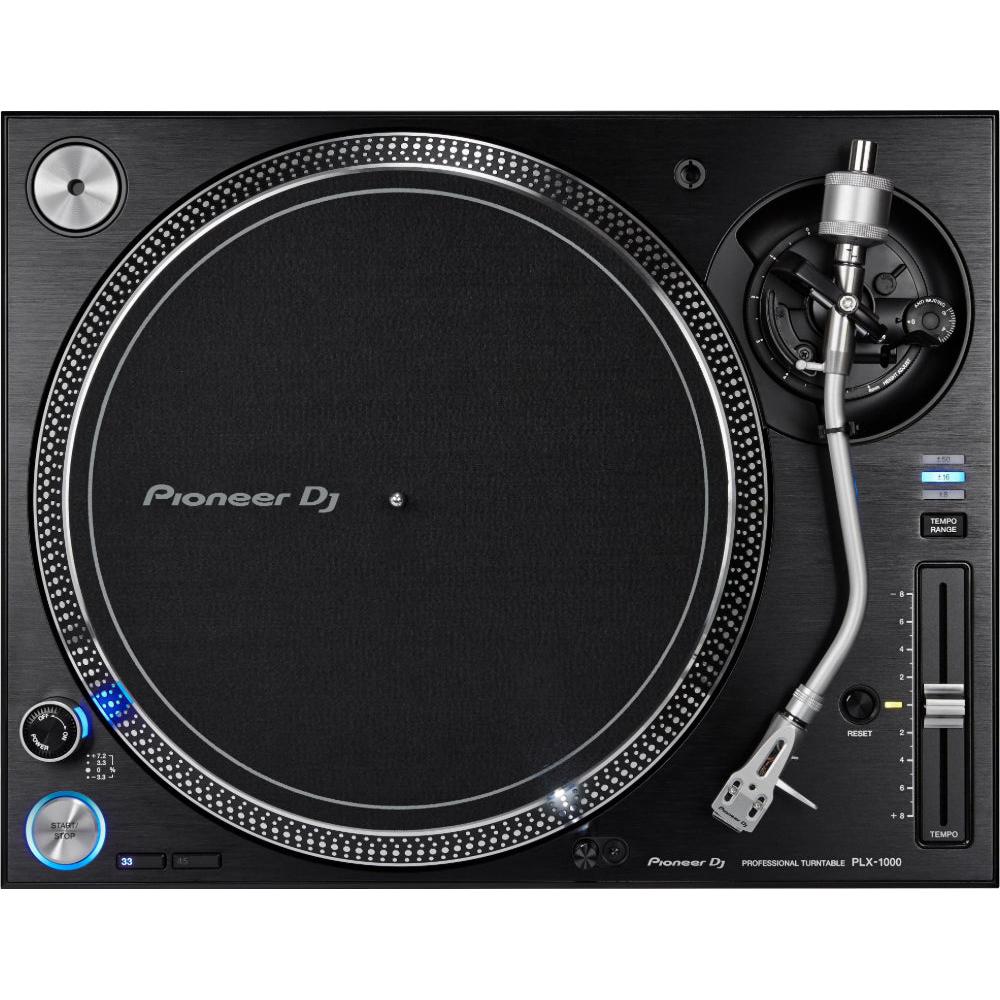

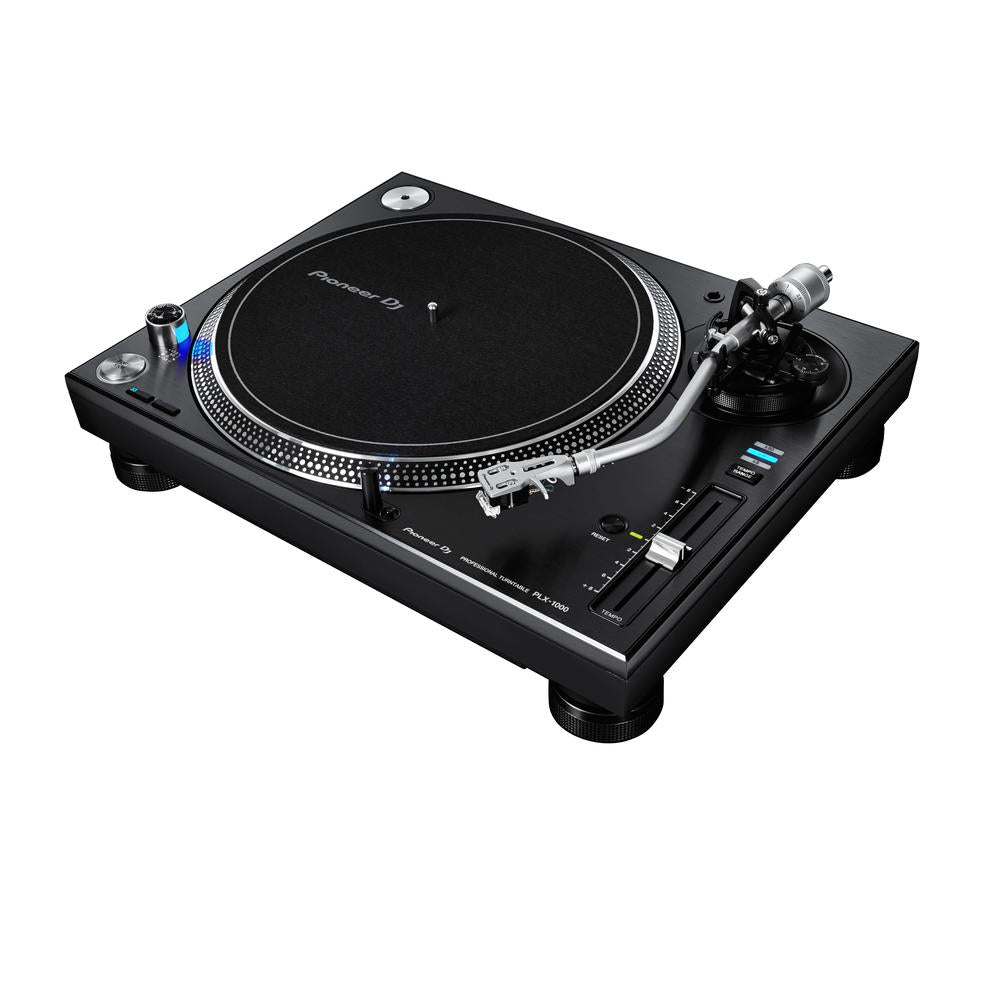

The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.

FEATURES

Turn the Tables

The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).

Excellent Sound Design

The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.

Pick Up the Pace

Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

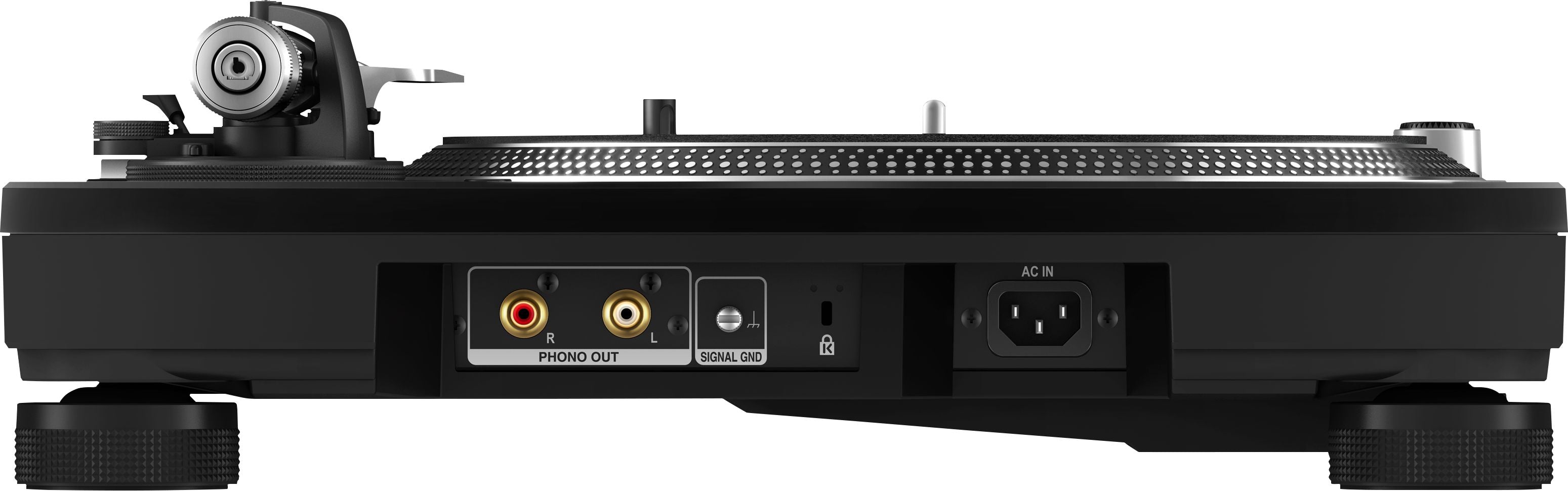

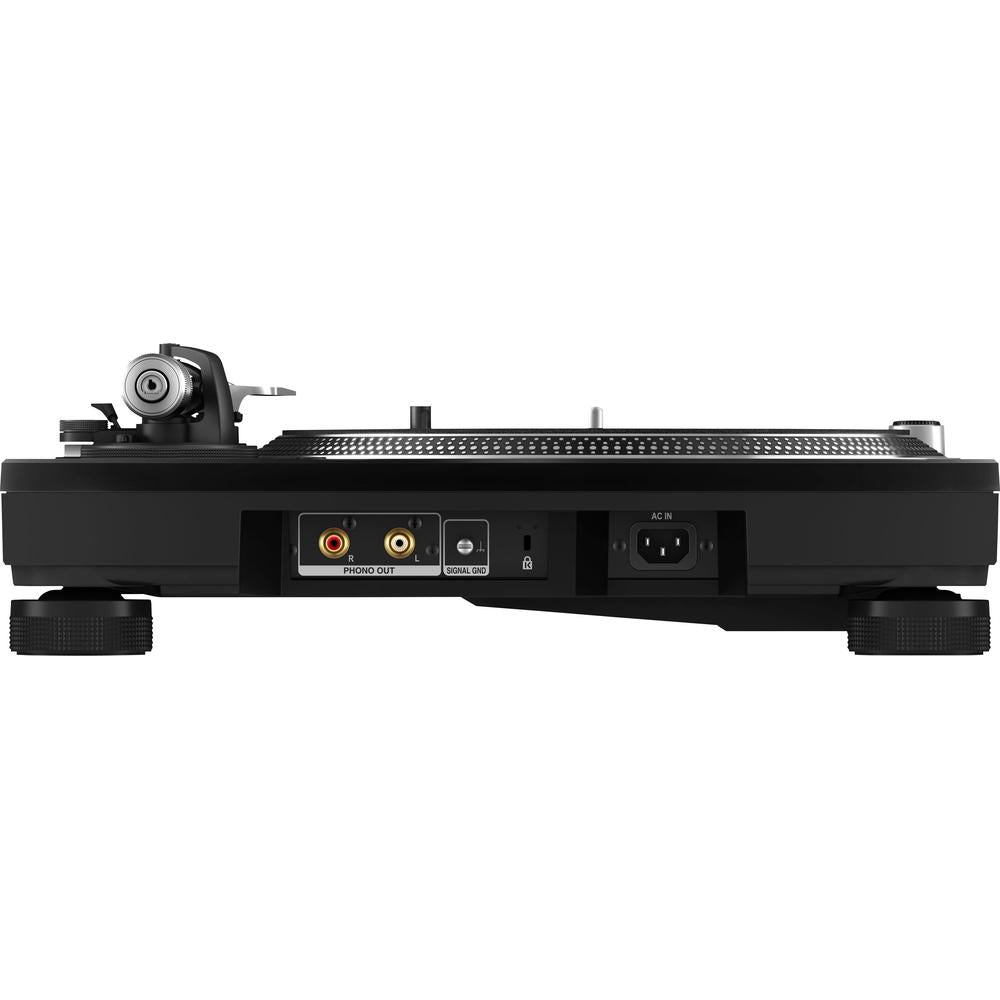

Flexible Connectivity

Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

• Drive Method: Quartz lock, servo-type, direct drive
• Platter: Aluminium, die-casting diameter: 332 mm
• Motor: 3-phase, brushless DC motor
• Braking System: Electronic brake
• Rotation Speed: 33⅓ rpm, 45 rpm
• Rotation Adjustment Range: ±8, ±16, ±50 %
• Wow and Flutter: 0.1 % or less WRMS (JIS WTD)
• Signal-to-Noise Ratio: 70 dB
• Starting Torque: > 4.5 kgf・cm
• Start Time: 0.3 sec (at 33⅓ rpm)
• Arm Type:
  • Universal type S-shape tone arm
  • Gimbal-supported type bearing structure
  • Static balance type
• Overhang: 0.59 in
• Effective Length: 9.06 in
• Tracking Error: Within 3°
• Height Adjustment Range: 0.24 in
• Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
• Cartridge Weight Single: 2.5-12 g (includes mounting materials)
• Cartridge type: VM
• Outputs: 1 ANALOGUE (RCA)
