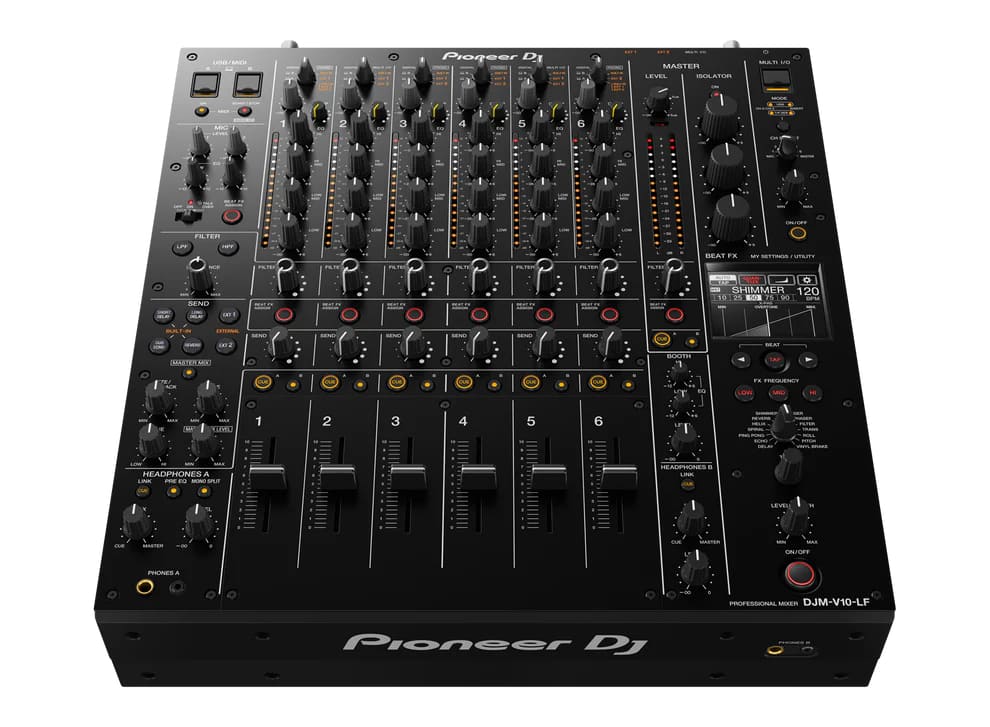

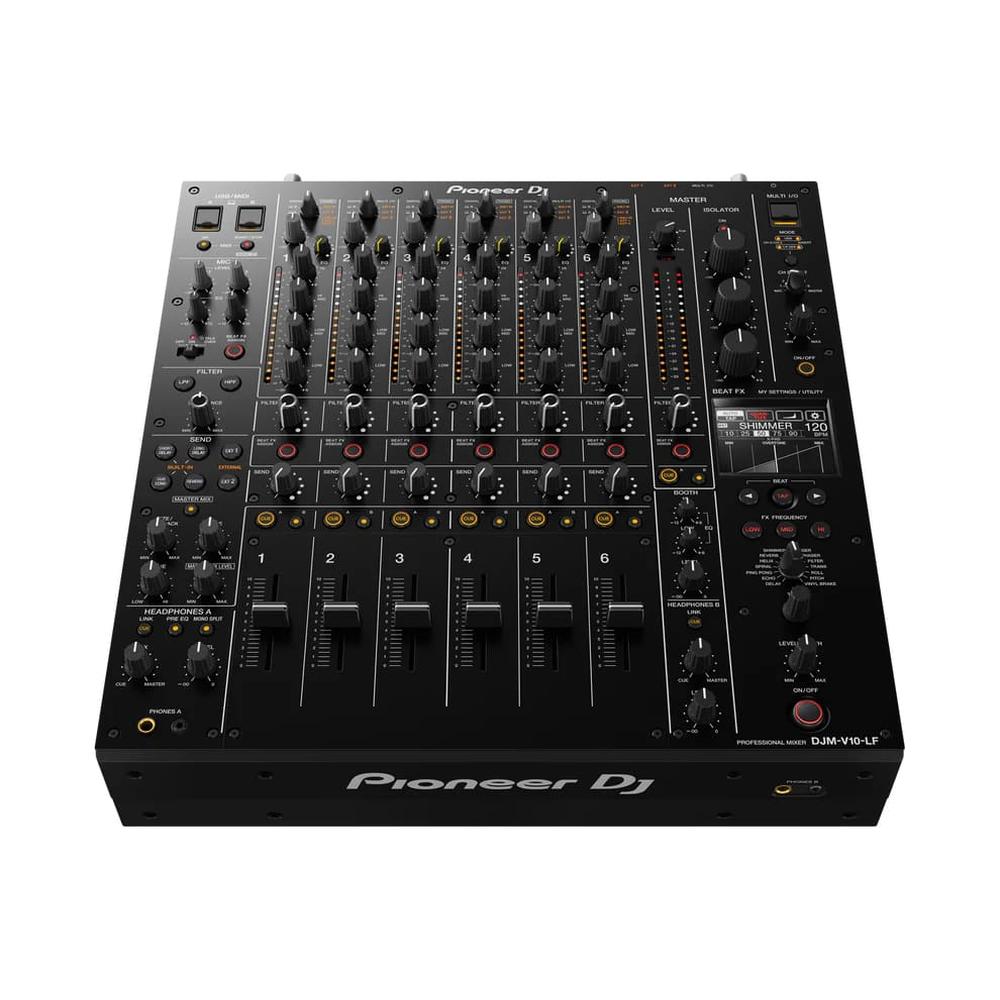

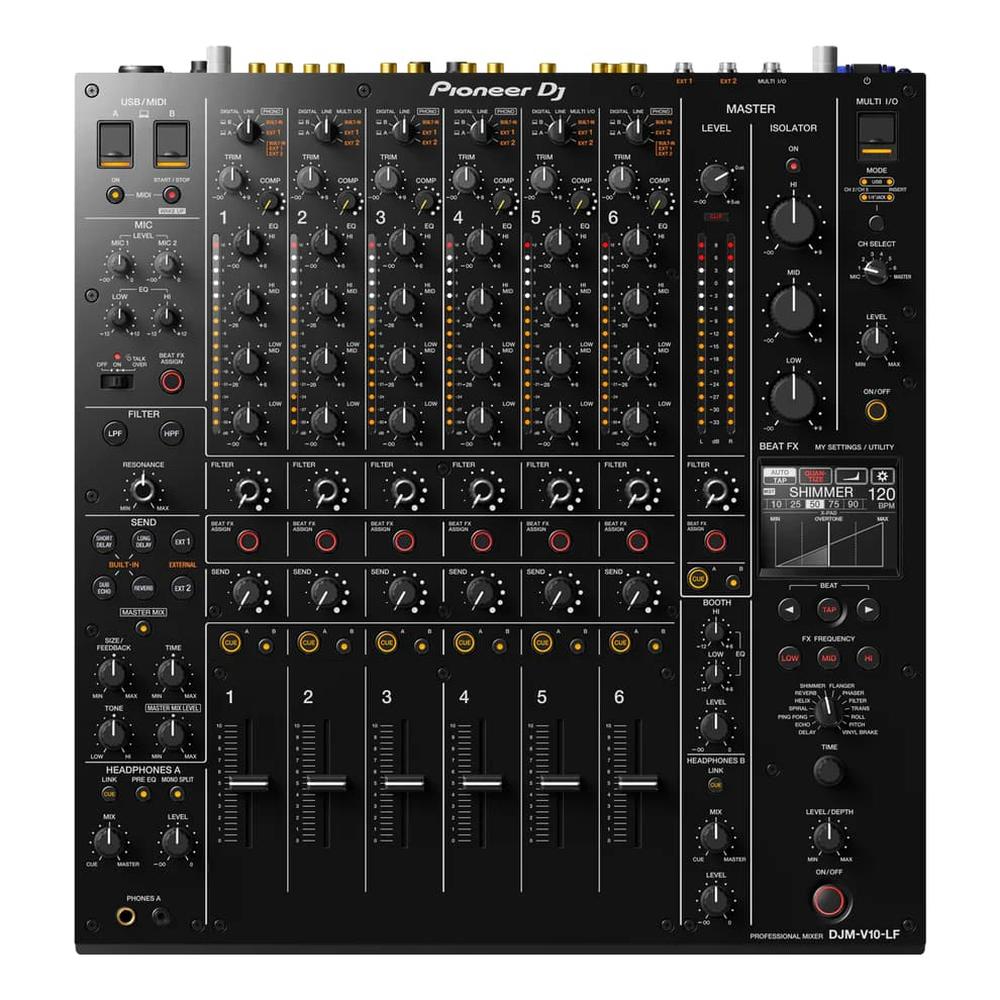

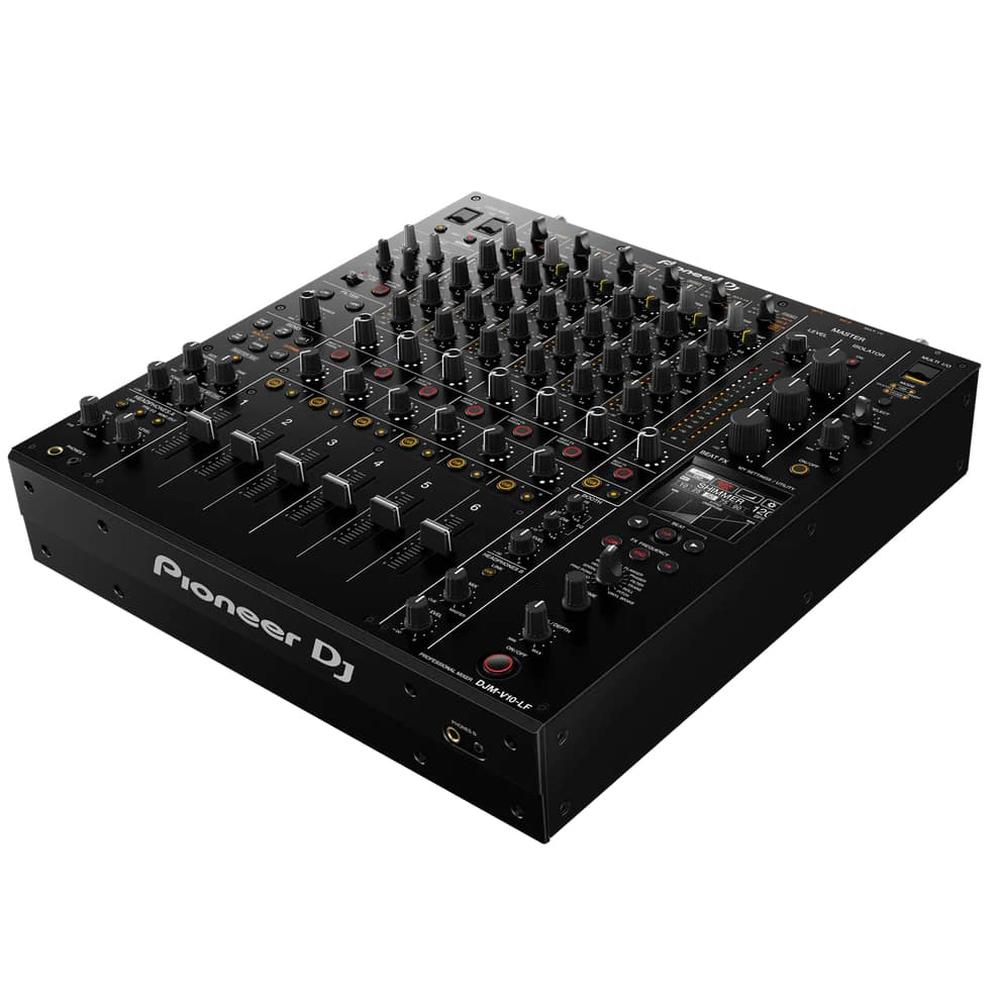

Pioneer DJ's DJM-V10-LF is a 6-channel mixer designed for DJs seeking ultimate control and customization. With 60mm long-throw channel faders and a custom fader curve, the DJM-V10-LF provides smooth, precise volume control for seamless mixing. Each of the 6 channels features a 4-band EQ, filter, compressor and dedicated FX send for shaping your sound. The DJM-V10-LF also has a booth output with its own EQ to monitor your mix. Support for leading DJ software and the Pro DJ Link protocol allows for an integrated performance with lighting and visuals.

60mm Long-Throw Channel Faders

The DJM-V10-LF's signature feature are its 60mm long-throw channel faders, offering a wide range of travel for precise control of volume. With these faders, subtle nudges become distinct volume changes, giving you ultimate control for crafting smooth blends and drops. The faders are perfectly weighted and sized for a natural feel under your fingertips.

Custom Fader Curve Enhances Your Mixes

Pioneer DJ designed a custom fader curve specifically for the DJM-V10-LF to complement the long-throw faders. This curve provides a smooth, optimized volume ramp for seamless transitions. The custom curve gives you tighter control, enabling you to make the smallest adjustments for perfect mixes.

Shape Your Sound With EQ, Filter, Compressor and FX

Each of the DJM-V10-LF's 6 channels has a 4-band EQ, filter, compressor and dedicated FX send for shaping your tracks. The 4-band EQ isolates frequencies for mixing, while the filter provides low-pass and high-pass modes. The compressor beefs up weaker tracks. Four FX sends per channel allow you to add effects like delay, echo and reverb. You have extensive control over the sound of each channel and your overall mix.

Monitor Your Mix With the Booth Out and EQ

The DJM-V10-LF has a booth output with its own 3-band EQ so you can properly monitor your mix. Tweak the booth EQ to ensure the sound you hear matches what the audience experiences. With independent booth volume control, you and another DJ can monitor at different levels.

FEATURES

Unique Fader Curve

The unit includes two of the classic fader curves from its predecessor—which have been optimized to make the most of the extra length—as well as an all-new curve preset that enables you to make fine adjustments to the volume of each channel and precisely control the output sound.

Elite Sound Quality

Producing a warm and natural sound, the DJM-V10-LF lets you, and your audience, hear every detail in the music. Studio-quality 96-kHz/64-bit mixing and dithering processing within the DSP, as well as 32-bit high-quality A/D and D/A converters and a low-jitter clock circuit all help to produce a full low end that’s complemented by vibrant mids and precise highs.

Six Channels

Choose your ideal setup and plug in everything from CDJs and turntables to samplers, synths, and drum machines. To make setup easy, the analog input terminals line up with each channel on the top panel, so you’ll always know where to connect your cables when you’re in the booth.

4-Band EQ

Sculpt your sound just the way you like with the newly developed 4-band EQ. The frequencies, curves, and boost and cut amounts on each band have all been specially designed to give you total flexibility. Completely isolate the high and/or low and tweak the two mid ranges—which have their own custom curves—to fine-tune your mix.

Custom Filter With Dedicated Knob on Each Channel

Drastically change the sound of a track or make tiny adjustments using the custom-designed filter with resonance control. Switch on high or low pass by pressing either button, then turn the knob from all the way to the left (no filter applied) to the furthest position on the right (maximum filter applied). Because the high and low pass are separated, the entire range of the knob is dedicated to the option you choose, giving you twice the resolution to play with compared to the filter on the DJM-900NXS2. This means you can make much more nuanced adjustments to the effect.

• Sampling Rate: 96 kHz
• A/D Converter: 32 bit
• D/A Converter: 32 bit
• S/N Ratio Line: 105 dB
• S/N Ratio Phono: 88 dB
• Frequency Range: 20 - 40000 Hz
• S/N Ratio Mic: 79 dB
• Distortion: < 0.005 % (LINE)
• EQ: 4 Band
• EQ Range: [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
• Channels: 6
• Filter:
  • HPF
  • LPF
• Send:
  • Short Delay
  • Long Delay
  • Dub Echo
  • Reverb
  • 2 Externals (1/4-inch TS jack)
• Multi I/O:
  • 1/4-inch jack
  • USB (Type A)
• Beat FX:
  • Delay
  • Echo
  • Ping Pong
  • Spiral
  • Helix
  • Reverb
  • Shimmer
  • Flanger
  • Phaser
  • Filter
  • Trans
  • Roll
  • Pitch
  • Vinyl Brake
• Mic Connection:
  • XLR / 1/4-inch Combo Jack
  • 1/4-inch TRS Jack
• Talkover: 3 Position Switch

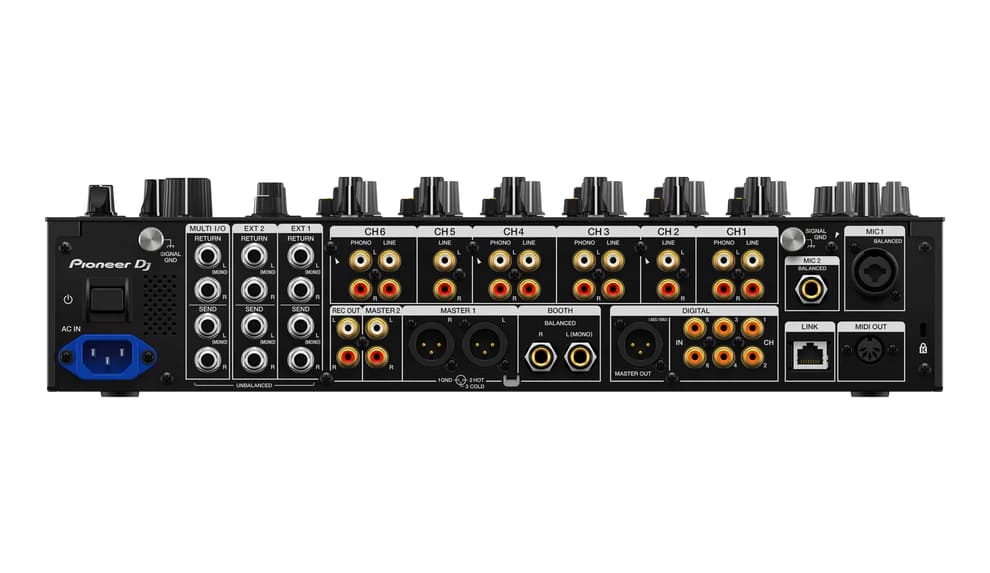

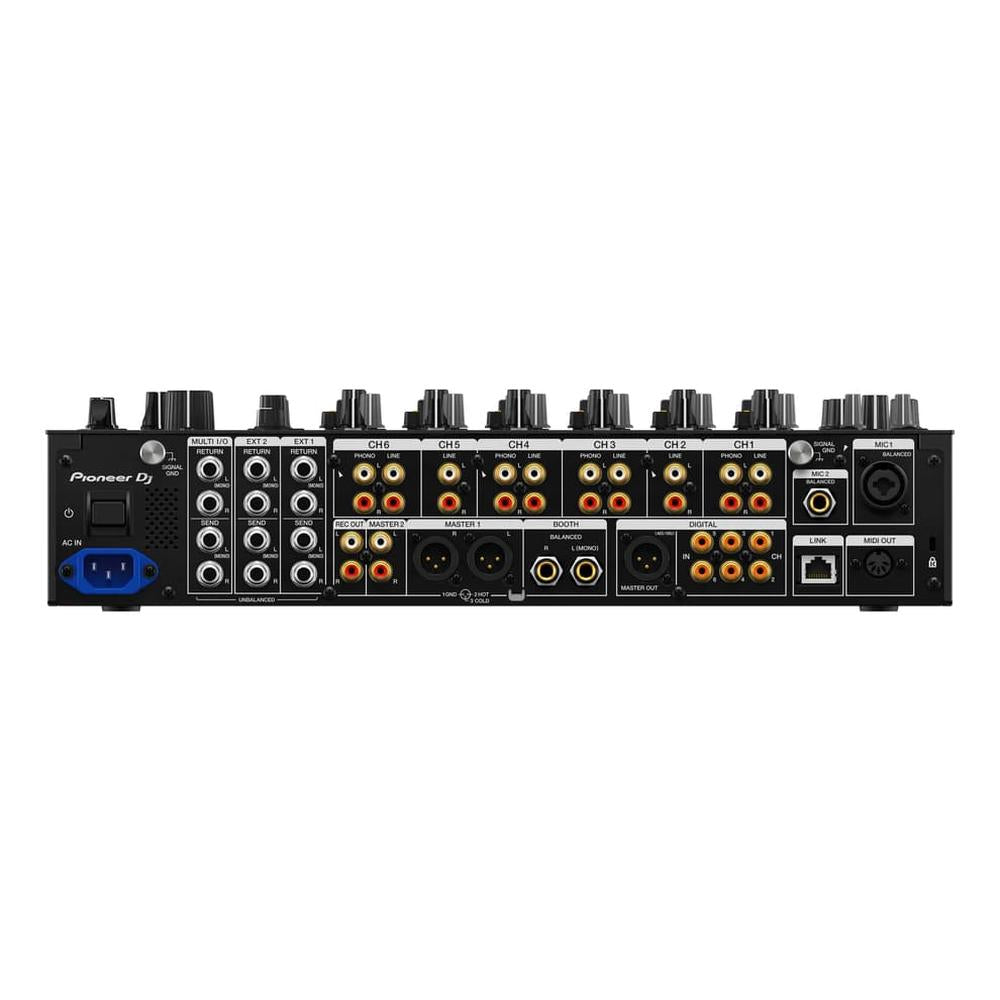

• Inputs:
  • 6 DIGITAL (Coaxial)
  • 6 LINE (RCA)
  • 4 PHONO (RCA)
• Send/Return:
  • 3 SEND (1/4-inch TS jack)
  • 3 RETURN (1/4-inch TS jack)
• LAN: 1
• Outputs:
  • 2 MASTER (XLR, RCA)
  • 1 BOOTH (1/4 inch TRS Jack)
  • 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
  • 1 REC OUT (RCA)
  • 1 DIGITAL (AES/EBU)
  • 1 MIDI (DIN)
• USB:
  • 2 USB B ports
  • 1 USB A port
