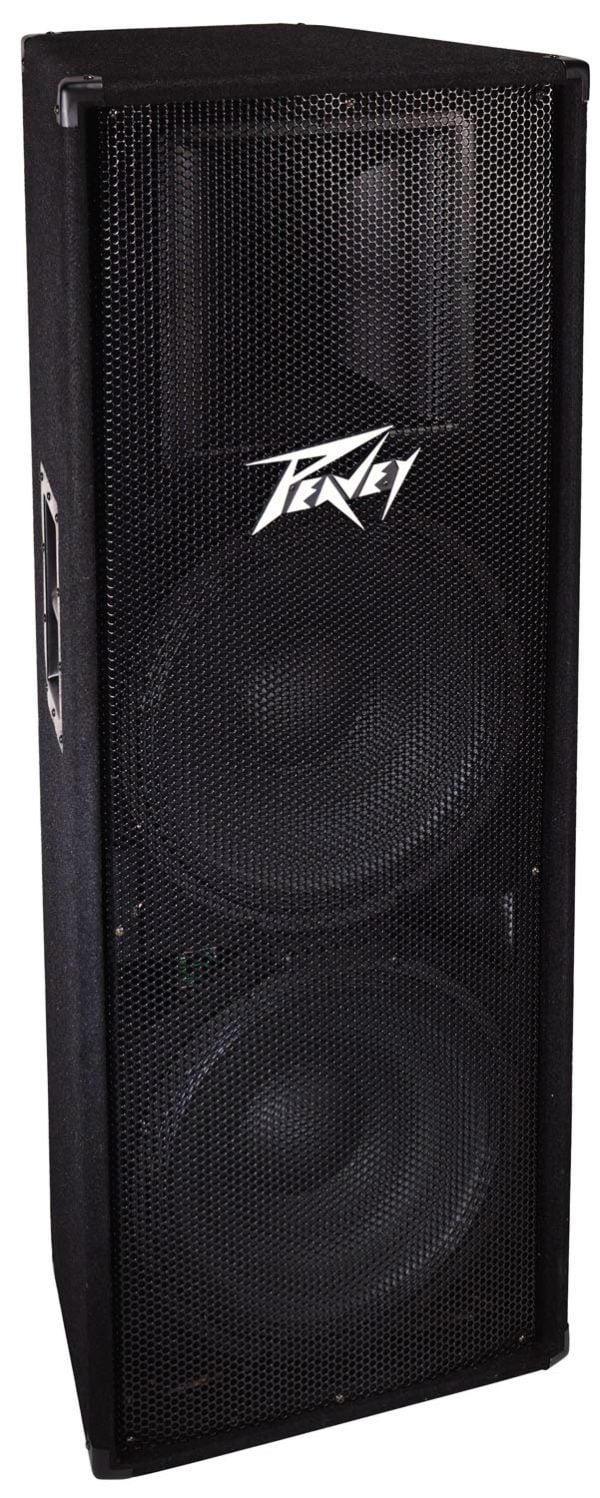

The PV 215 is a quasi three-way speaker system based on dual 15" heavy duty woofers and an RX14 titanium diaphragm dynamic compression driver mounted on a 60° x 40° coverage constant-directivity horn. The lightweight-yet-rugged, carpet-covered trapezoidal enclosure facilitates portable use for live music or speech sound reinforcement, as well as music playback.

FEATURES

• Three-way sound reinforcement enclosure
• Peavey exclusive, heavy duty woofers with a 2.375" voice coil
• RX14 titanium diaphragm compression driver with a 1.4" titanium diaphragm
• Tweeter protection
• 700 Watts program/1400 Watts peak power handling
• Heavy duty crossover network for driver protection and EQ
• Lightweight trapezoidal enclosure
• 60° x 40° coverage constant-directivity horn for better off-axis tonality
• High quality, heavy duty carpet covering
• Steel handles
• Steel corners
• Rugged dado and rabbet construction for lightweight-but-strong joinery
• T-Nut speaker mounting
• Heavy duty, full-length steel grille

• Frequency range (-10 dB, half space): 40 Hz to 21 kHz
• Frequency response (± 3 dB, half space): 58 Hz to 17 kHz
• Sensitivity (1w/1m): 98 dB
• Power rating (program): 700 Watts
• Peak power capacity (peak): 1400 Watts
• Maximum SPL: 123.5 dB
• Transducer complement: Dual Peavey heavy duty 15" premium woofers, RX141.4" titanium diaphragm dynamic compression driver on a 60˚ x 40˚ coverage constant directivity horn
• Driver protection: Positive temperature coefficient resistor
• Nominal coverage pattern: erage pattern: 60˚ x 40˚
• Electro-acoustic crossover frequency: 2.6 kHz
• Nominal impedance: 4 Ohms
• Input connections: Two 1/4" phone jacks in parallel
• Enclosure materials & finish: Trapezoidal, black carpet-covered enclosure with dado-joined 1/2" MDF (Medium Density Fiberboard) and a full-length, black powdercoated steel grille
• Dimensions (H x W x D):
  • Front: 48.25" x 18.38" x 14.25"
  • Rear: 48.25" x 11.75" x 14.25"
• Mounting or suspension: Four rubber feet for floor use.
