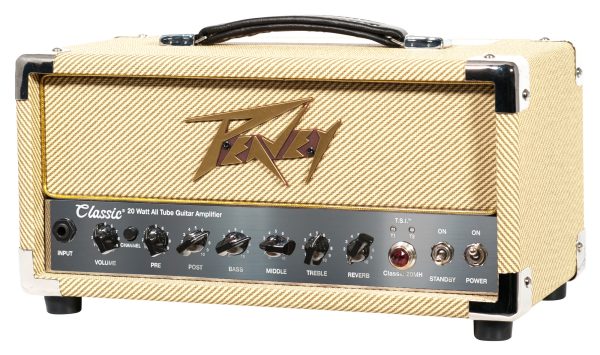

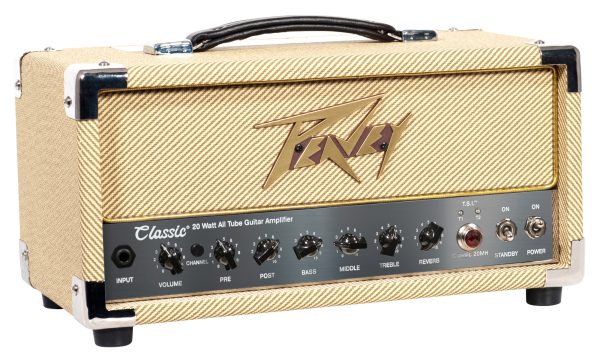

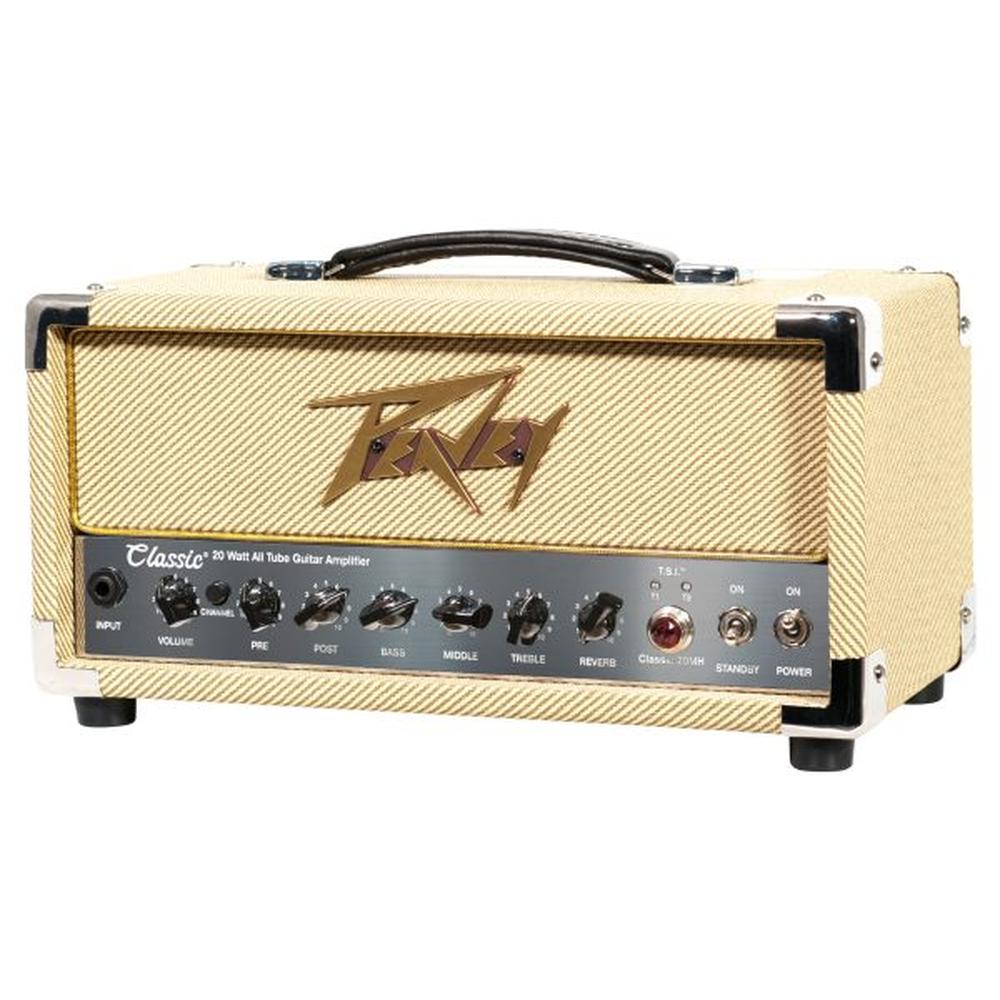

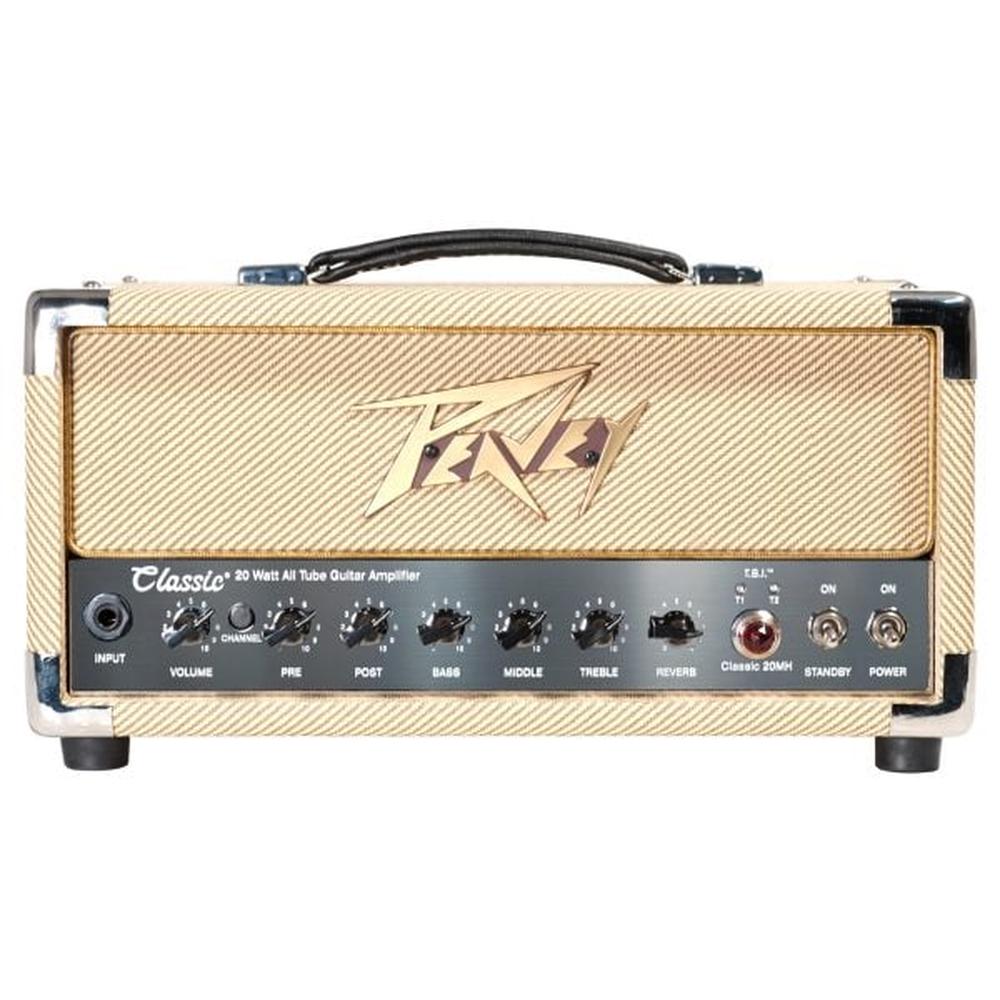

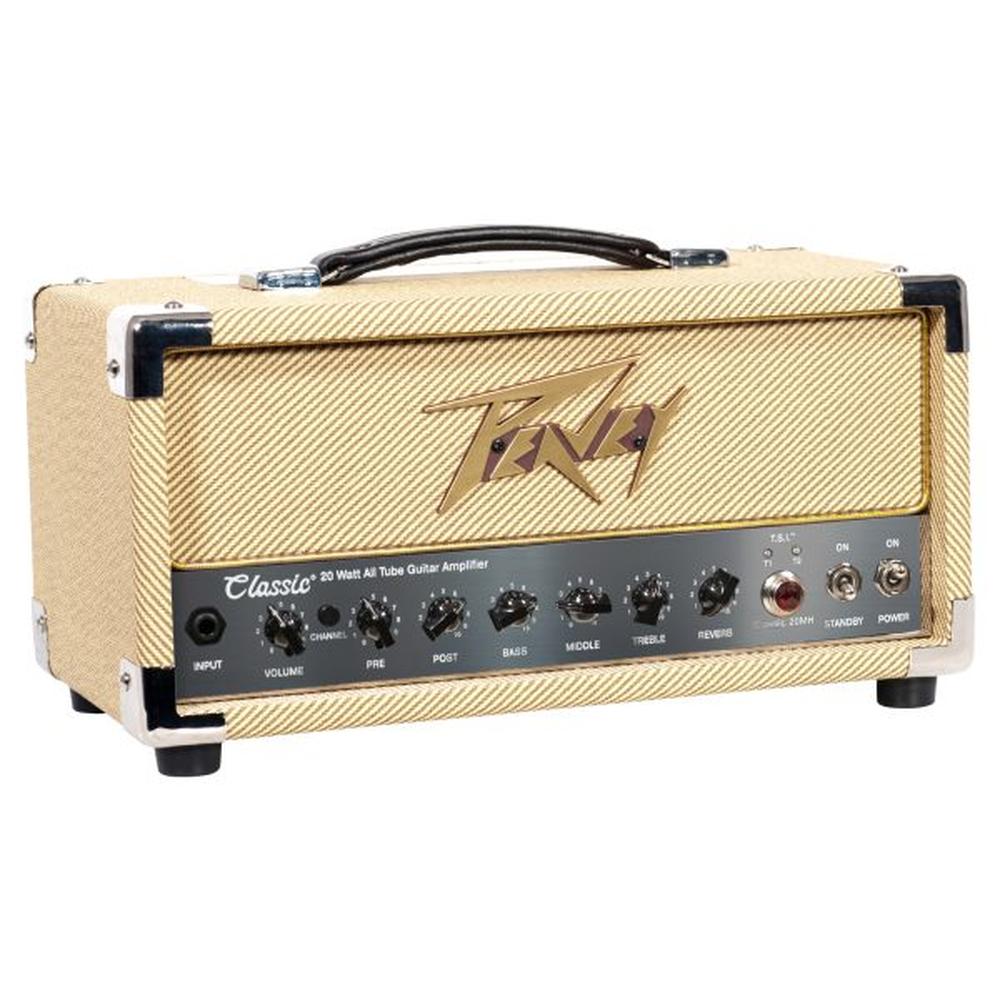

The Peavey Classic 20 MH all-tube 20-watt mini head features the legendary warm tones that have made Peavey’s Classic Series a must-have for guitar players of all styles. Its versatile and dynamic capabilities allow musicians to experiment with a wide range of styles and techniques, ensuring that each note resonates with extraordinary clarity and depth. The smooth, rich tones of the Peavey Classic 20 MH are a perfect complement to any artist looking to push the boundaries of their craft.

Timeless Classic

Since 1973, Peavey Classic Series guitar amps have been a trusted choice for professional musicians in every genre. The Classic Series is renowned for its exceptional quality and sound. Developed by founder Hartley Peavey, the Classic Series epitomizes Peavey's commitment to uncompromising quality, rich tones, and extraordinary value.

Authentic Sound

For Country, Jazz, Blues, and Rock n’ Roll players, this compact powerhouse delivers exceptional warmth and depth, making it the ultimate choice for guitarists seeking top-notch sound quality in a portable package. With its meticulously designed circuitry and premium components, the Classic 20 MH offers a level of tonal richness that is unmatched in its class of small guitar amps. Its versatile feature set and user-friendly controls make it an ideal companion for both practice sessions and live performances, ensuring that you always have access to the best possible sound.

Featuring (2) EL84 power tubes and (3) 12AX7/ECC83 preamp tubes, the compact Classic 20 MH ensures that your unique sound reaches every corner of a room, providing the clarity and warmth that captivates and engages your audience.

Feature Rich

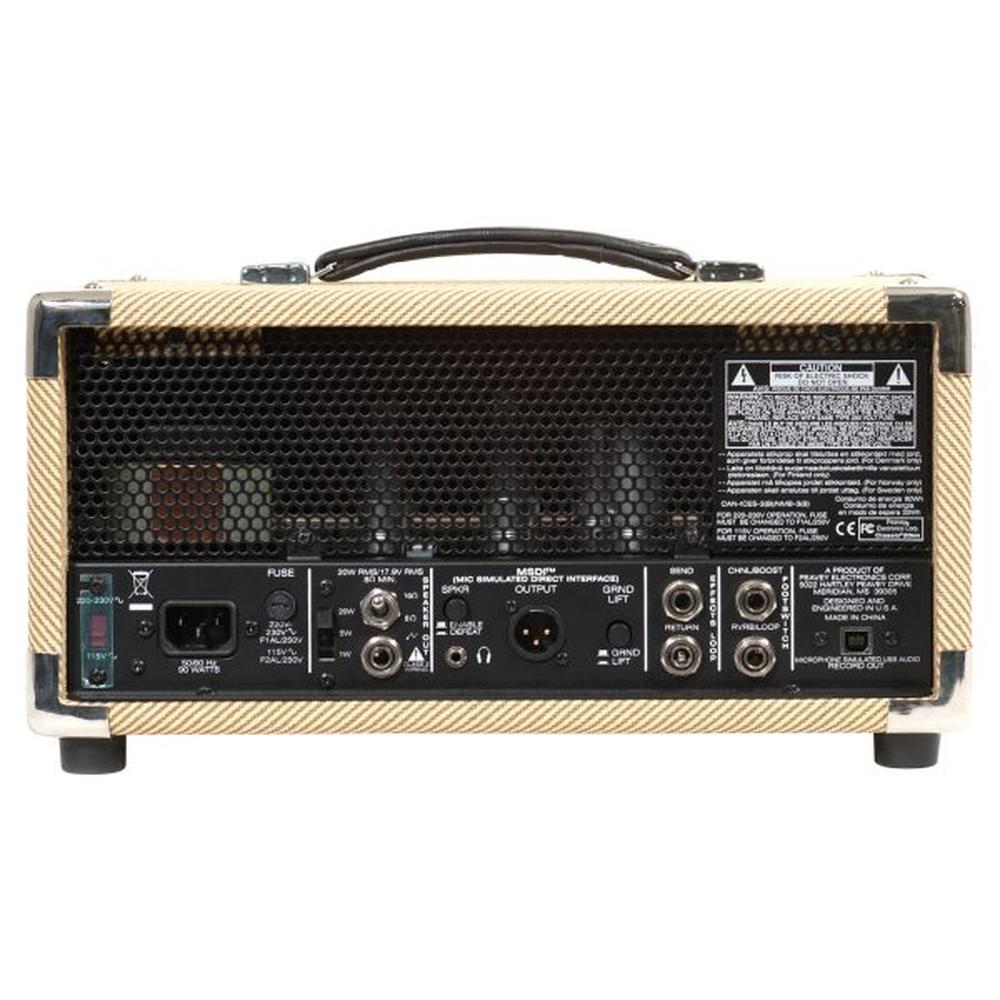

The compact 2-channel Classic 20 MH suits any playing style perfectly. Each channel shares EQ, an effects loop, and reverb, all accessible through the included footswitch. The amp's rear panel features Peavey’s unique Microphone Simulated Direct Interface (MSDI) with XLR and USB outputs, a 3-position power attenuator switch allowing for 20-watt, 5-watt, or 1-watt operation, and a speaker defeat switch. Send your sound directly to the front-of-house (FOH) or hit the speaker defeat switch and record silently into your DAW without waking the neighborhood.

FEATURES

• (2) EL84 power tubes and (3) 12AX7/ECC83 preamp tubes
• Shared 3-band EQ, Reverb, and Volume Boost Controls
• Power switch with Pilot Light and Standby Switch
• Tube Status Indicator circuit monitors output tube status on the front panel
• Speaker defeat switch and headphone out

• Rated Power: 20 W(rms) into 8 or 16Ω
• Power Consumption: (Domestic) 90 W, 50/60 Hz, 120 VAC
• Tube Complement: 2 x EL84, 3 x 12AX7/ECC83
• Dimensions: 7.25" x 14.00" x 7.75" / 185mm x 356mm x 197mm (height includes feet and handle)
• Weight: 17lbs
• Preamp Input:
  • Impedance: Very High-Z, 1MΩ
• Effects Send:
  • Low Impedance: High-Z, 22kΩ or greater
  • Nominal Output Level: 0 dBV, 1.0 V(rms)
• Effects Return:
  • Impedance: High-Z, 100kΩ
  • Designed Input Level: 0 dBV, 1.0 V(rms)
• Equalization: Custom Low, Mid, & High passive EQ
• Remote Footswitch: (included) Special 2-button unit with LED
  indicators (#00579720)
  • One footswitch for channel selection
    and boost functions.
  • A second footswitch can be used for
    switching reverb and effects loop on
    and off.
• Signal to Noise Ratio: Better than 74dB on all models (compared to full power and dependent on preamp settings)
• MSDI Output:
  • Low Impedance: 600Ω - QuasiBalanced
  • Output Level: Dependent on controls but -12dBu (+/-3dBu) at full power on all models
• USB Outlet:
  • Output Level: Dependent on controls but -6dB (+/-3dB) at full power on all models
• Power Attenuator: Three setting switch for 100%, 25% and 5% of rated power. (20W, 5W and 1W respectively.)
• Headphone Output: Stereo mini-jack with filtered output for driving stereo headphones, 16Ω - 50Ω impedance per channel.
