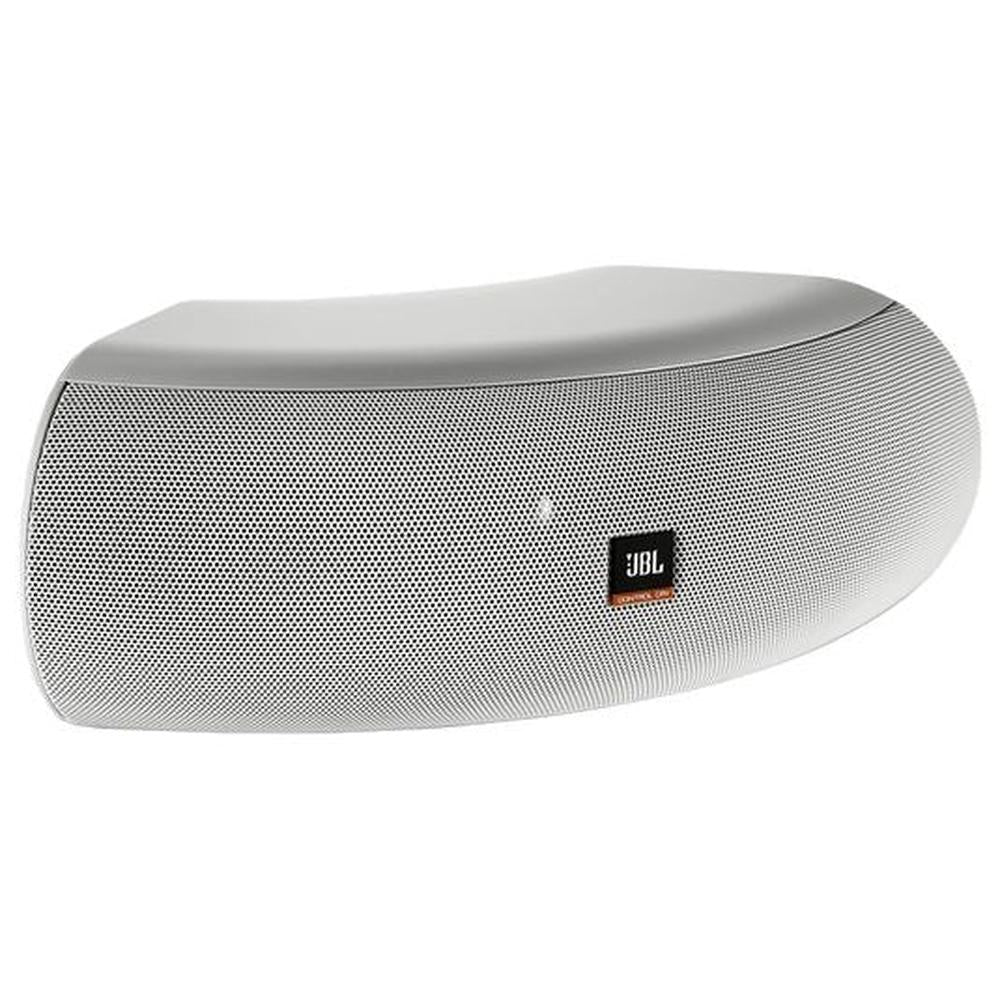

The Control CRV brings high design and versatility to high-finish commercial venues that require a fashionable look. JBL Control CRV loudspeakers are exceedingly versatile, with multiple installation possibilities ; wall-mounted aimed straight out, angled down at a 45° aiming axis, mounted spanning the junction of a wall and ceiling, or spanning the junction of two walls. Two, three, or four (with optional PMB pole-mount bracket) Control CRV loudspeakers can be joined together to create loudspeaker solutions for a wide variety of coverage, appearance, and mounting requirements.

FEATURES

Superb Sound Quality

Dual 100mm (4in) woofers and 19mm (3/4in) titanium-laminate tweeter

Outdoor Rated

IP-34 (per IEC 529)

Built-In 70V/100V multi-tap transformer

For distributed loudspeeker lines, plus 4 ohm direct capability

Unique, Contemporary, Curved Design

With versatile mounting configurations

• Frequency Range: 80 Hz – 20 kHz
• Power Capacity: 75 W continuous pink noise (300 W peak)
• Transformer: Selectable 70V/100V or low impedance
• Usability: Indoor/outdoor capable
• Sensitivity: 89 dB, 1W @1m
• Maximum SPL (1m): 108 dB continuous average long-term (peaks of 114 dB)
• Coverage Angle: 105°H x 80°V
• Impedance: 4 Ohms
• Transformer Taps: 30 W, 15 W, 7.5 W (plus 3.8 W @ 70 V only), plus Thru
• Drivers: LF Driver = Dual 4" (100 mm) ; HF Driver = 3/4" (19 mm)

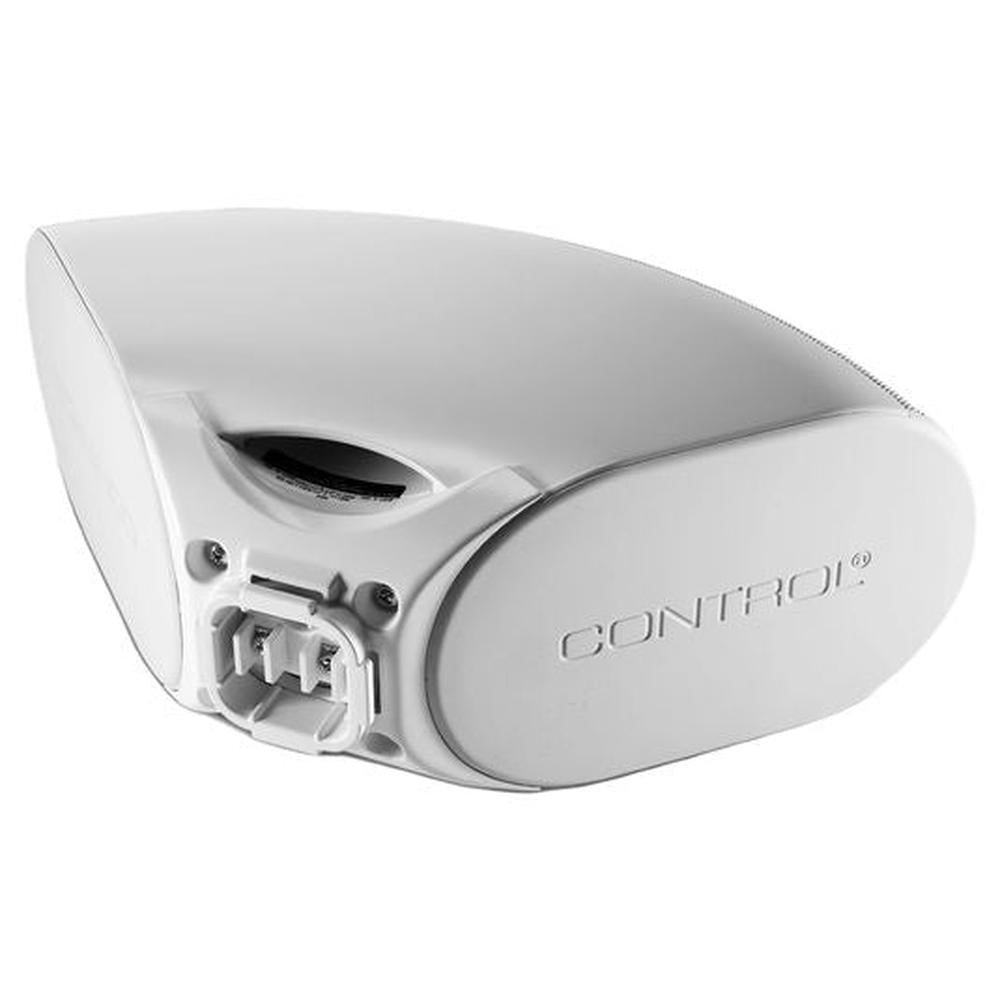

• Input Connectors: Screw-down terminal strip
• Grille: Zinc-plated steel
• Mounting Hardware: Included wall-mount bracket. Optional pole-mount accessory
• Outdoor Capability: IP-34 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray
• Included Accessories: Corner/wall-mount bracket with cap, screws, and trim covers
• Optional Accessories: Pole-Mount Bracket for 4-speaker 360° hanging pendant cluster
