JBL 308P MKII 8" Powered Studio Monitor

What's in the Box?

• 1 x 308P MkII studio monitor
• 1 x Power cord
• 1 x Quick setup guide
• 4 x Peel-off rubber pads

Powered 8" Two-Way Studio Monitor

The next-generation JBL 308P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 308P MkII offers stunning detail, precise imaging, a wide sweet spot, and an impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors, it sports a sleek, and modern design; the JBL 308P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

The new generation of amplified studio monitors. Perfect for recording studios, control rooms, producer studios, and video editing rooms. Excellent reference of mixtures. A studio is incomplete without a pair of 308P MKII. JBL presents the 308P MkII with legendary JBL technology. JBL Image Control Waveguide with refined transducers.

General

• LF Driver Size: 203 mm (8")
• HF Driver Size: 25 mm (1")
• HF Driver Type: Soft dome
• Crossover: 1800Hz 4th order acoustic Linkwitz-Riley
• Power Configuration: Bi-amplified
• HF Driver Power Amp: 56 W Class D
• LF Driver Power Amp: 56 W Class D
• Frequency Response: 45Hz – 20kHz (±3dB)
• Frequency Range: 37Hz – 24kHz (-10dB)
• Low-Frequency Extension: 37Hz (-10dB)
• Maximum Continuous SPL: 102dB
• Maximum Peak SPL: 112dB
• Maximum Peak Input Level: +6dBV / +20.3dBu (-10dBV / +4dBu):
• System Distortion Criteria: <10% THD at maximum output with full compressor/limiter engagement
• Electrical Distortion Criteria: 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• Signal to Noise Ratio: 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Coverage Pattern: 120° x 90° (horizontal x vertical)
• HF Trim Control: -2dB, 0dB, +2dB
• Boundary EQ: LF Shelf @ 50Hz
• AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz

Dimensions

• Height: 419 mm (16.5")
• Width: 254 mm (10")
• Depth: 308 mm (12.1")
• Net Weight: 8.1 kg (17.87 lbs)

Design

• Enclosure Type: Ported
• Enclosure Construction: 15mm MDF
• Enclosure Finish: Matte black PVC
• Baffle Construction: Injection-molded structural ABS

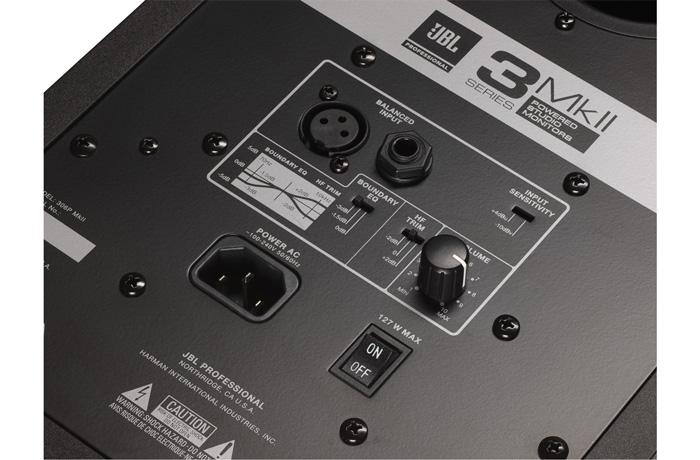

Audio Input

• Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
• Input Sensitivity: 92dB / 1m (-10dBV Input)
