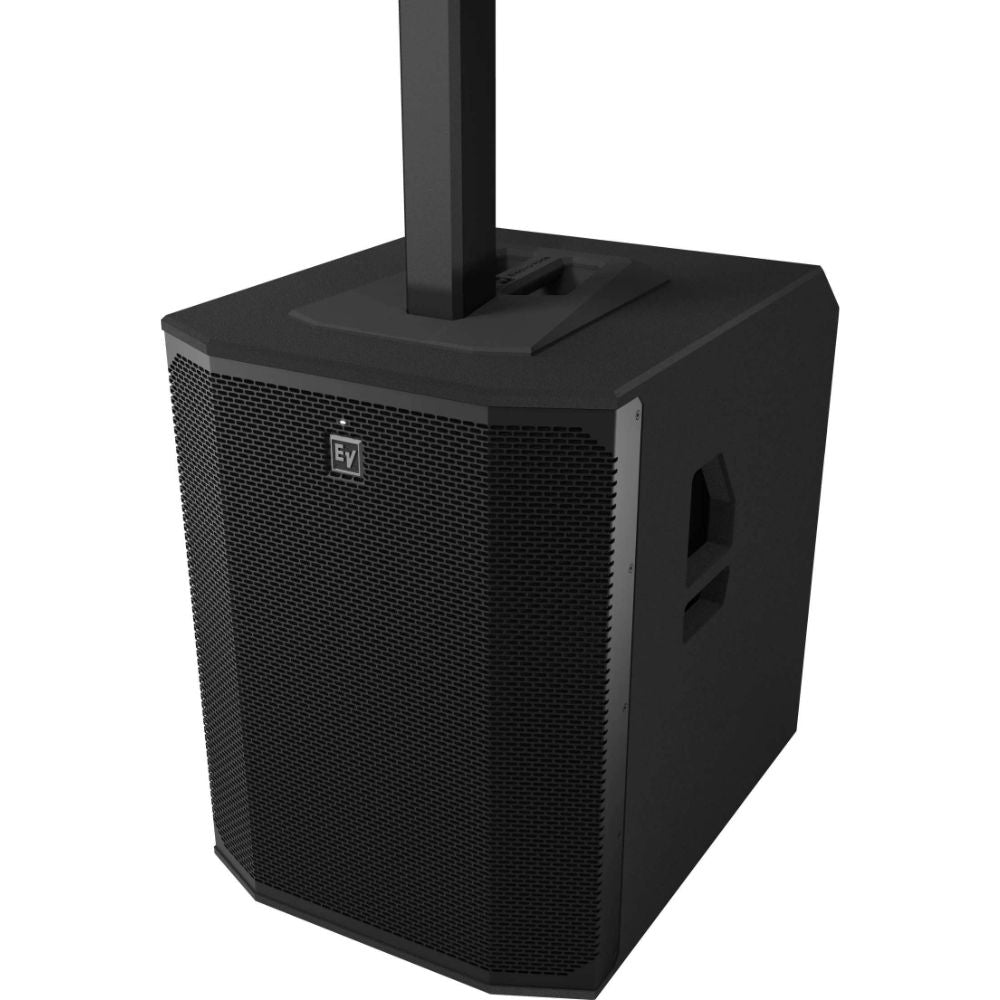

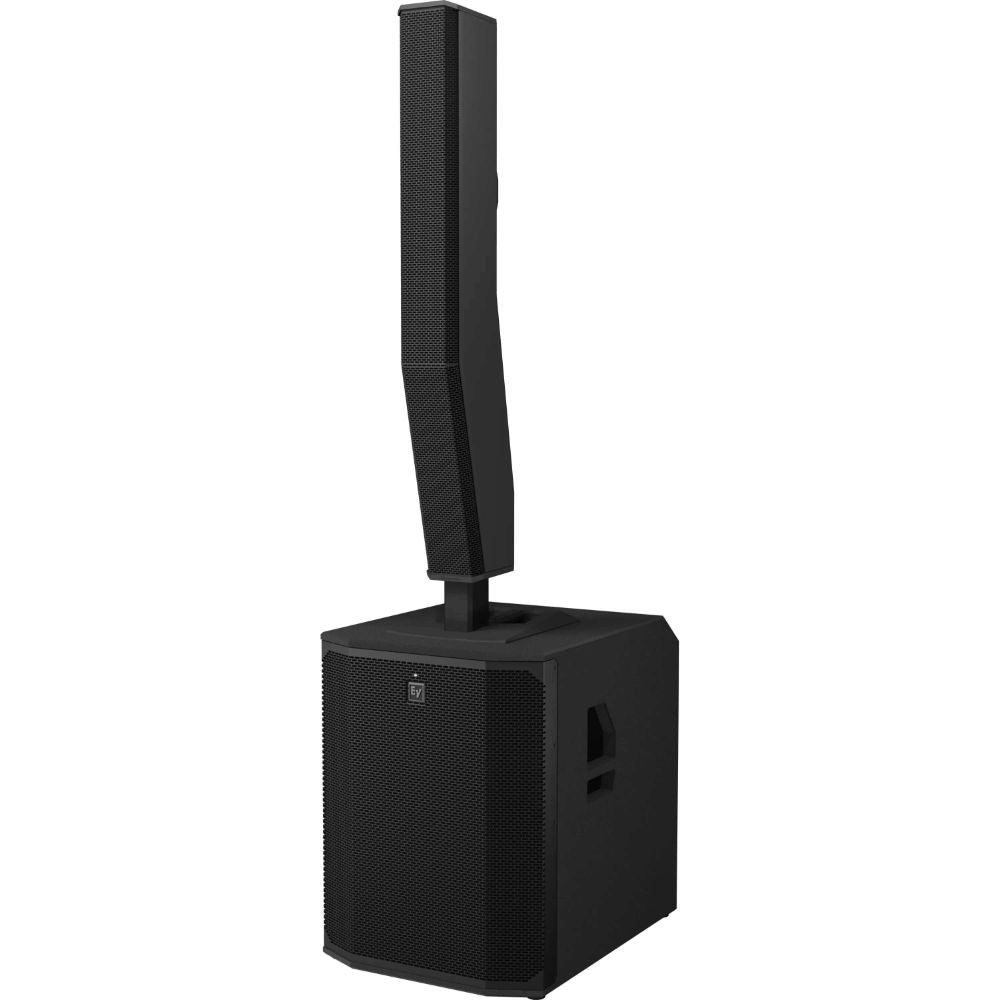

Designed for larger gigs with audiences up to 500 people, the Electro-Voice EVOLVE 90 Portable Bluetooth-Enabled Subwoofer is part of the EVOLVE 90 portable PA system, which consists of a powered subwoofer, magnetic speaker pole, and a column array full-range speaker. The powered subwoofer utilizes an 18" driver and is powered by the integrated amplifier, which when combined with the column array, provides a frequency response of 28 Hz to 20 kHz with a maximum SPL output of 134 dB.

System setup is simple and fast. Slide the magnetically locking mounting pole into the appropriate port on top of the subwoofer, then place the column speaker array on the pole. The EVOLVE 90 subwoofer features an advanced mixer with professional-grade mic preamps and mix functions. High-resolution, low-latency Bluetooth audio streaming ensures professional-quality results for music playback or accompaniment. There are mic and line inputs via XLR-1/4" combo jacks, stereo RCA, and digital AES/EBU (XLR) input jacks as well as XLR Mix and Sub outputs. The EVOLVE 90 subwoofer ships with a power cord.

FEATURES

• Incredible sonic performance for the ultimate sound at larger, high-energy events
• Category-first 18” subwoofer with industry-leading design unleashes the deepest bass
• Lightweight construction from advanced materials for unbeatable portability
• Rapid deployment thanks to simple transport and setup gets the party started faster
• QuickSmart link and Bluetooth Stereo for the ultimate connectivity

• Speaker Type: Active Subwoofer for Column Array
• Enclosure Type: Bass-Reflex
• Total Output Power: 2000 W
• Frequency Range/Response: 28 Hz (-10 dB) - 35 Hz (-3 dB)
• Maximum SPL: 134 dB
• EQ & Filters: No
• Alignment Delay: No
• Digital Signal Processing: No

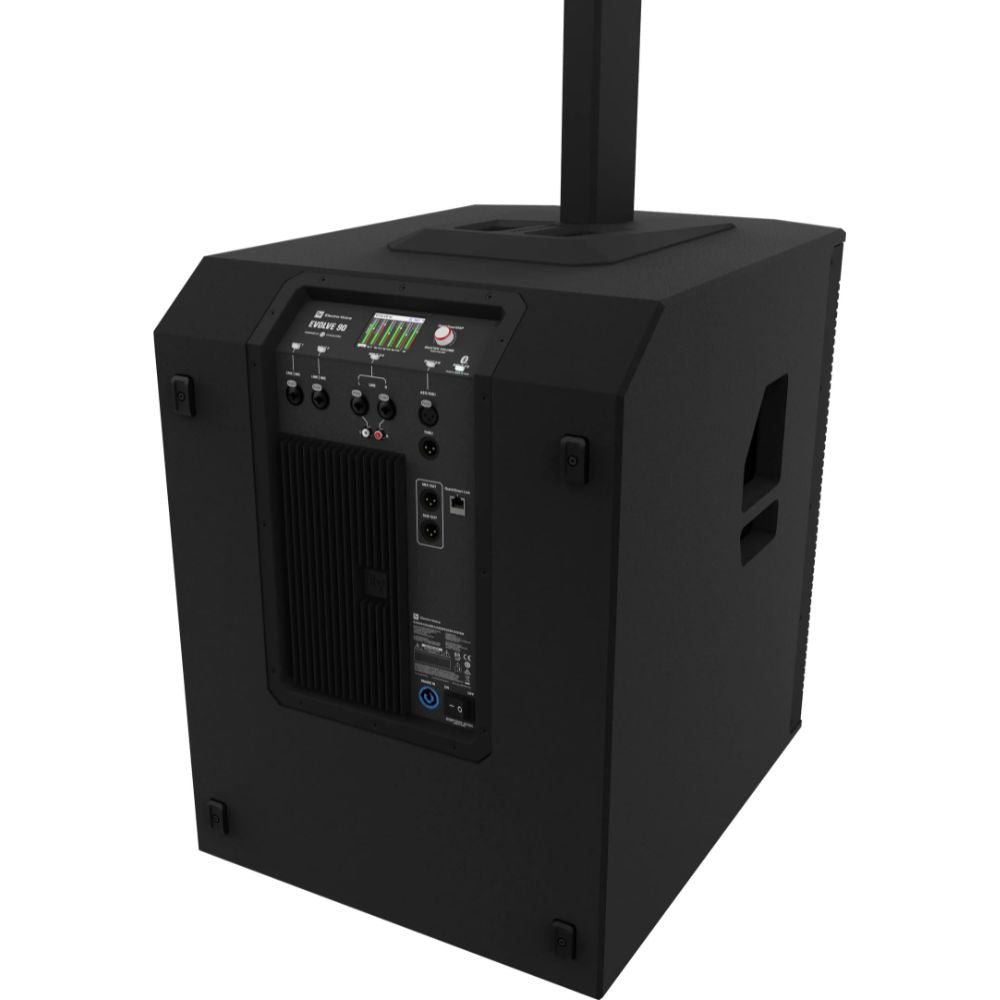

• Audio I/O:
  • 2x Combo XLR-1/4" TRS Mic/Line Input
  • 2x Combo XLR-1/4" TRS Line Input
  • 1x Stereo 2RCA Line Input
  • 1x XLR (AES3) 3-Pin Line Input
  • 1x XLR 3-Pin Line Thru
  • 1x XLR 3-Pin Mix Output
  • 1x XLR 3-Pin Aux/Mix Output
• Network I/O: 1x RJ45 (Link)
• USB I/O: No
• Wireless: Bluetooth
• Mobile App Compatible: Yes, Android & iOS
  • App Name: QuickSmart Mobile
  • Functionality: Adjust Settings, Remote Control
• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• AC Power I/O: 1x powerCON Input
• Color: Black
• Mounting: 1 x Column Array Insert (Top)
• Handles: 1x Each Side
• Construction Material: Metal Grille, Plywood
• Environmental Resistance: No
