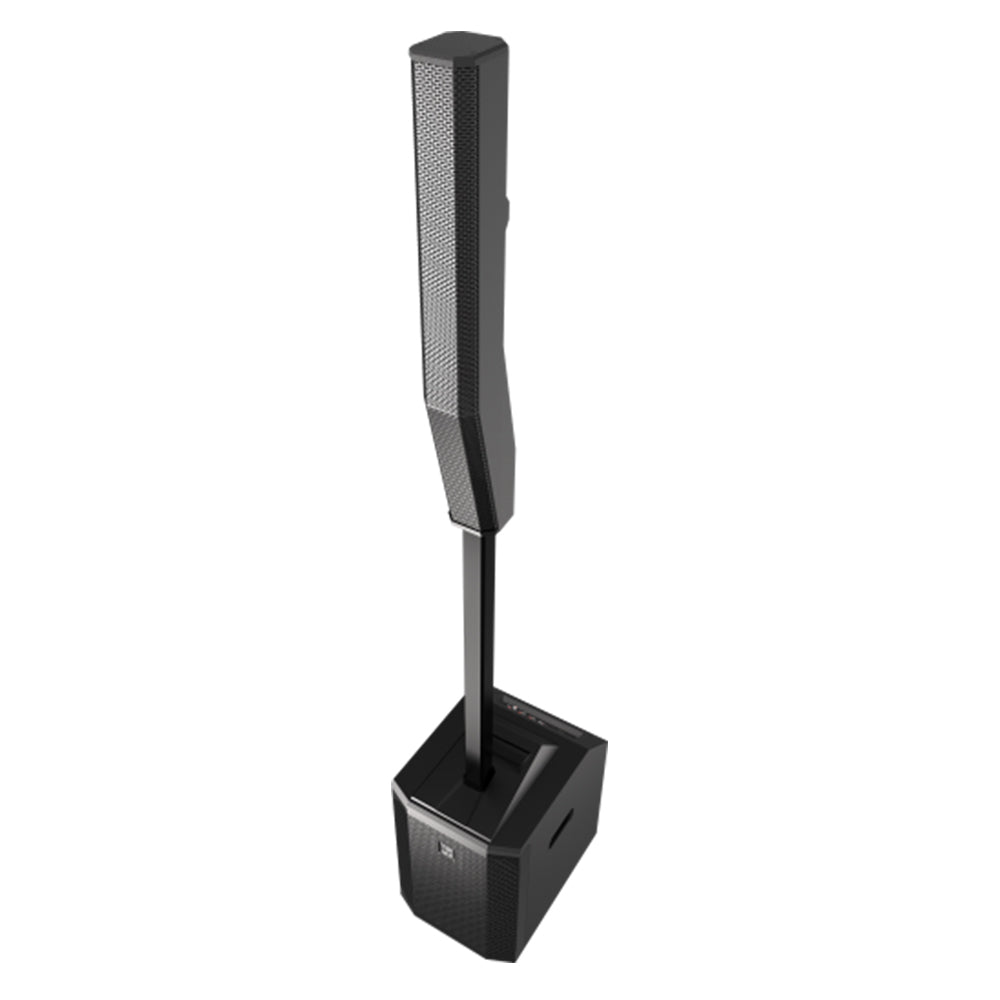

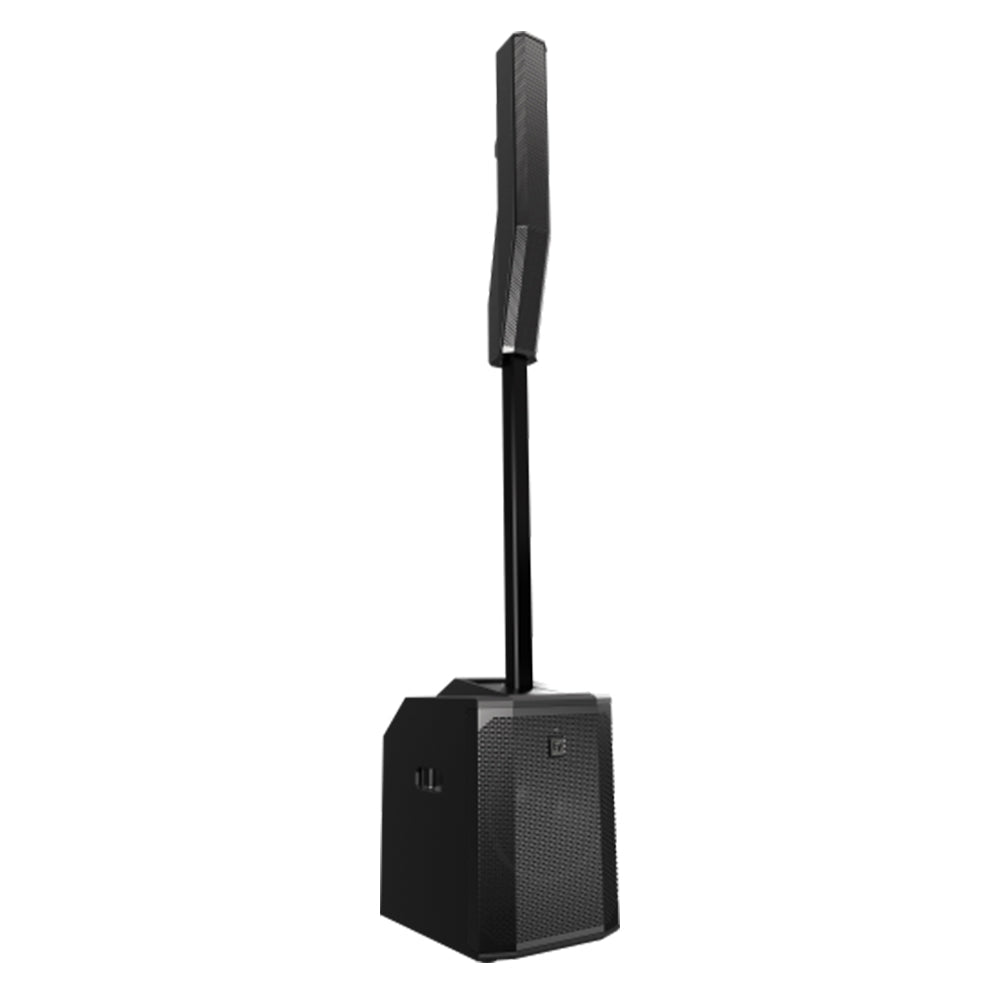

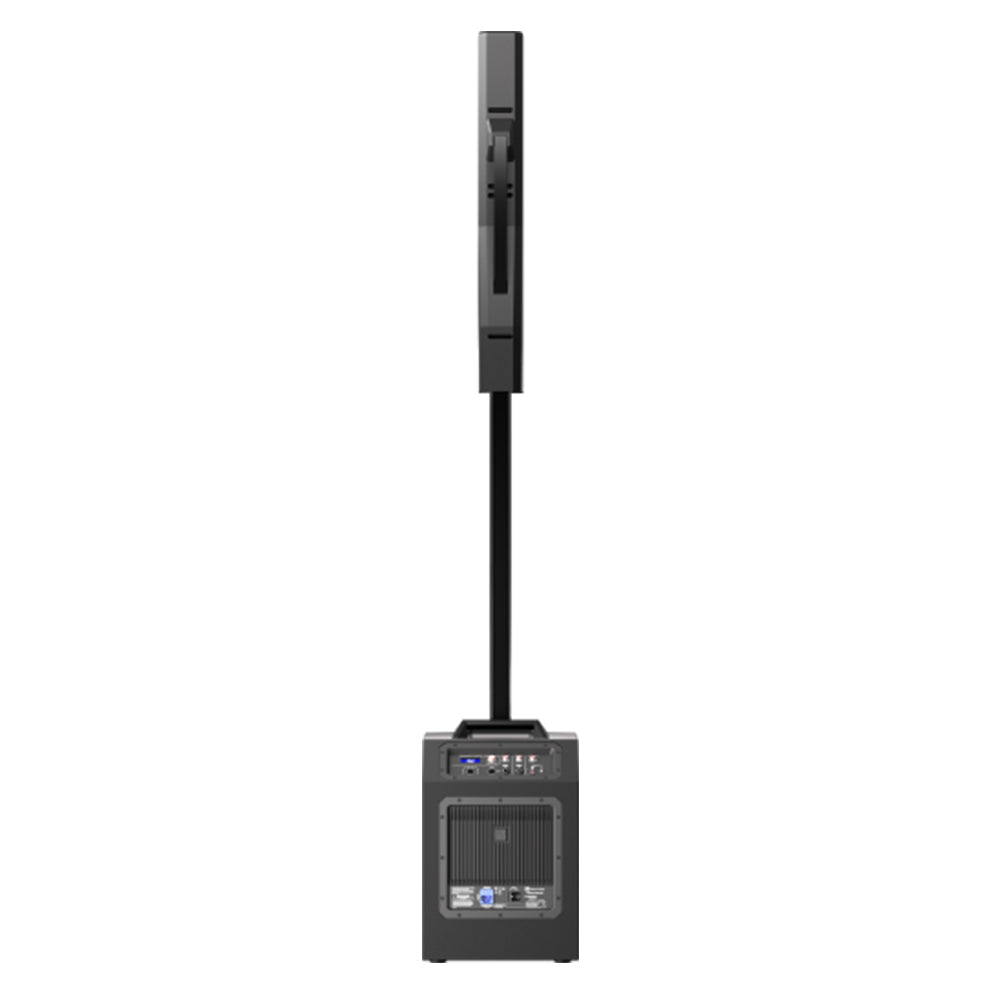

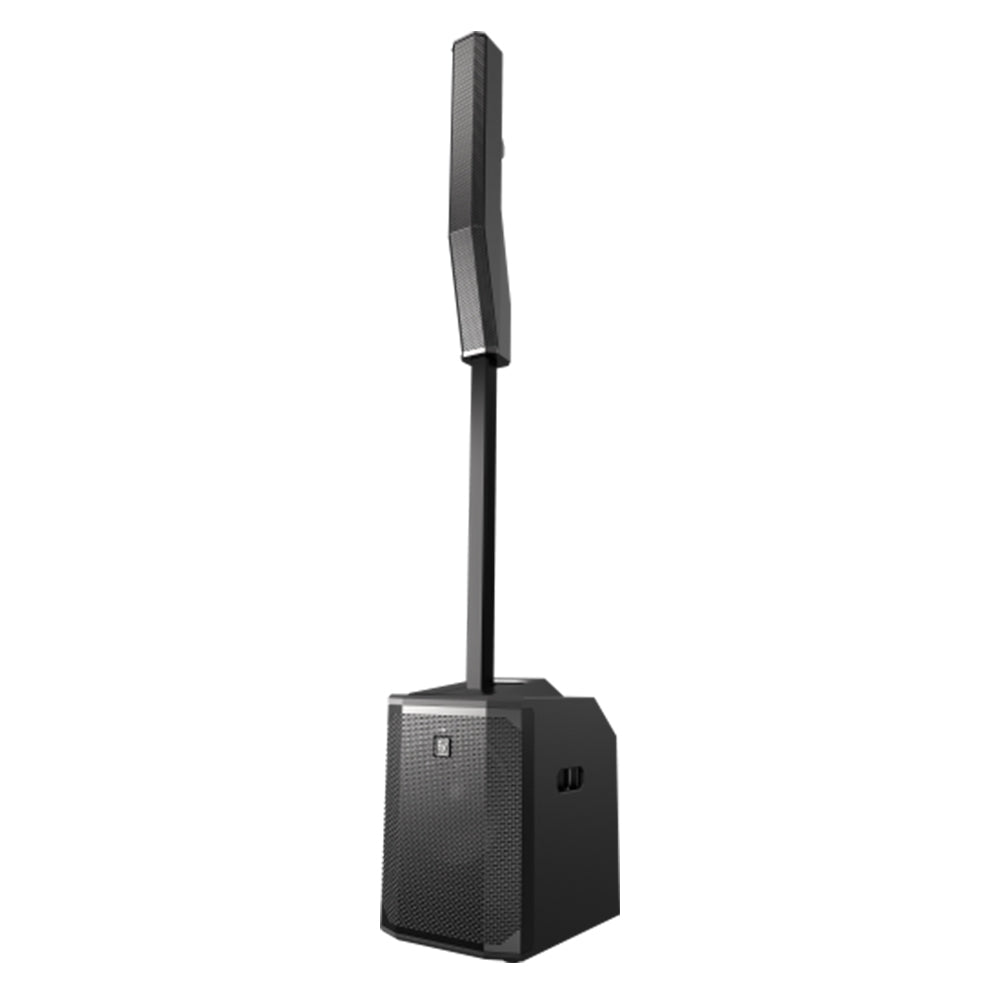

The EVOLVE 50 Portable Column System is a three-component system powered by a 1000W Class D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer and eight 3.5" neodymium drivers in the column array that delivers output to sitting and standing audiences. Easy setup and monitoring comes via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. QuickSmart Mobile app utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously, with high-resolution Bluetooth® audio streaming for wireless music playback in breakout rooms, intermission, and musical accompaniment.

• 3-component, powered, powered, column-style PA system
• 1000W Class D amp
• QuickSmartDSP for easy set up
• 12" sub and 8 - 3.5" drivers
• 120° horizontal and 40° of down-facing vertical coverage

SPECIFICATIONS

• Finish Color: Black
• Connector Types:
• 2x XLR/TRS combo jack input
• 1x 3.5 mm Input
• 1x Stereo RCA input
• 1x Wireless Bluetooth® audio input
• 1x XLR THRU output
• 1x XLR MIX OUT output
• Coverage (Nominal -6 dB):
• H: 120°
• V: 40°
• Crossover Frequency: 200 Hz
• Enclosure Material:
• Sub: 15mm plywood
• Column: poly composite
• Pole: aluminum
• Family: EVOLVE 50
• Frequency Range (-10 dB): 37 Hz – 20k Hz
• Frequency Response (-3 dB): 43 Hz – 20 kHz
• Grille: Steel with black powder coat finish
• Column array speakers: (8) 3.5" full-range
• Woofer driver size: 12"
• HF Power Handling: 500 Watts
• LF Power Handling: 500 Watts
• Max. SPL/1m (calc): 127 dB
• Power Consumption: 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
• Power Rating: 1000 W
• Shipping Weight: 69 lbs (31.3 kg)
• Speaker Type: Full-Range
• Dimensions:
• Subwoofer (DxHxW): 18.5" x 20.9" x 13.6" (471 x 230 x 345 mm)
• Column (DxHxW): 6.9" x 32.5" x 4.0" (172 x 825 x 102 mm)
• Pole (DxHxW): 2.2" x 36.6" x 1.9" (55 x 929 x 48.5 mm)
• Net Weight: 57.87 lbs (26.25 kg)
