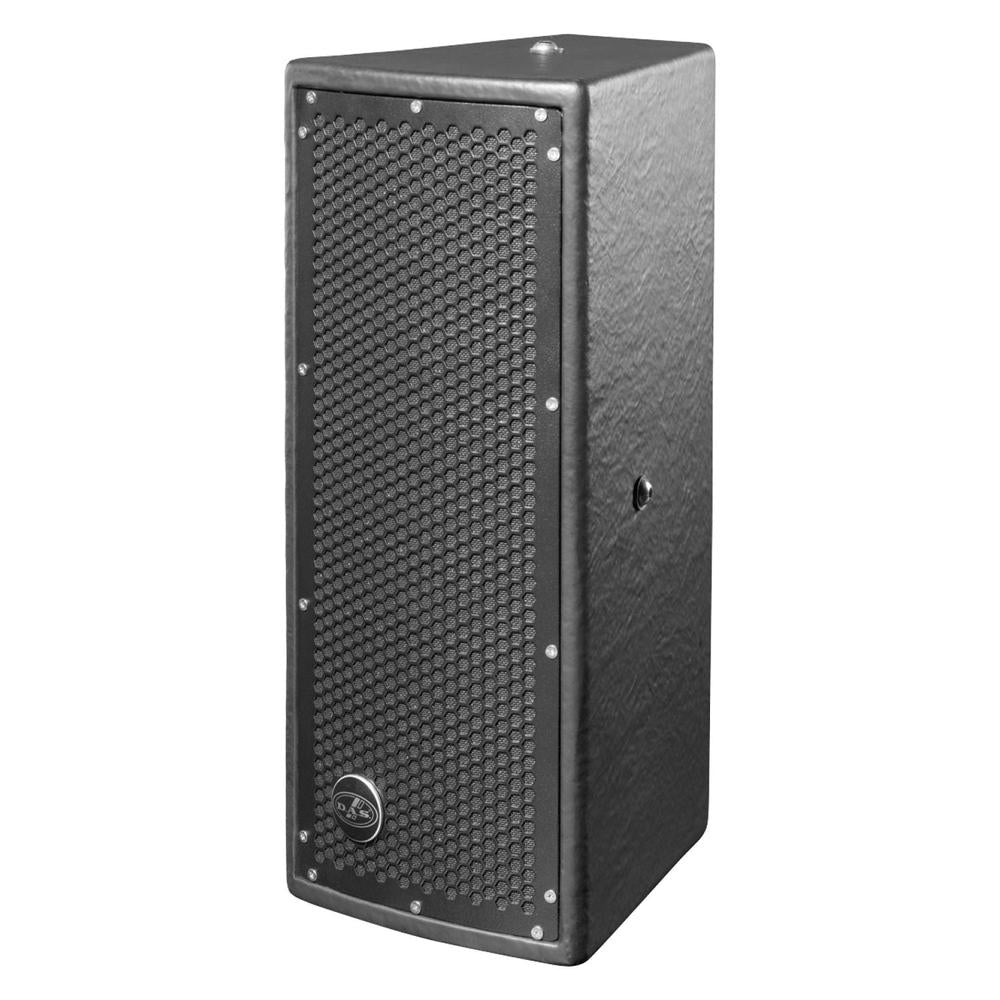

DAS Audio WR-8826-DX 200W Two-Way Full Range Speaker
DAS Audio WR-8826-DX 200W Two-Way Full Range Speaker
The WR-8826-DX employs twin 6B woofers for low frequency reproduction. A 1” annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black, white or military grey depending on the finish.
The WR-8826-DX offers two exposure ratings: CX (covered exposure) for applications where cabinets are covered or protected, and DX (direct exposure) where cabinets are unprotected and directly exposed to the environment. The CX versions are protected with a thick ISO-flex polyurea coating. The DX versions augment the protection rating by employing a fiberglass exterior. Stainless steel fittings and mounting hardware are offered on both versions.
  • Frequency Range (-10 dB): 70 Hz – 22 kHz
  • Horizontal Coverage (-6 dB): 80º
  • Vertical Coverage: 80º
  • Nominal Impedance: 16 ohms
  • RMS Power Handling: 200 W
  • Peak Power Handling: 800 W
  • On-axis Sensitivity 1W/1 m: 93 dB SPL
  • Maximum Peak SPL at 1 m: 122 dB
  • Recommended Amplifier:
    • INTEGRAL-A402
      INTEGRAL-A404
      INTEGRAL-A1002
      INTEGRAL-A1004
      INTEGRAL-A1602
      INTEGRAL-A1604
      INTEGRAL-MA1004
      INTEGRAL-MA1604
  • Recommended Processor:
    • INTEGRAL-M88
      INTEGRAL-MA1604
      INTEGRAL-MA1004
  • Audio Input Connector: Covered Barrier Strip Terminals
  • Audio Output Connector: Covered Barrier Strip Terminals
  • Enclosure Construction: Birch Plywood
  • Enclosure Geometry: Trapezoidal
  • Rigging: M10 Rigging Points
  • Finish: Fiberglass
  • Color: Black

DAS Audio WR-8826-DX 200W Two-Way Full Range Speaker
