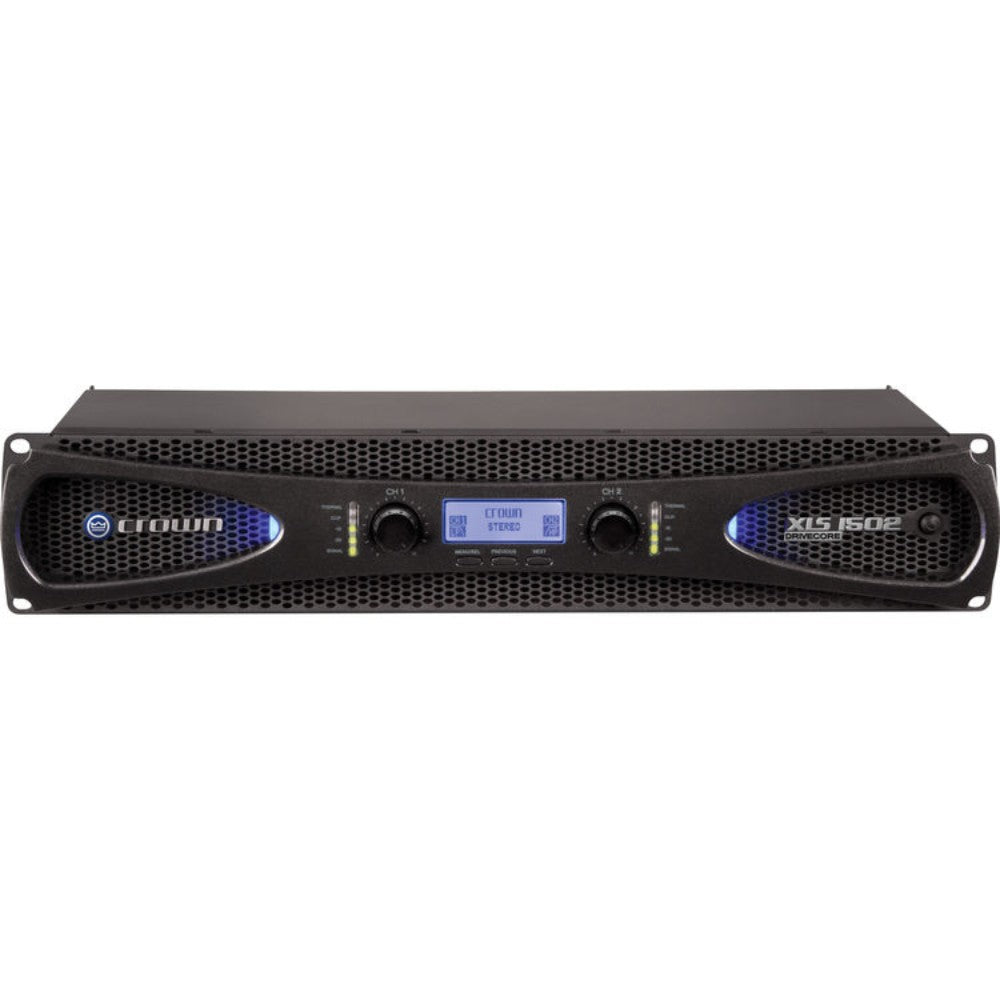

The Crown XLS 1502 Stereo Power Amplifier offers 525W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.

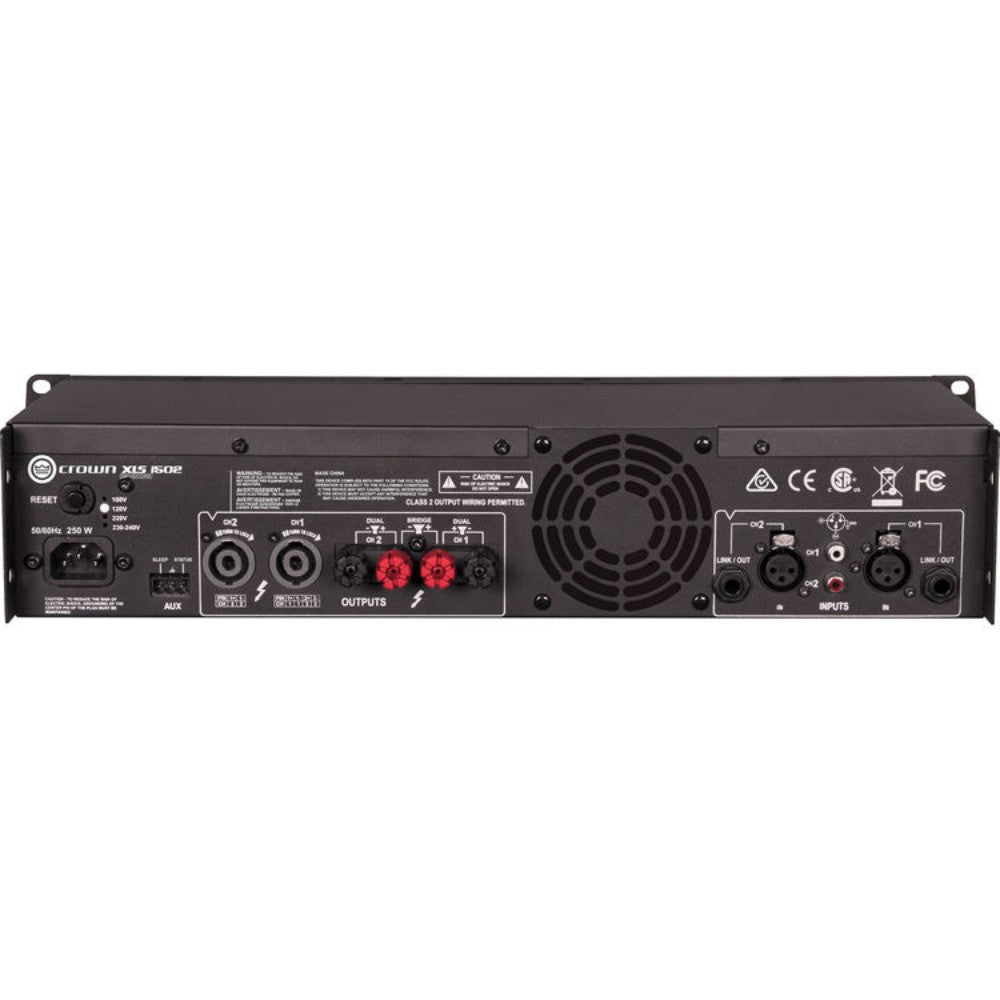

For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both speakON and binding post connectors.

You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.

FEATURES

• Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
• Higher DSP capabilities: More control; has band pass filter per channel
• Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
• Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
• Set sleep mode after specified time without having to press a button
• Security setting disables menu buttons; menu locked/unlocked by entering combination
• System reset allows factory settings to be restored
• Remote power trigger
• Peakx™ Limiters provide maximum output while protecting your speakers
• XLR, 1/4", RCA inputs provide flexibility
• Integrated PureBand™ Crossover System for better performance and control
• Efficient forced-air fans prevent excessive thermal buildup

• Form Factor/Type: Rackmount
• Number of Amplifier Channels: 2
• Load Impedance/Voltage Support: 2 / 4 / 8 Ohms
• Power Rating per Channel:
  • 2x 775 W at 2 Ohms
  • 2x 525 W at 4 Ohms
  • 2x 300 W at 8 Ohms
• Channel Bridging & Power Sharing: 1x 1550 W Bridged at 4 Ohms
  1x 1050 W Bridged at 8 Ohms
• Amplifier Class: Class-D
• Protections: Overload, Thermal
• Frequency Response: 20 Hz to 20 kHz +0/-1 dB (at 1 W)
• Damping Factor: > 200
• SNR/Noise: > 103 dB SNR
• THD/Distortion: ≤ 0.5% THD
  ≤ 0.3% IMD
• Crosstalk: > 85 dB (1 kHz)
  > 55 dB (20 kHz)
• DSP: Yes
• EQ & Filters: Low-Pass Filter, High-Pass Filter, Notch/Band-Pass Filter, Crossover
• Dynamics: Limiter
• Analog Audio I/O:
  • 2x XLR Input
    1x Stereo 2RCA Input
    2x 1/4" Thru
    2x Binding Post Pair Output
    2x speakON NL4 Output
• Input Power: 100 to 240 VAC, 50 / 60 Hz
• AC Power Connector: 1x IEC
• Power Consumption: 425 W
• Display: Backlit LCD
• Rackmount Size: 2 U
• Cooling: Fan
• Dimensions: 19 x 7.7 x 3.5" / 48.3 x 19.6 x 8.9 cm
