Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, “bucket brigade” analog delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today’s music styles. Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.

WAZA CRAFT : The Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the new Waza Craft series. In Japan, “Waza” is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. Being made in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully-selected analog components, refined circuitry, and meticulous attention to detail.

FEATURES

• Waza Craft innovation for a premium analog tone experience
• True reproduction of the vintage DM-2 Delay sound
• Premium all-analog circuit with BBD (bucket brigade) delay line
• Standard mode for authentic DM-2 tone with 20-300 ms delay time
• Custom mode provides warm-yet-clear delay sound and maximum 800 ms delay time
• Expression pedal input for foot control of delay time
• Two output jacks allow separate output of delay and direct sounds
• Made in Japan
• BOSS five-year warranty

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Delay Time: Standard Mode: 20 ms to 300 ms, Custom Mode: 40 ms to 800 ms

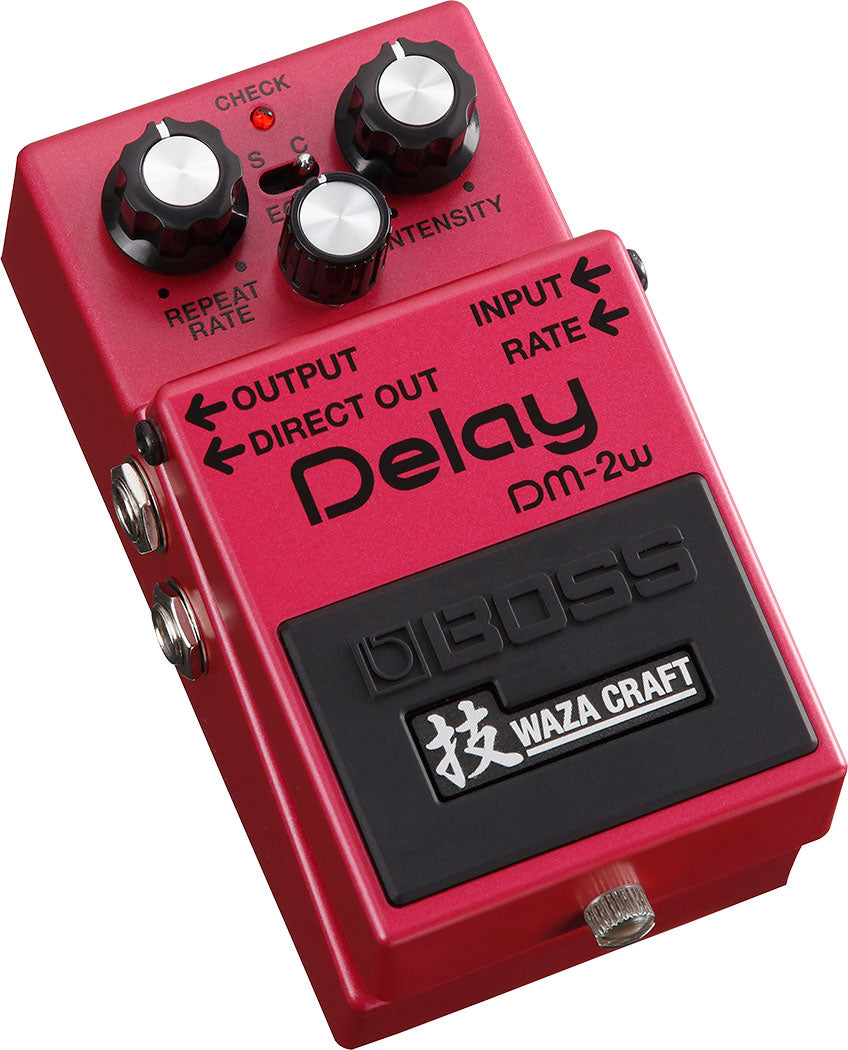

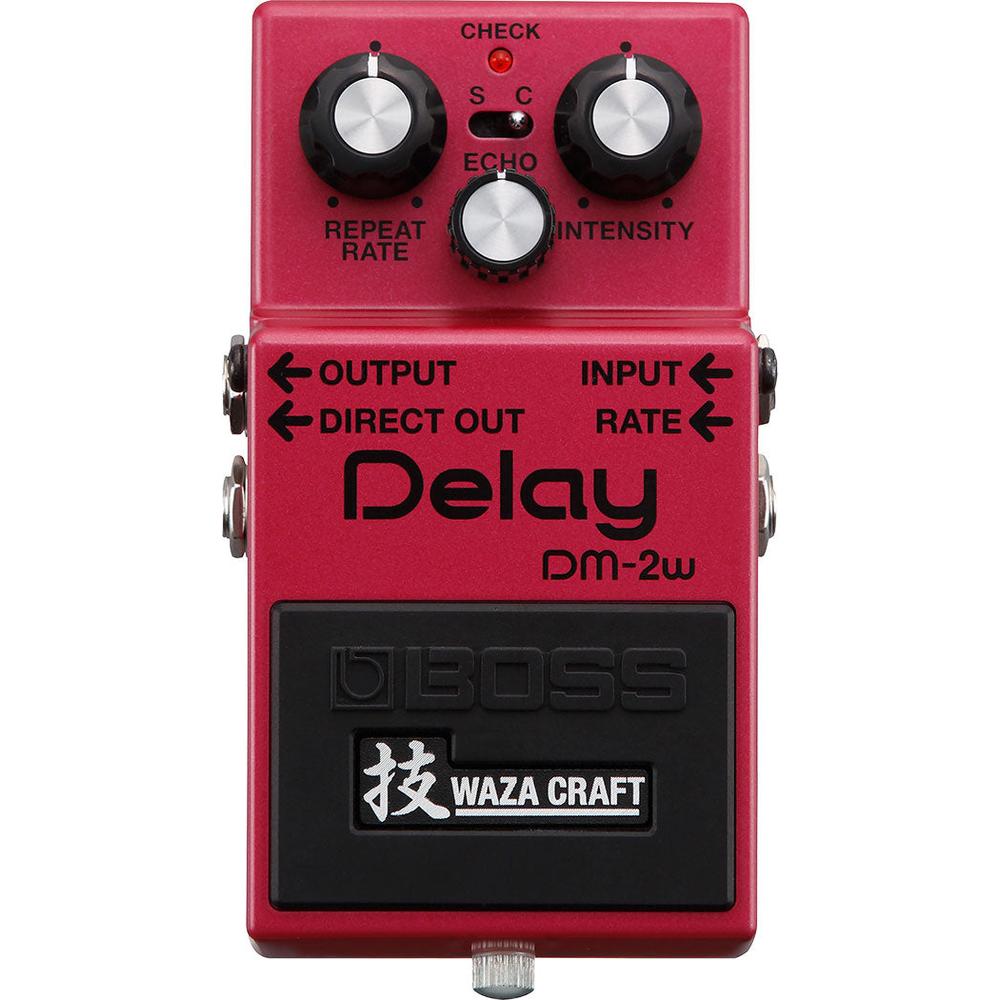

• Controls:
  • Pedal switch
  • REPEAT RATE knob
  • INTENSITY knob
  • ECHO knob
  • Mode switch
• Indicator: CHECK indicator (Serves also as battery check indicator)
• Connectors:
  • INPUT jack: 1/4-inch phone type
  • OUTPUT jack: 1/4-inch phone type
  • DIRECT OUT jack: 1/4-inch phone type
  • RATE jack: 1/4-inch TRS phone type

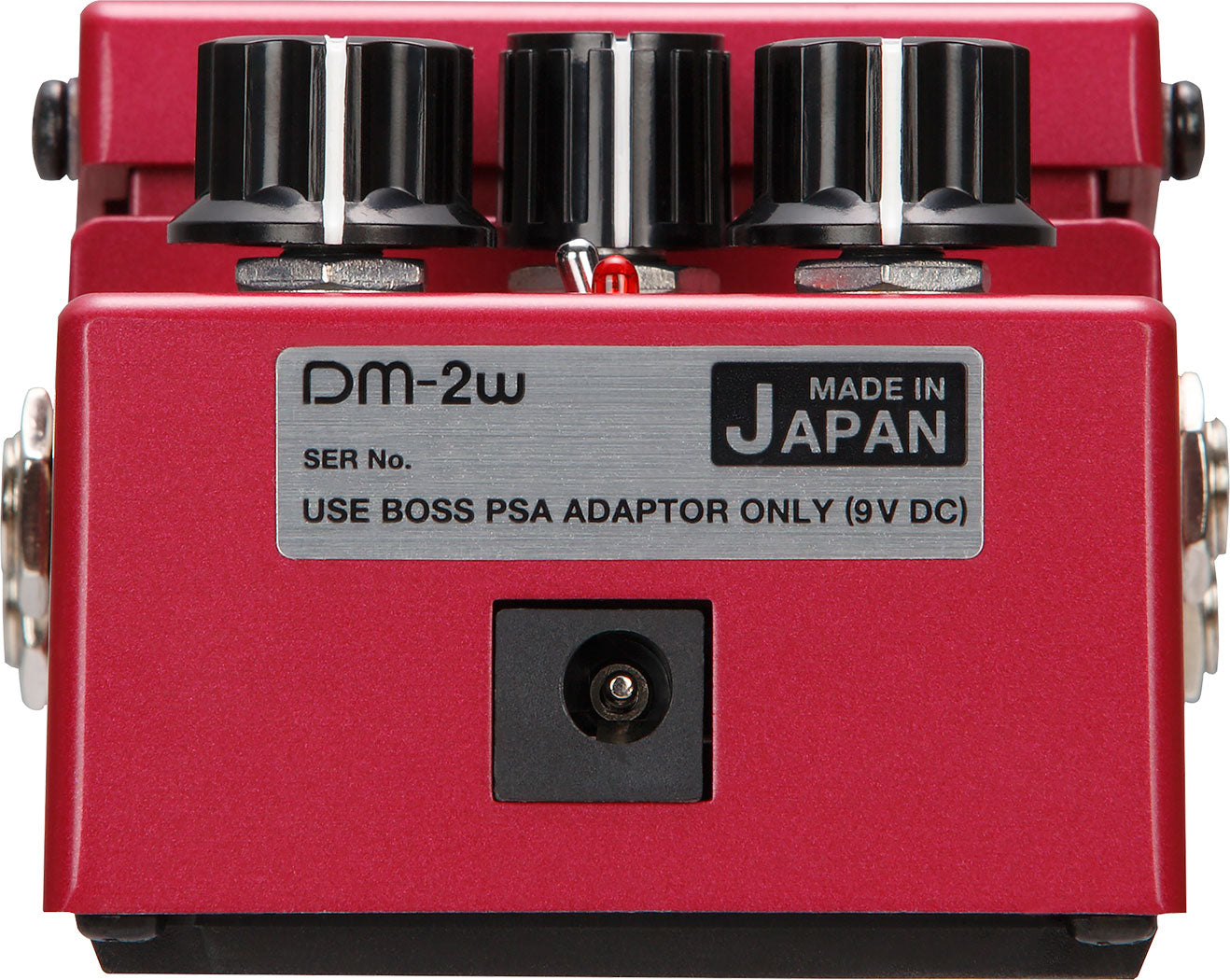

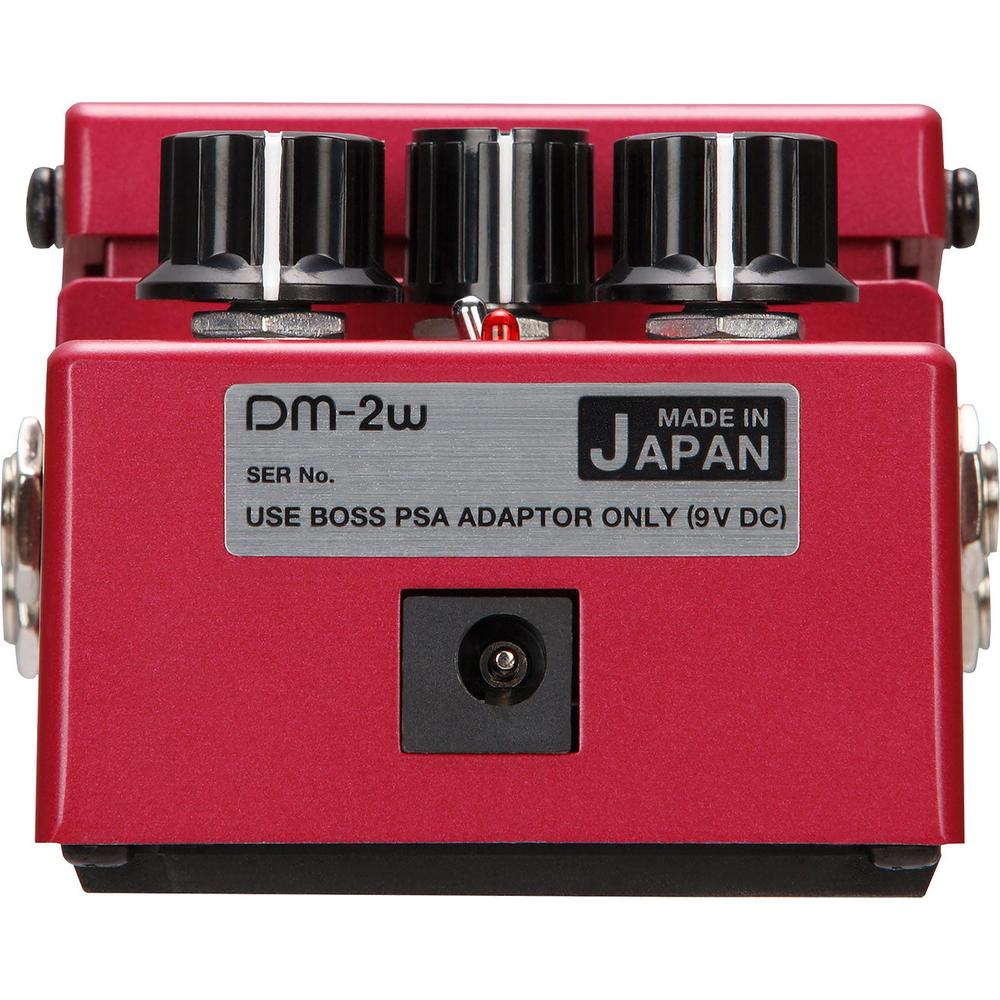

  • DC IN jack
• Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
  AC adaptor (PSA series: sold separately)
• Current Draw: 35 mA
• Expected battery life under continuous use: Alkaline: Approx. 15 hours, Carbon: Approx. 5 hours
