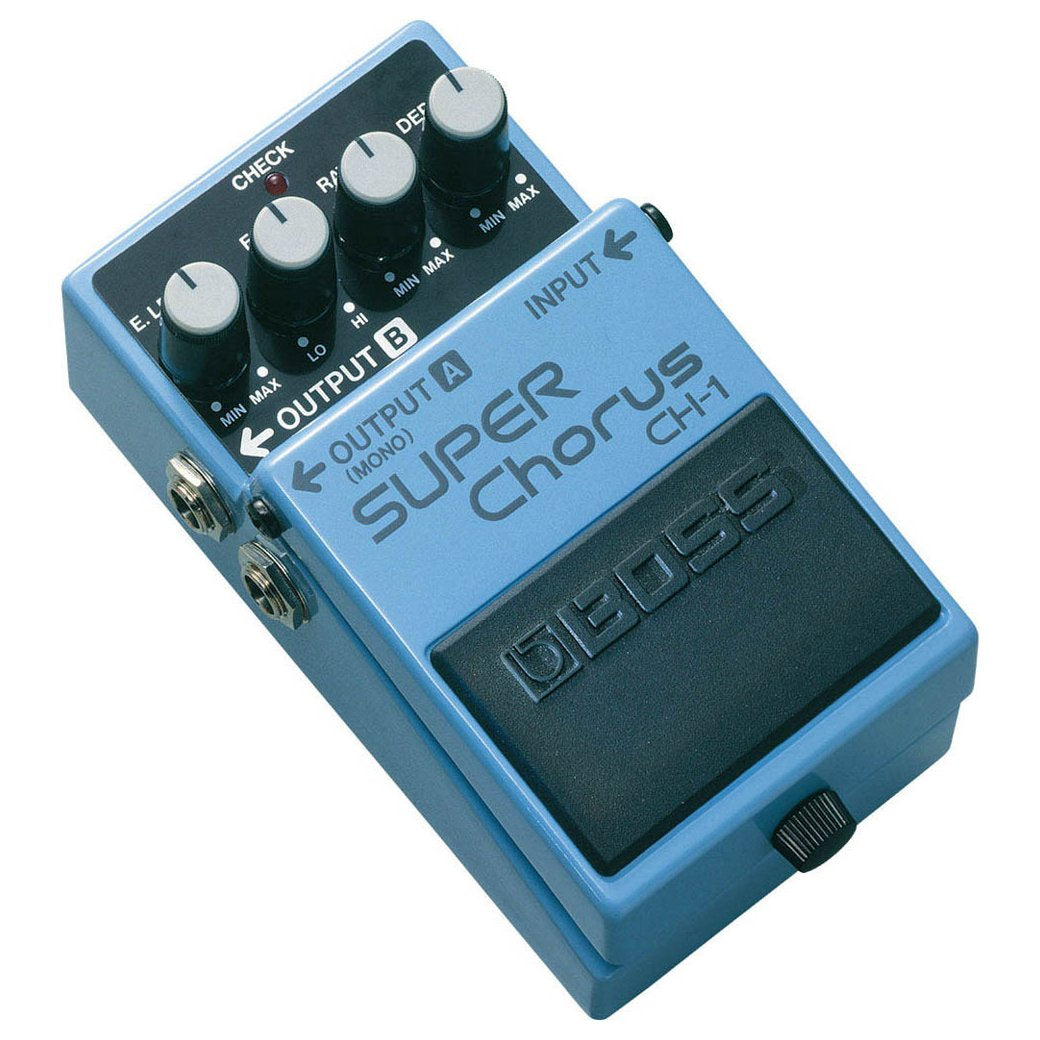

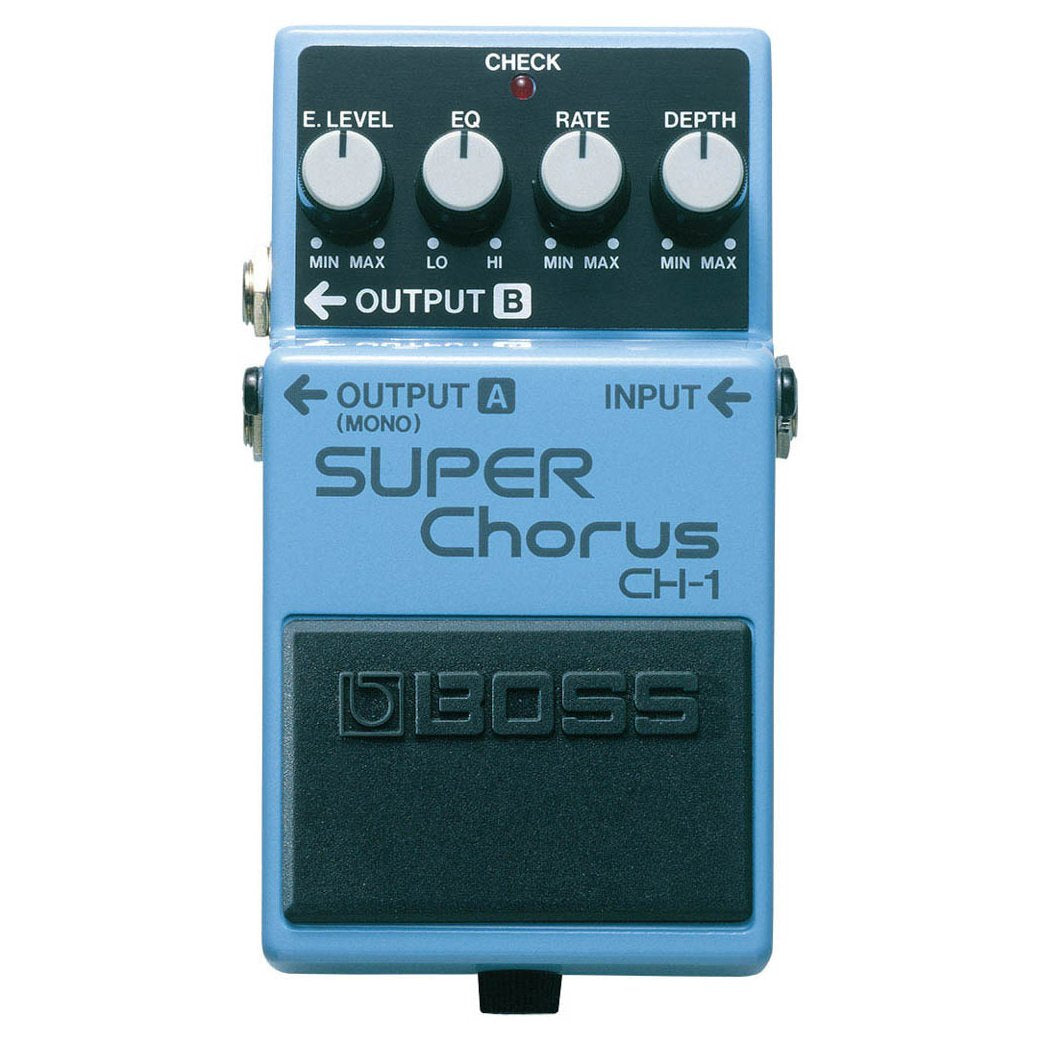

A UNIQUE STEREO CHORUS

The CH-1 Super Chorus pedal delivers a clean classic chorus sound with crystal-clear highs and a unique stereo effect, variable between left and right speakers.

• Classic BOSS chorus pedal with clean, brilliant sound for guitar and keyboards
• Effect Level, EQ, Rate and Depth knobs allow for precise shaping of sound
• Features Mono input and Stereo outputs for connection to dual amps
• BOSS five-year warranty

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass

• DEPTH knob
• RATE knob
• EQ knob
• E.LEVEL knob
• Pedal switch
• Indicator: CHECK indicator (Used for indication of check battery)

• INPUT jack: 1/4-inch phone type
• OUTPUT A/B jack: 1/4-inch phone type
• DC IN jack



• Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)
• Current Draw: 25 mA
• Expected battery life under continuous use
• Carbon: Approx. 11.5 hours
• Alkaline: Approx. 26.0 hours
• *These figures will vary depending on the actual conditions of use.

• Accessories
• Owner's manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Carbon-zinc battery (9 V, 6F22)

• Options (sold separately)
• AC adaptor: PSA series

• Width
• 73 mm
• 2-7/8 inches
• Depth
• 129 mm
• 5-1/8 inches
• Height
• 59 mm
• 2-3/8 inches
• Weight (including battery)
• 400 g
• 15 oz
