The Audio-Technica ATW-3211/892THDE2 3000 Series Fourth Generation is a frequency-agile, true diversity UHF wireless microphone system designed to give users the power and flexibility to operate within the congested UHF spectrum. The system includes an ATW-R3210 receiver, an ATW-T3201 bodypack transmitter, and a beige BP892cH-TH MicroSet omnidirectional condenser headworn microphone, and is designed to provide intelligible, natural audio while minimizing potential interference, for stage, television, lecture, event presentation, or house of worship applications and give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.
- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
- Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Network-enabled system, featuring the ATW-R3210N receiver, offers network monitoring and control via Wireless Manager software
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
- New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
OVERALL SYSTEM SPECIFICATIONS | |
---|---|
Operating Frequencies | Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations. |
Minimum Frequency Step | 25 kHz |
Modulation Mode | FM |
Maximum Deviation | ATW-T3201: ±38 kHz (THD:10%) ATW-T3202: ±36 kHz (THD:10%) |
Dynamic Range | ATW-T3201 Mic input: > 115 dB (A-weighted), typical ATW-T3201 Inst input: > 112dB (A-weighted), typical ATW-T3202: > 115 dB (A-weighted), typical |
Total Harmonic Distortion | <1.0% (at 1 kHz, ±17.5 kHz deviation) |
Operating Range | 100 m (328') Open range environment with no interfering signals. |
Operating Temperature Range | -5° C to +45° C (23° F to 113° F) |
Frequency Response | ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element |
Maximum Simultaneous Use (Recommended) | 40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent |
RECEIVER SPECIFICATIONS | |
---|---|
Receiving System | True Diversity |
Image Rejection | 60 dB nominal |
RF Sensitivity | 20 dBuV at 60 dBA S/N ratio (50 ohms termination) |
Antenna Power | 12 V DC, 160 mA (combined) |
Maximum Output Level | XLR, balanced: +14 dBV 6.3 mm (1/4"), unbalanced: +8 dBV |
Antenna Input | BNC-type, 50 ohms |
Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
Dimensions | 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H) |
Net Weight | 1100 g (38.8 oz), without accessories |
Accessories Included | Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters; AT8631 joining plate (ATW-R3210N only) |

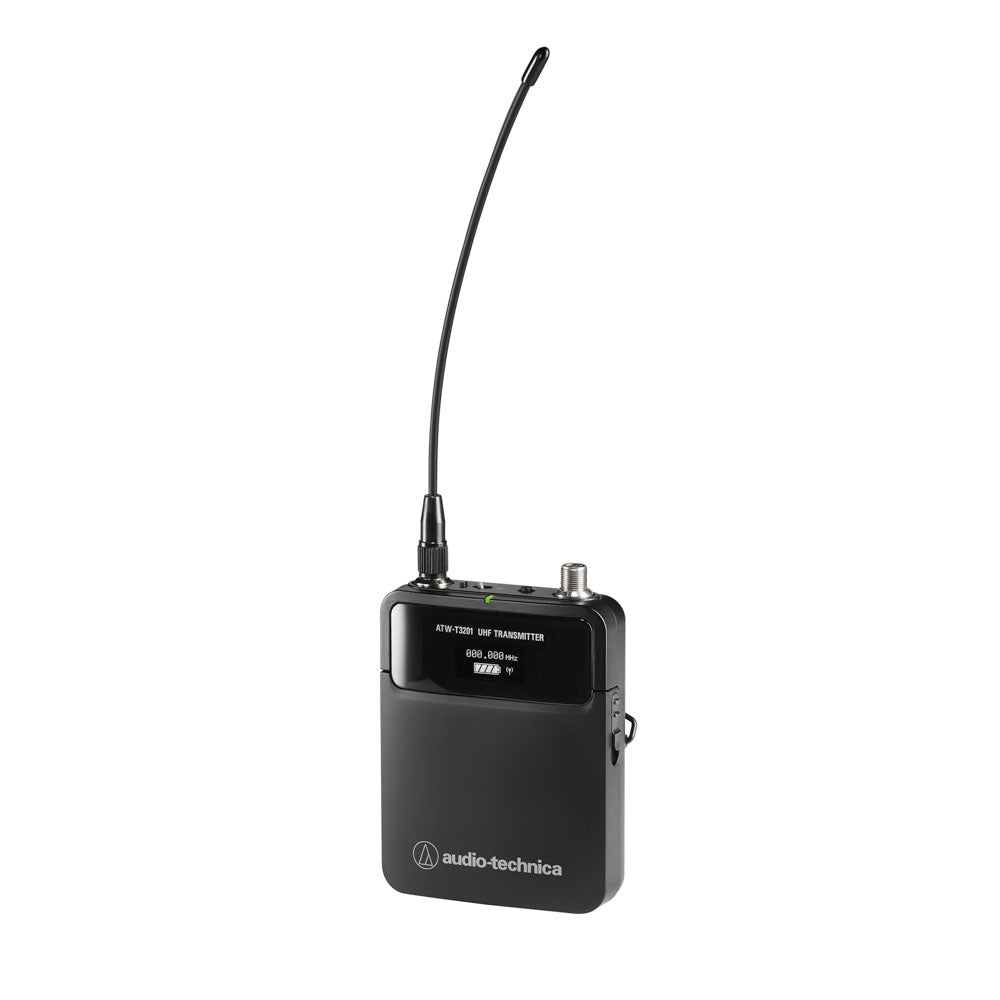

BODY-PACK TRANSMITTER SPECIFICATIONS | |
---|---|
RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
Spurious Emissions | Following Federal and National Regulations |
Input Connections | cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V |
High-pass (low-freq. roll-off) | 125Hz, 12dB/octave |
Batteries | Two 1.5V AA, not included |
Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
Dimensions | 64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H) |
Net Weight | 102 g (3.6 oz), without batteries |
