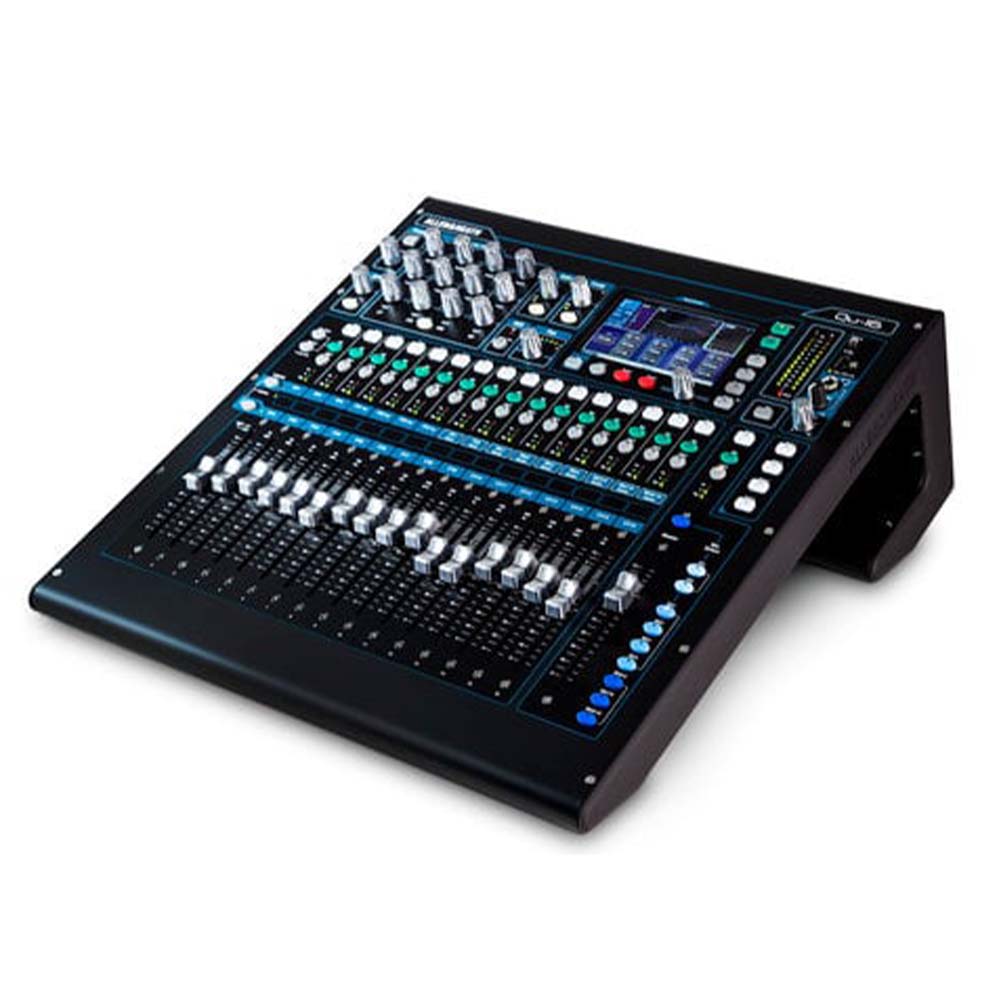

With the feature-packed Chrome Edition, Allen & Heath's Qu-16C reshapes digital mixing by combining innovative design and exceptional functionality to create a superb professional mixing experience. Teeming with features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, Qu-16C has the power and pedigree to deliver class-leading audio performance.
Qu-16 features sixteen AnalogiQTM digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage, which have been closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, which are matched to 24bit digital to analogue converters to deliver the required high quality output. The AnalogiQTM preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.
Allen & Heath Qu-SB Portable Digital Mixer Features:
- 19” Rack Mountable
- 16 Mono Mic/Line Inputs (TRS + XLR)
- Recallable AnaLOGIQTM Preamps
- 3 Stereo Inputs (TRS)
- 12 Mix Outputs (XLR)
- 7 Monitor Mixes (4 mono + 3 stereo)
- 4 FX Engines
- 2 dedicated FX Sends / Returns
| Number of Analog Input Channels | 16 |
| Number of Mic Preamps | None |
| Number of Analog Output Channels | 6 |
| Mix Routing | 22 x Return 24 x Send 4 x Stereo FX Return |
| Groups | 4 x Mute Group |
| Presets | None |
| Display | 5" Touchscreen |
| Display Resolution/Color | Main Display: 800 x 480 |
| Faders | 16 x 3.9" / 100 mm Motorized |
| Meter Range | -48 to -3 dBFS Peak/Clip (+19 dBu at XLR Output) |
| Meter Calibration | 0 dB on Meter = -18 dBFS (+4 dBu at XLR Output) |
| Gain/Trim Range | Line: ±24 dB (Stereo Channels) Mic/Line: -5 dB to 60 dB (in 1 dB Steps) |
| Input Polarity | Normal/Reverse |
| Gate Parameters | Threshold: -72 to +18 dBu Depth: 0 to 60 dB Attack: 50 μs to 300 ms Hold: 10 ms to 5 sec Release: 10 ms to 1 sec |
| Compressor Parameters | Threshold: -46 to 18 dBu Ratio: 1:1 to ∞:1 Attack: 300 μs to 300 ms Release: 100 ms to 2 sec Knee: Soft / Hard |
| EQ | FX Returns: 4-Band Parametric Input Channels: 4-Band Parametric |
| EQ Parameters |
1 x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2 x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1 x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) |
| Graphic EQ | 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz |
| Filters | High-Pass: 20 Hz to 2 kHz, 12 dB/Octave |
| Channel Output/Source Monitoring | AFL, PFL, Post-Preamp, Post-EQ, Post-FX |
| Built-In Effects | Reverb Delay Reverb (Gated) ADT 2 x Chorus Phaser Flanger |
| Real Time Analyzer | 31-Band 1/3 Octave, 20 Hz to 20 kHz |
| Audio Delay | Adjustable Up to 85 ms |
| Sample Rates | 48 kHz AES3 Output: 48 kHz Stereo Record: 48 kHz Stereo Playback: 44.1 / 48 kHz Multitrack Playback/Multitrack Record: 48 kHz |
| Bit Depth | A/D Conversion: 24-Bit Delta Sigma D/A Conversion: 24-Bit Delta Sigma Stereo Record: 24-Bit Stereo Playback: 16 / 24-Bit Multitrack Playback, Multitrack Record: 24-Bit |
| Latency | 1.2 ms (Mic Input to XLR Output) 0.7 ms (Mic Input to AES Output) |
| dBFS Reference Level | +18 dBu = 0 dBFS |
| Headroom | +18 dB |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB |
| Max Input Level | XLR Input: +19 dBu 1/4" TRS Input: +29 dBu 1/4" Aux Input: +22 dBu 1/8" / 3.5 mm Input: +19 dBu |
| Output Level | 1/4" TRS / XLR Output: 22 dBu (Max) 4 dBu (Nominal) |
| Analog Dynamic Range | 112 dB |
| I/O Impedance | AES3 Output: 110 Ohms XLR Input: > 5 Kilohms 1/4" TRS Input: > 10 Kilohms Stereo Input: > 7 Kilohms 1/4" TRS, XLR Output: < 75 Ohms |
| THD+N | 0.0005% at Unity Gain 0.001% at +30 dB Gain |
| Signal Generator | Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix) |

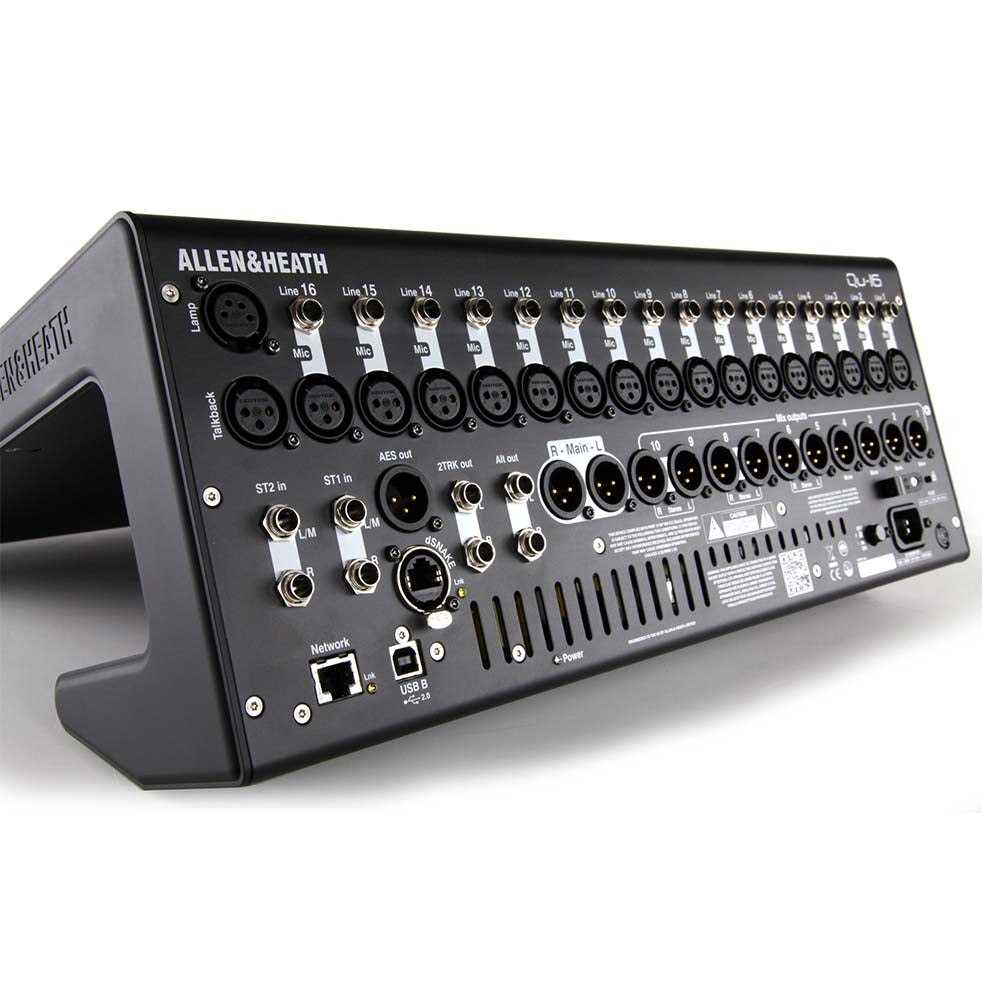

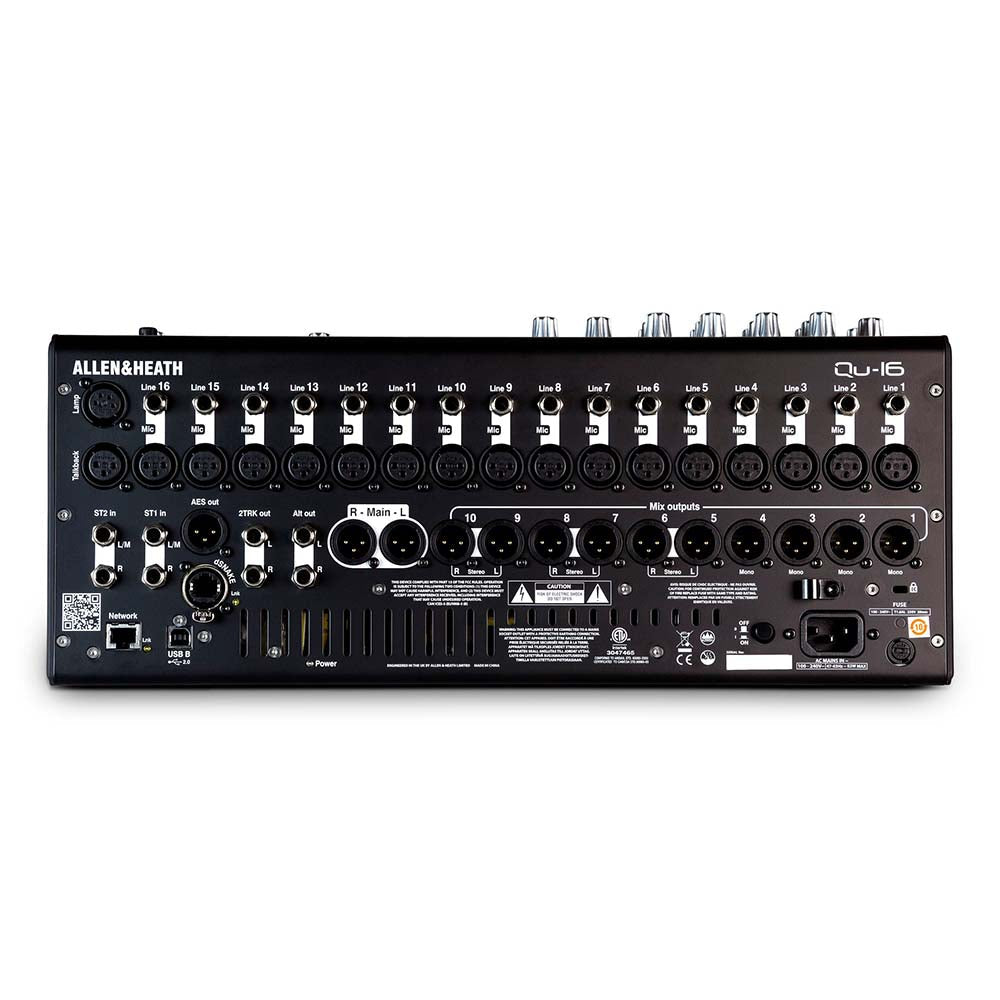

| Analog Inputs | 1 x XLR 3-Pin Talkback Input 16 x 1/4" TRS Balanced Line Input 16 x XLR 3-Pin Mic Input 4 x 1/4" TRS Balanced Input (2 Stereo Pairs, Half-Normalled) 1 x 1/8" / 3.5 mm TRS Unbalanced Input |
| Analog Outputs | 4 x XLR 3-Pin Mono Mix Output 6 x XLR 3-Pin Mix Output (3 Stereo Pairs) 2 x XLR 3-Pin Main Output (1 Stereo Pair) 2 x 1/4" TRS Mix Output (1 Stereo Pair) 2 x 1/4" TRS Aux Output (1 Stereo Pair) |
| Digital I/O | 1 x RJ45 (Network) 1 x XLR AES3 Output 1 x etherCON dSNAKE (I/O) |
| MIDI I/O | None |
| USB | 1 x USB Type-A (External Memory) 1 x USB Type-B (USB 2.0, Audio Streaming) |
| Max Multitrack Recording | 18 Tracks |
| File Format Support | WAV |
| Internet Connection | Yes |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 82 W (Maximum) |
| Rackmount Size | 1 RU |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Dimensions | 17.4 x 19.7 x 7.4" / 44.2 x 50 x 18.8 cm (Desk-Mounted) 19 x 19.1 x 7.5" / 48.3 x 48.5 x 19.1 cm (Rack-Mounted) |
| Weight | 22 lb / 10 kg |
| Package Weight | 30 lb |
| Box Dimensions (LxWxH) | 26.5 x 23.5 x 13.5" |
