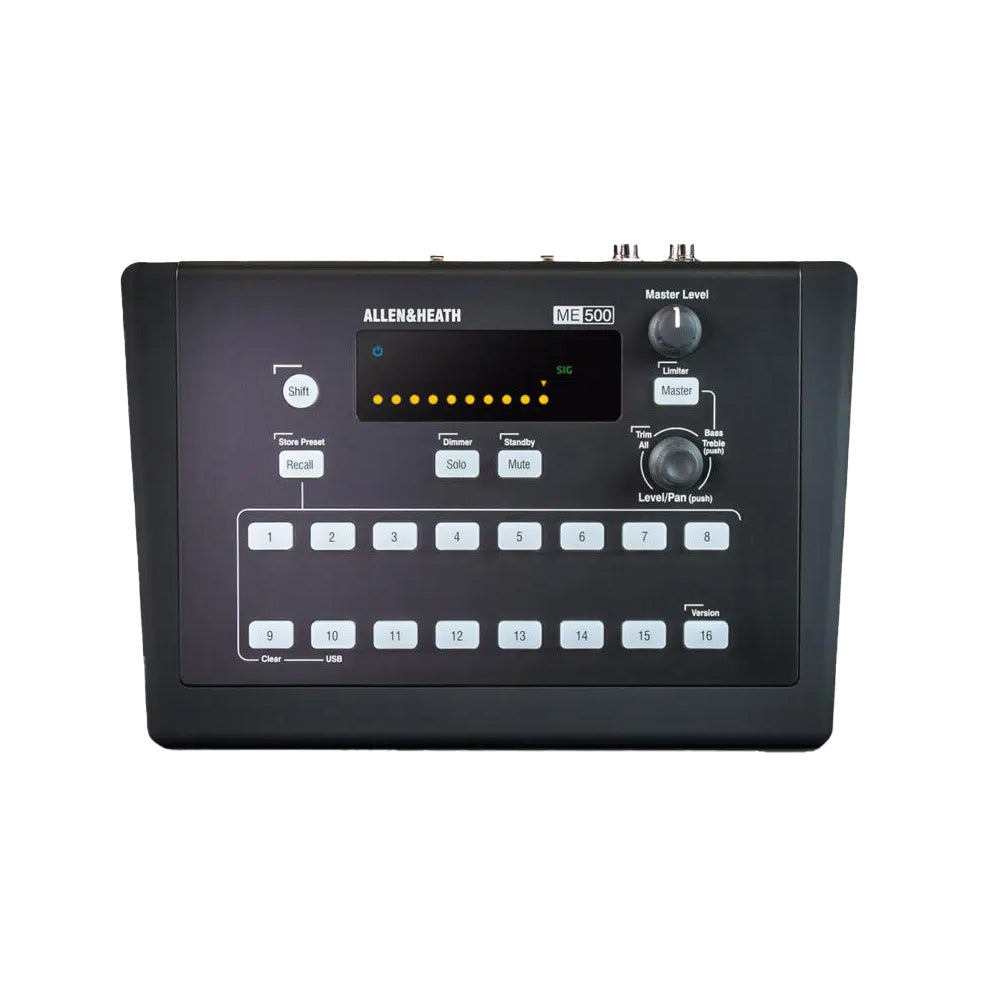

Allen & Heath ME-500 16-Channel Personal Mixer
Allen & Heath ME-500 16-Channel Personal Mixer

ME-500 is a walk-up-and-mix solution that is quick to set up and can be used instantly with no learning curve. With plug ‘n’ play setup and self-sufficient musicians, ME-500 is also a massive time-saver for the audio engineer.

Sound Design
  • Powerful, Clear Sound
    The ME-500 features ¼” and 3.5mm mini-jack headphone outputs and will drive all popular headphone types and impedances, delivering enough power so you can always hear your mix loud and clear through your favourite headphones or in-ears.
  • Protect Your Ears
    The integrated limiter, which can be adjusted from –24db to 0dB, keep your ears safe by preventing any unexpected loud signals reaching your headphones.
Engineer Friendly Automatic Setup
With ME-500 there’s no time-consuming configuration. The first 16 channels/mixes sent from the mixer will be automatically mapped to ME-500’s 16 select keys, so it is fast and simple to deploy personal mixers in pressured situations such as festivals.

Musician Friendly No Learning Curve

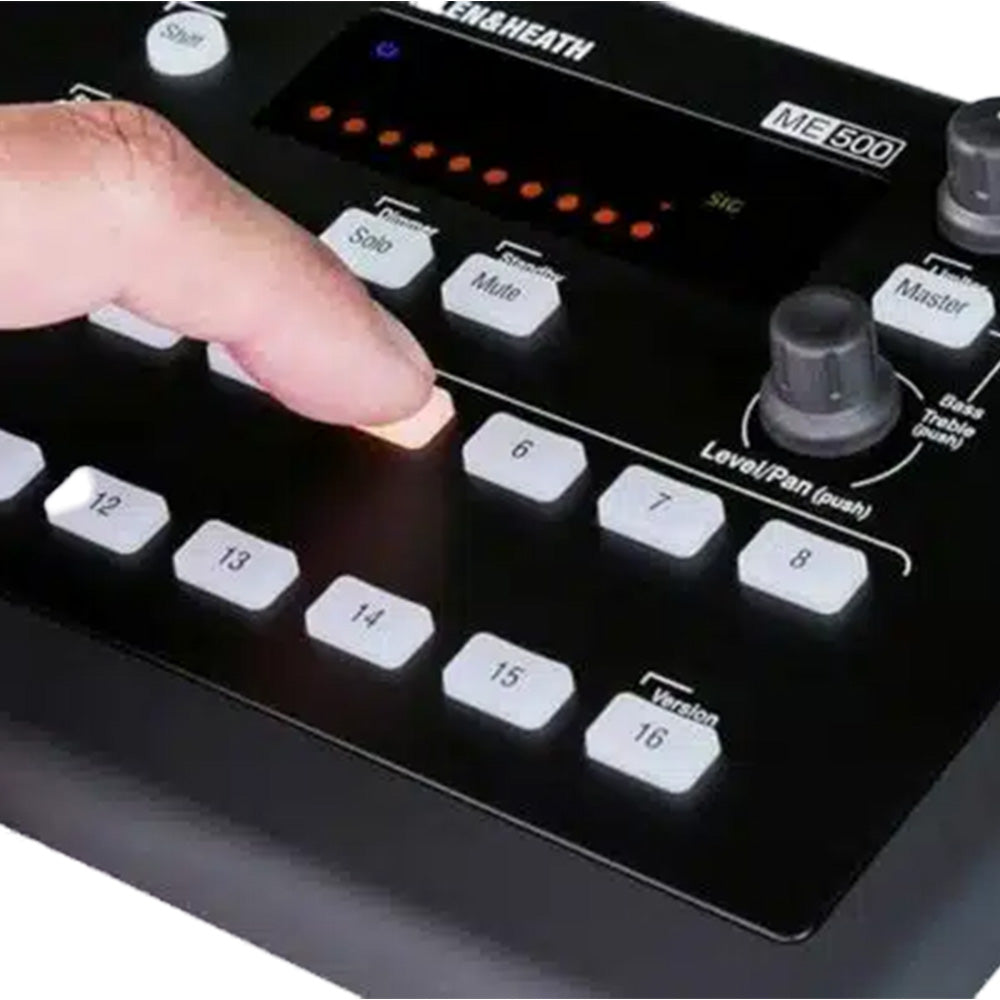

The intuitive hands-on controls and clear visual display make it easy for musicians to control their own monitor mixes. The uncluttered top panel makes control quick, easy, and intuitive: press a key to select one of the 16 sources and turn the rotary control to adjust the volume or push and turn to adjust the pan. Dedicated Mute and Solo switches ensure fast, instinctive control of the mix.
  • 16 Mono / Stereo Inputs With Level and Pan Control
  • Master 2-Band Eq and Limiter
  • Automatic Key Assignment
  • 8 User Presets
  • 3.5MM and 1/4” Headphone Outputs
  • Solo and Mute Keys
  • Mains or PoE Powered
  • Daisy Chain or Use Standard PoE Ethernet Hubs
  • Mic Stand Bracket + Headphone Hanger Sold Separately
  • Type: Personal Mixer
  • Compatibility: Native dLive, GLD, Qu, Aviom A-Net 16 (DiGiCo, Yamaha, Avid and others via ME-U hub)
  • Number of Ports: 1 x Link In, 1 x Link Out
  • Connection Type: EtherCon
  • Input Channels: 16
  • Output Channels: 16
  • Analog Inputs: 1 x 1/4" TRS (mono out)
  • Analog Outputs: 1 x 1/4" TRS (mono)
  • Headphones: 1 x 1/4" TRS, 1 x 1/8" TRS
  • Data I/O: 1 x USB Type A
  • Form Factor: Desktop
  • Power Source: 12V DC power supply / PoE support
  • Height: 2.2"
  • Width: 9.0"
  • Depth: 6.3"
  • Weight: 2.4 lbs.
  • Manufacturer Part Number: AH-ME-500

Allen & Heath ME-500 16-Channel Personal Mixer

Regular price $599.99

FINANCE OPTIONS:
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
SPECIFICATIONS:

ME-500 is a walk-up-and-mix solution that is quick to set up and can be used instantly with no learning curve. With plug ‘n’ play setup and self-sufficient musicians, ME-500 is also a massive time-saver for the audio engineer.

Sound Design
  • Powerful, Clear Sound
    The ME-500 features ¼” and 3.5mm mini-jack headphone outputs and will drive all popular headphone types and impedances, delivering enough power so you can always hear your mix loud and clear through your favourite headphones or in-ears.
  • Protect Your Ears
    The integrated limiter, which can be adjusted from –24db to 0dB, keep your ears safe by preventing any unexpected loud signals reaching your headphones.
Engineer Friendly Automatic Setup
With ME-500 there’s no time-consuming configuration. The first 16 channels/mixes sent from the mixer will be automatically mapped to ME-500’s 16 select keys, so it is fast and simple to deploy personal mixers in pressured situations such as festivals.

Musician Friendly No Learning Curve
The intuitive hands-on controls and clear visual display make it easy for musicians to control their own monitor mixes. The uncluttered top panel makes control quick, easy, and intuitive: press a key to select one of the 16 sources and turn the rotary control to adjust the volume or push and turn to adjust the pan. Dedicated Mute and Solo switches ensure fast, instinctive control of the mix.
  • 16 Mono / Stereo Inputs With Level and Pan Control
  • Master 2-Band Eq and Limiter
  • Automatic Key Assignment
  • 8 User Presets
  • 3.5MM and 1/4” Headphone Outputs
  • Solo and Mute Keys
  • Mains or PoE Powered
  • Daisy Chain or Use Standard PoE Ethernet Hubs
  • Mic Stand Bracket + Headphone Hanger Sold Separately
  • Type: Personal Mixer
  • Compatibility: Native dLive, GLD, Qu, Aviom A-Net 16 (DiGiCo, Yamaha, Avid and others via ME-U hub)
  • Number of Ports: 1 x Link In, 1 x Link Out
  • Connection Type: EtherCon
  • Input Channels: 16
  • Output Channels: 16
  • Analog Inputs: 1 x 1/4" TRS (mono out)
  • Analog Outputs: 1 x 1/4" TRS (mono)
  • Headphones: 1 x 1/4" TRS, 1 x 1/8" TRS
  • Data I/O: 1 x USB Type A
  • Form Factor: Desktop
  • Power Source: 12V DC power supply / PoE support
  • Height: 2.2"
  • Width: 9.0"
  • Depth: 6.3"
  • Weight: 2.4 lbs.
  • Manufacturer Part Number: AH-ME-500
Allen & Heath ME-500 16-Channel Personal Mixer
Regular price $599.99
