Designed for life on the stage, CQ-20B is the highest channel-count mixer in the range and is controlled via the free CQ MixPad app.

Capture the Performance, Wherever You Are

CQ packs in multiple recording and playback options to ensure you’re always ready to capture the performance.

An integrated USB audio interface enables easy multitrack recording, playback and streaming via your DAW, and an SD card slot is provided for reliable multitrack recording and playback on the go.

You can record and playback stereo files via USB key, and you can even playback from your phone via the built-in Bluetooth functionality.

The CQ-20B also includes an assignable Alt-Out – great for an engineer’s IEM connection.

Leave Your Access Point at Home

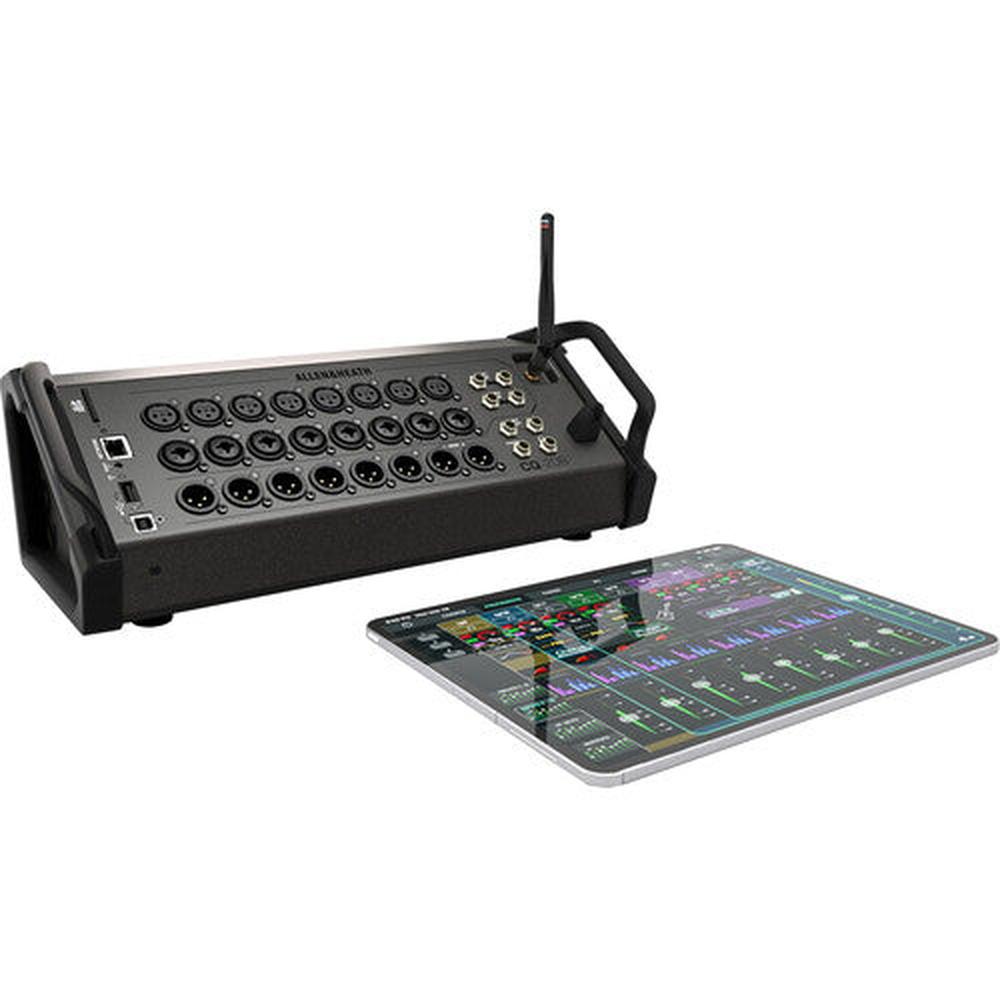

The CQ-20B is designed to be controlled via the intuitive CQ MixPad app and features powerful integrated dual-band Wi-Fi so you don’t need to connect an access point or router to use apps for control of the mixer.

Just connect your devices to the CQ’s secure Wi-Fi network and you’re ready to go.

Get Yourself Connected

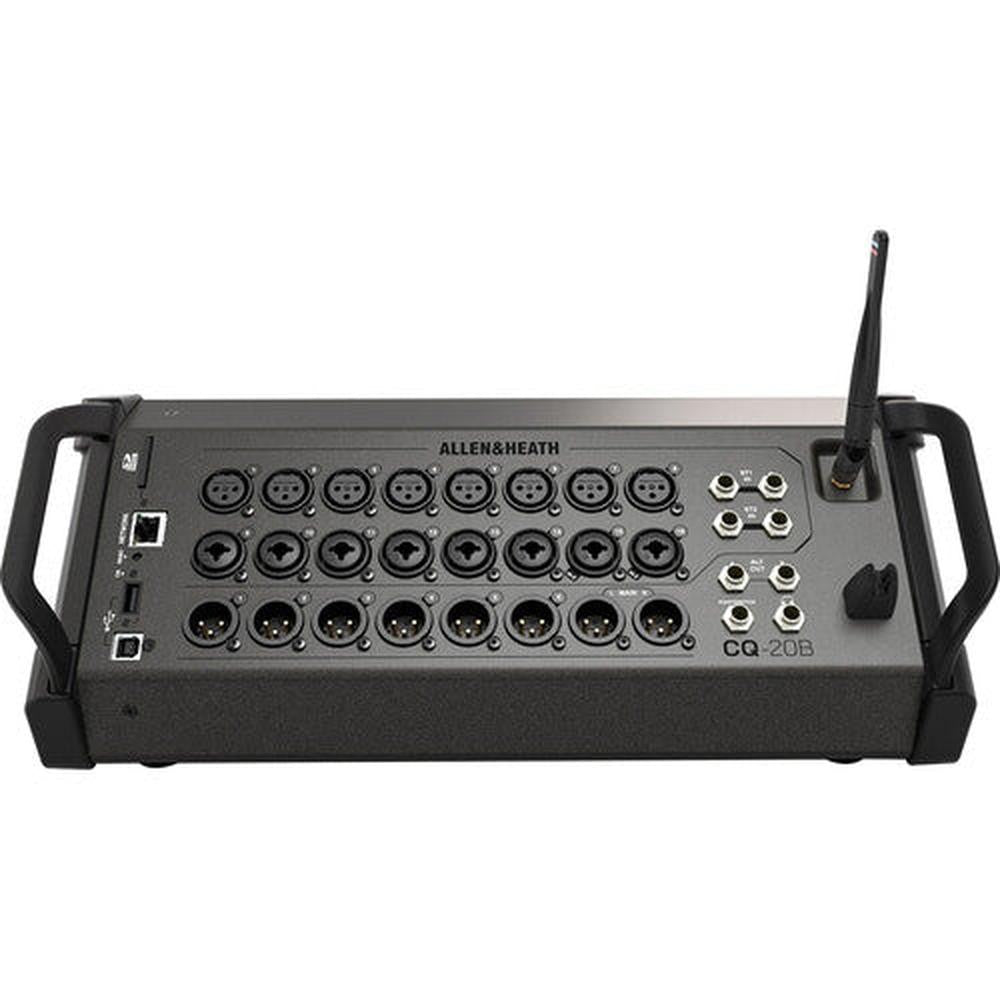

CQ-20B gives you all the connectivity you need to get going with 16 mic/line inputs plus two stereo line inputs.

When it comes to outputs, there’s a pair of main mix outputs plus 6 outputs for monitor mixes – enough for the whole band – and an assignable Alt Output is also provided.

• Inputs:
  • 8 XLR
  • 8 XLR/TRS Combi
  • 4 TRS (stereo)
• Outputs:
  • 2 XLR (Main)
  • 6 XLR (Monitors)
  • Assignable Alt Out
• 24x24 USB-B interface (48/96kHz)
• SD Record/Playback
  • 24x24 (48kHz)
  • 16x16 (96kHz)
• Stereo USB record/playback with dedicated input channel
• Stereo Bluetooth playback with dedicated input channel
• 4 FX engines
• Dual Footswitch connection
• Assignable TRS headphone output
• Built-in dual band 2.4g/5g AC Wi-Fi with auto channel select
