Designed to accommodate a wide variety of live sound reinforcement and recording scenarios, the Allen & Heath Qu-Pac is a 16-input 12-output rackmountable console-less digital mixer that doubles as a 32x32 USB recording interface. Featuring 16 of the company's recallable AnalogiQ microphone preamps and powered by a 5 core ARM processor, the Qu-Pac provides a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, and reverb.
The mixer is compatible with both the ME Personal Mixing System and dSNAKE digital connectivity system from Allen & Heath, which allows for up to 38 inputs. The Qu-Pac can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network. Engineered for intuitive navigation, the mixer also features a 5" touchscreen display, providing access to all settings.



  • 16 Mic/Line Inputs
  • 16 Recallable AnalogiQ Preamps
  • 12 Mix Outputs
  • 32x32 USB Recording Interface
  • 4 Built-In FX Engines
  • 5" Touchscreen
  • iPad App for Wireless Mixing
  • EQ & Dynamics on Each Input
  • Up to 38 Inputs via dSNAKE
  • Includes Rack Ears and Hardware
  • Max I/O Capacity: 16x Input / 12x Output
  • Number of Analog Input Channels: 32
  • Number of Mic Preamps: 16
  • Number of Analog Output Channels: 12
  • Faders & Level Adjustment: No

Built-In Effects

  • Reverb
  • Delay
  • Reverb (Gated)
  • ADT
  • Chorus
  • Phaser
  • Flanger

Analog Inputs

  • 1x XLR Talkback Input
  • 16x XLR Balanced Mic Input
  • 16x 1/4" TRS Balanced Line Input
  • 4x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled)
  • 1x 1/8" / 3.5 mm Unbalanced Aux Input

Analog Outputs

  • 10x XLR Balanced Mix Output
  • 2x XLR Balanced Main Output
  • 4x 1/4" TRS Balanced Aux Output (2 Stereo Pairs)

Digital I/O

  • 1x RJ45 (Network)
  • 1x XLR AES3 Output
  • 1x etherCON dSNAKE (I/O)
  • USB I/O
  • 1x USB-A (External Memory)
  • 1x USB-B 2.0 (Audio Streaming)
  • Wireless: No
  • Rack Mountable: No

Mixer

  • Max I/O Capacity: 16x Input / 12x Output
  • Number of Analog Input Channels: 32
  • Number of Mic Preamps: 16
  • Number of Analog Output Channels: 12
  • Mix Routing: 4x Stereo FX Return

Groups

  • 4x Mute Group
  • 4x DCA Group
  • Display: 5" Touchscreen
  • Faders & Level Adjustment: No

Signal Processing

Gain/Trim Range:

  • Line: ±24 dB (Stereo Channels)
  • Line/Mic: -5 dB to +60 dB (in 1 dB Steps)
  • Input Polarity: Normal/Reverse

EQ

  • FX Returns: 4-Band Parametric

EQ Parameters

  • 1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
  • 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz
  • 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
  • Graphic EQ: 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
  • Filters: High-Pass: 20 Hz to 20 kHz, 12 dB/Octave

Built-In Effects

  • Reverb
  • Delay
  • Reverb (Gated)
  • ADT
  • Chorus
  • Phaser
  • Flanger
  • Audio Delay: Adjustable Up to 170 ms

Digital Audio

  • Sample Rates: 48 kHz
  • AES3 Output: 48 kHz
  • Stereo Record: 48 kHz
  • Stereo Playback: 44.1 / 48 kHz
  • Multitrack Record: 48 kHz
  • Multitrack Playback: 48 kHz

Bit Depth

  • AD/DA Conversion: 24-Bit Delta Sigma
  • Stereo Record: 24-Bit
  • Stereo Playback: 16 / 24-Bit
  • Multitrack Record: 24-Bit
  • Multitrack Playback: 24-Bit

Performance

  • Frequency Response: 20 Hz to 20 kHz +0/-0.5 dB

Max Input Level

  • Mic Input:
  • +19 dBu
  • Line Input:
  • +29 dBu
  • Aux Input:
  • +22 dBu (+4 dBu)
  • +18 dBu (0 dBu)
  • Analog Dynamic Range: 112 dB

I/O Impedance

  • AES3 Output: 110 Ohms
  • Aux Input: >7 Kilohms
  • Aux Output: < 75 Ohms
  • XLR Line Output: < 75 Ohms
  • XLR Line/Mic Input: >5 Kilohms
  • 1/4" Line/Mic Input: >10 Kilohms
  • Noise Floor: -90 dBu (with Inputs Muted)

THD+N

  • Mic/Line Input:
  • 0.0005% at Unity Gain
  • 0.001% at +30 dB Gain
  • Signal Generator: Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

Connectivity

  • Analog Inputs
  • 1x XLR Talkback Input
  • 16x XLR Balanced Mic Input
  • 16x 1/4" TRS Balanced Line Input
  • 4x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled)
  • 1x 1/8" / 3.5 mm Unbalanced Aux Input

Analog Outputs

  • 10x XLR Balanced Mix Output
  • 2x XLR Balanced Main Output
  • 4x 1/4" TRS Balanced Aux Output (2 Stereo Pairs)

Digital I/O

  • 1x RJ45 (Network)
  • 1x XLR AES3 Output
  • 1x etherCON dSNAKE (I/O)
  • MIDI I/O: No

USB I/O

  • 1x USB-A (External Memory)
  • 1x USB-B 2.0 (Audio Streaming)
  • USB I/O Capacity: 32x Input / 32x Output
  • Expansion Ports: No
  • Wireless: No

Mobile App Compatible

  • Yes: iPadOS Only
  • App Name: Qu-Pad
  • Functionality: Adjust Settings, Remote Control, Setup

Recording

Max Multitrack Recording: 18 Tracks

Compatibility

  • OS Compatibility: iPadOS Only

Power

  • Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

  • Rack Mountable: No
  • Rackmount Size: 4 U
  • Operating Conditions: 32 to 95°F / 0 to 35°C

Dimensions

  • 17.3 x 7.1 x 7.1" / 44 x 18 x 18.1 cm (Desk-Mounted)
  • 19 x 6.9 x 7.1" / 48.3 x 17.4 x 18.1 cm (Rack-Mounted)
  • Weight: 14.5 lb / 6.6 kg

Packaging Info

  • Package Weight: 20.8 lb
  • Box Dimensions (LxWxH): 24 x 11.5 x 11"

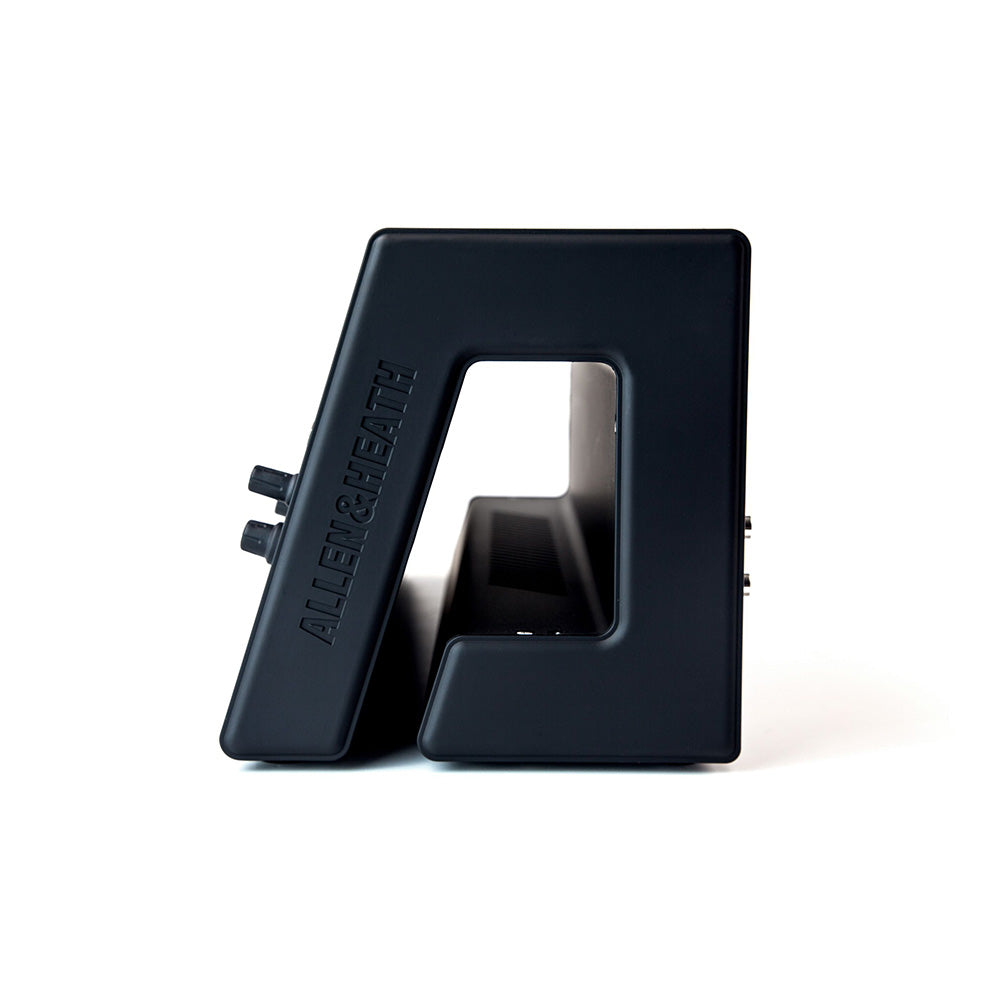

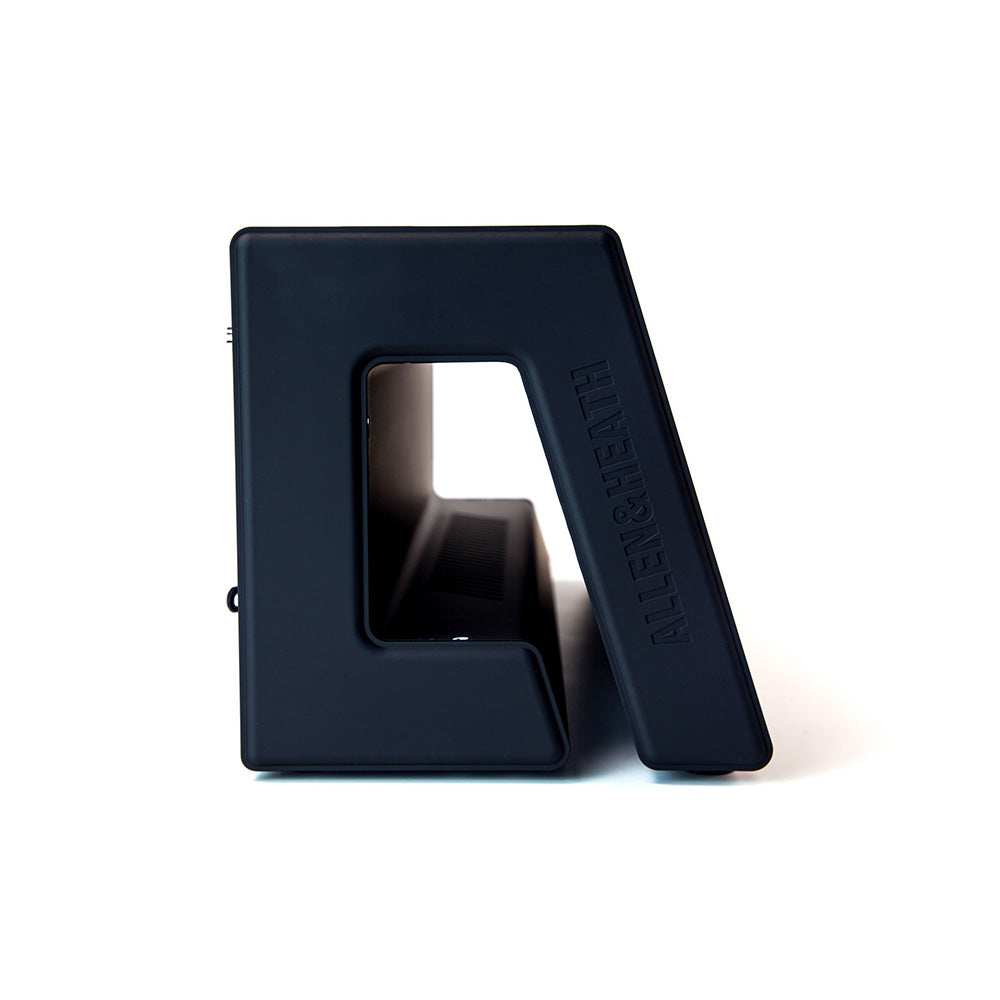

Allen & Heath QU-PAC 32-Channel Rack Mount Digital Mixer

Regular price $1,999.99
