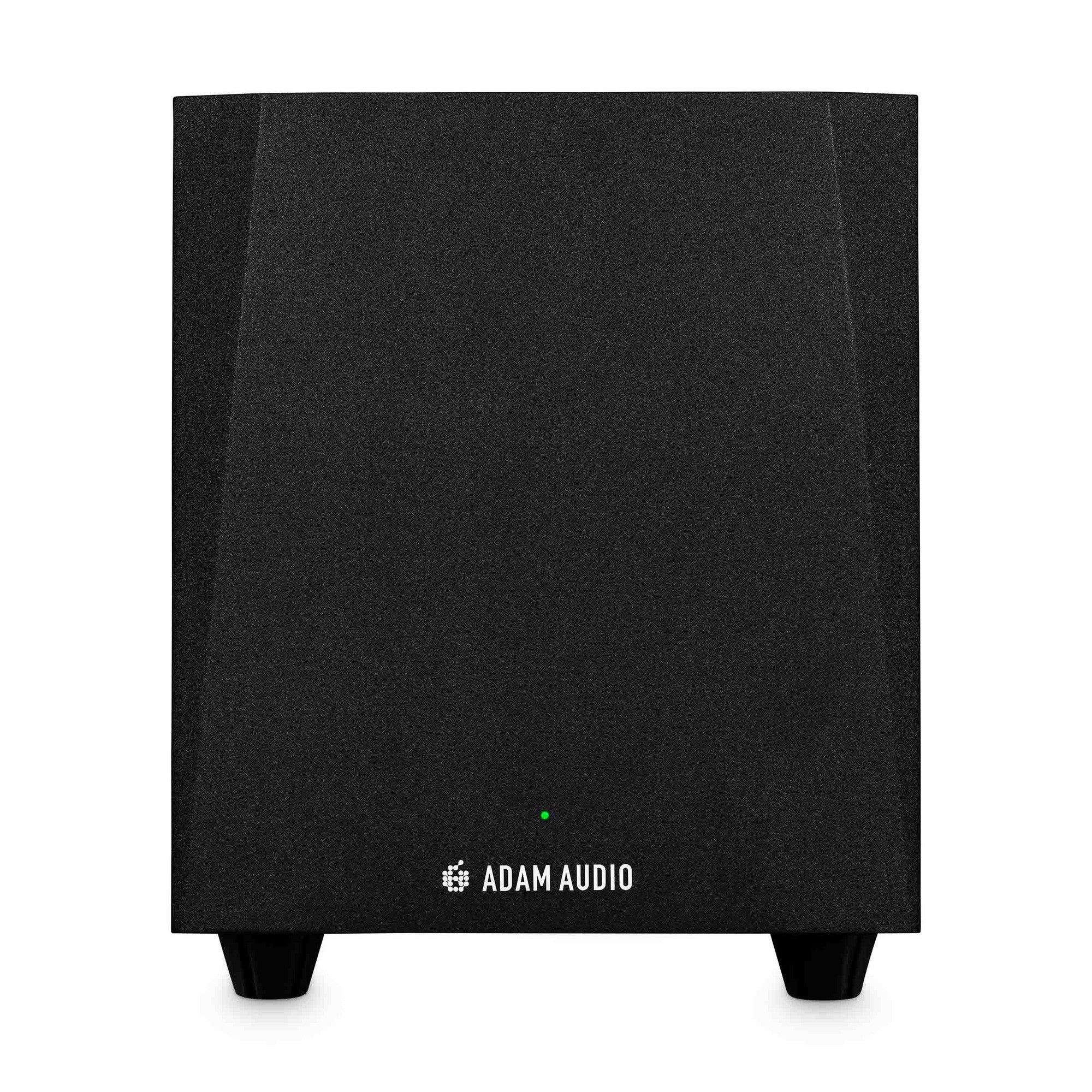

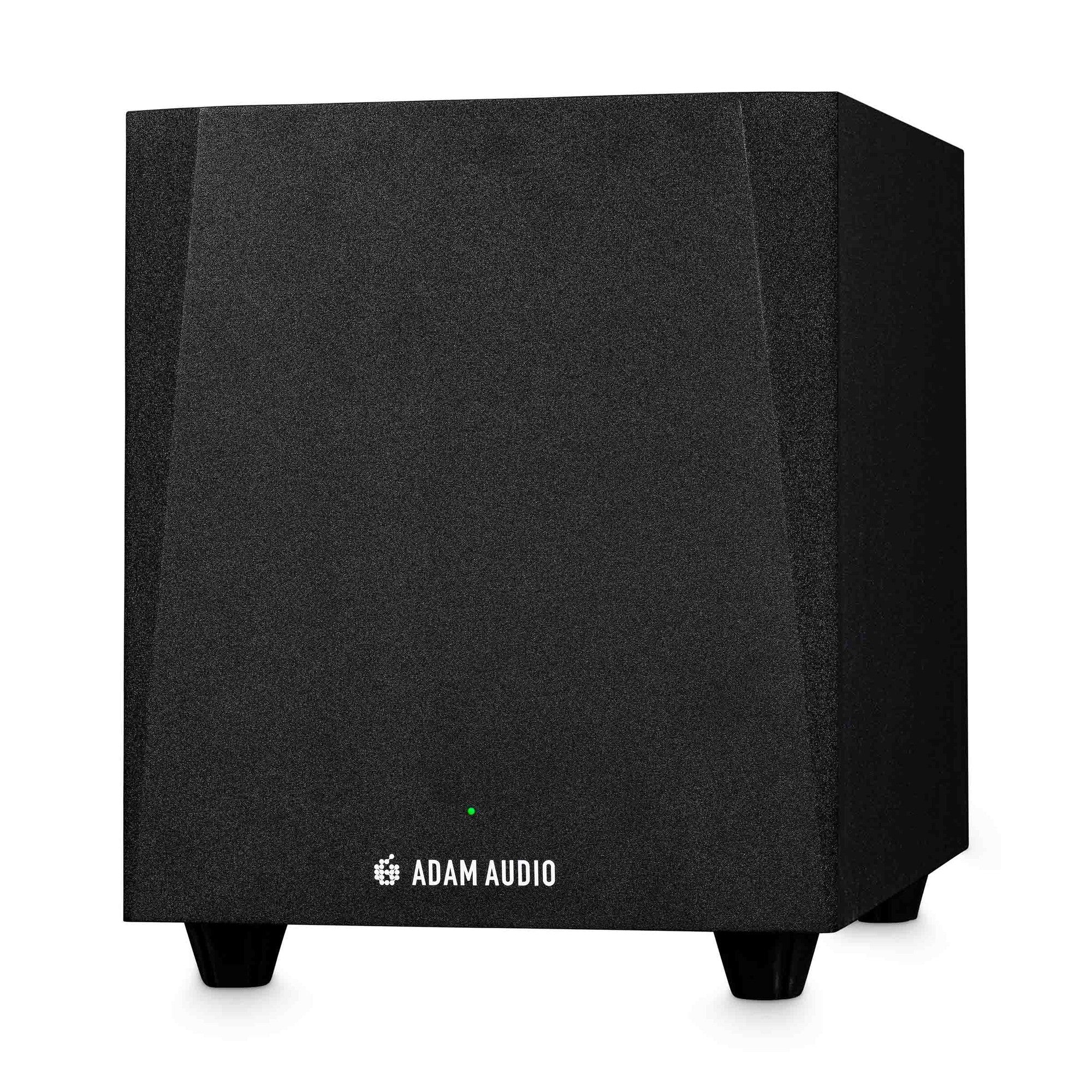

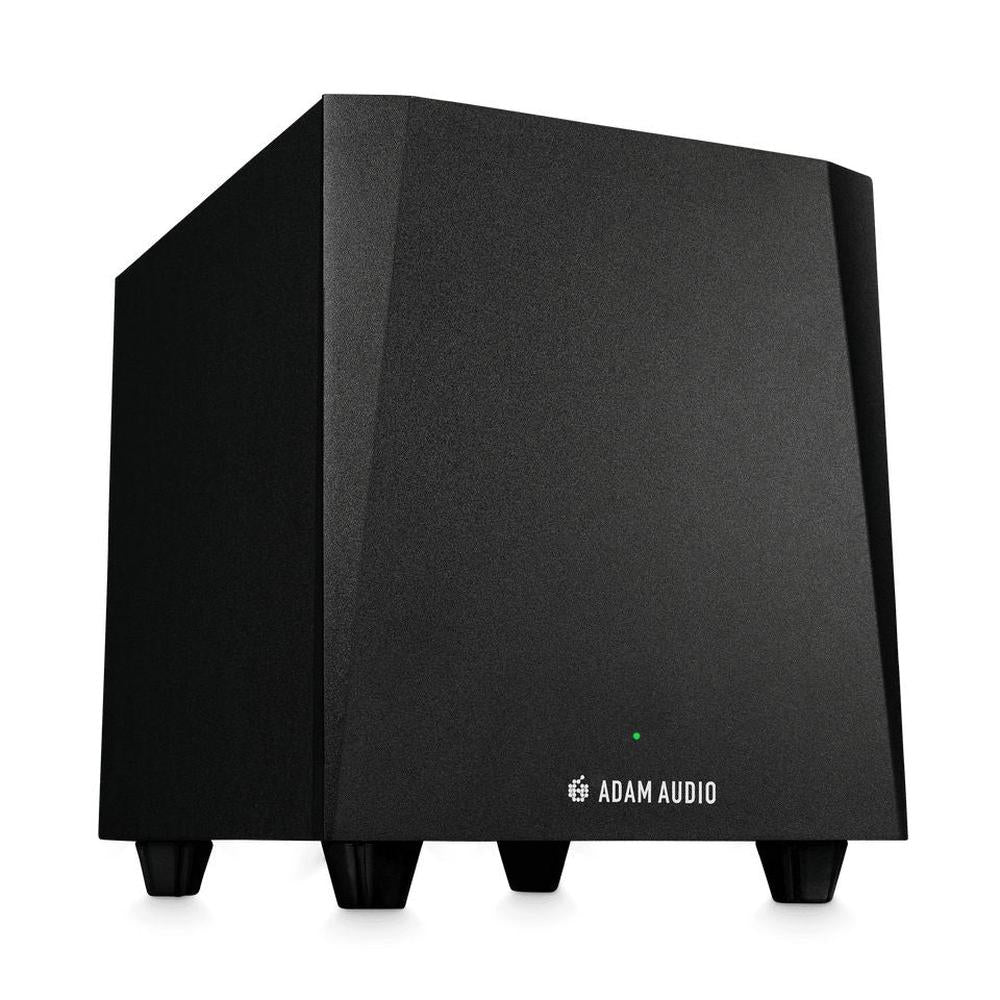

The ADAM Audio T10S is a powerful yet compact active subwoofer, with a particularly attractive price/performance ratio, designed for extending the bass range of smaller and medium nearfield monitors. Its dimensions make the T10S especially useful for home studio and semi-professional use. The subwoofer’s performance, features and connectivity are engineered specifically to complement ADAM Audio’s T5V and T7V speakers.

Equipped with a downward-firing 10˝ woofer, ample sized bass reflex port, and commanding 130 watt Class-D amplifier, the T10S’ frequency response ranges from 28 Hz to 120 Hz and offers an impressive maximum sound pressure level of 104 dB.

An adjustable low-pass filter for matching to satellites, automatic or manual on/off, and four acoustically decoupling rubber feet complete the T10S's features. The qualities of the T10S subwoofer have found favor in numerous tests by the international trade press.

FEATURES

• Extend your low end - The T10S is a powerful yet compact active subwoofer, designed to extend the bass response and give a clearer picture into the low frequencies you might miss.
• Make the most of your T-Series Monitors — The T10S subwoofer is engineered specifically to complement ADAM Audio’s T5V and T7V speakers.
• Adjustable to fit your room and your setup – The downward facing woofer allows for more flexibility when placing the subwoofer in your studio setup.

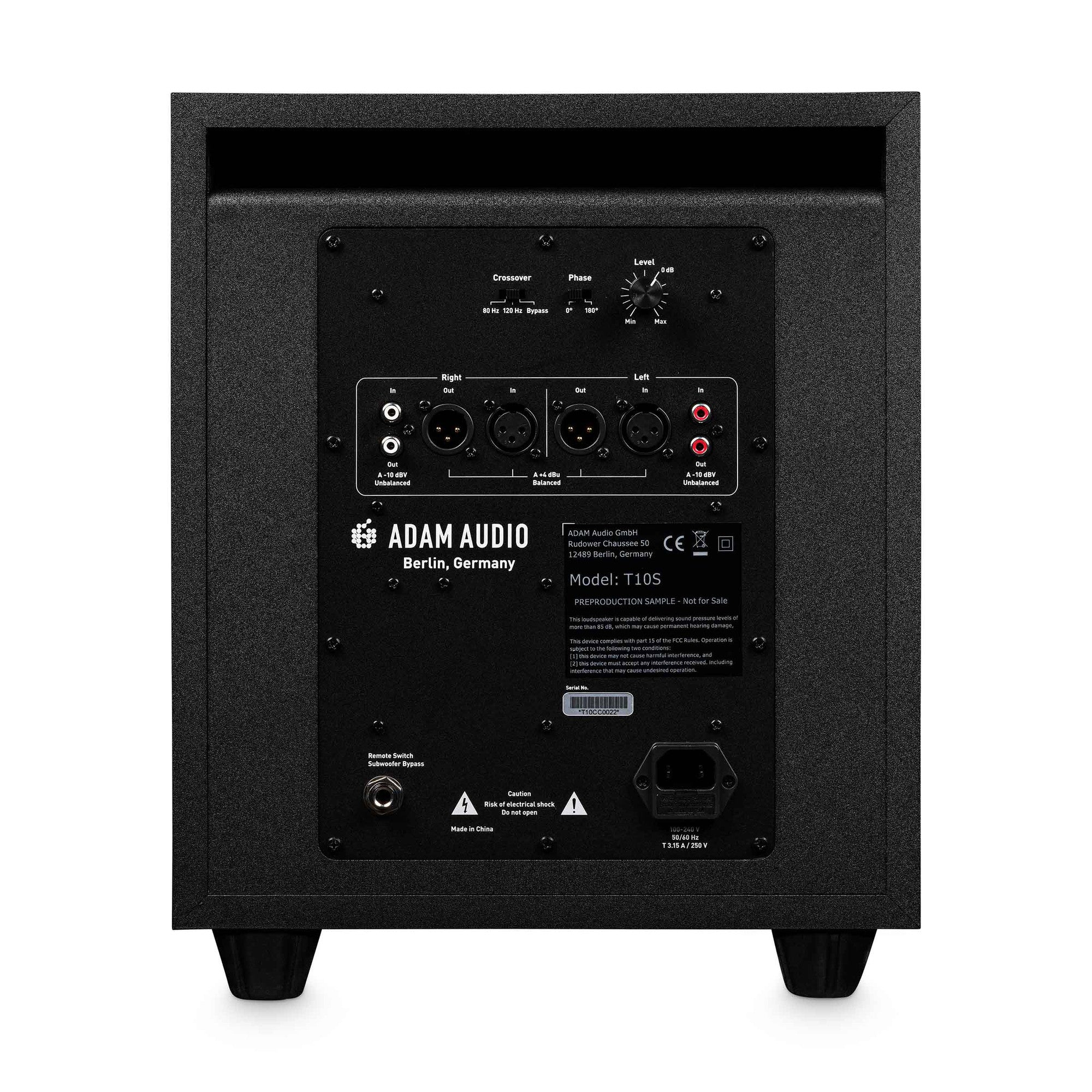

• The subwoofer bypass connection on the back panel allows you to quickly toggle the subwoofer on and off with a footswitch to easily check your mix with or without the bass extension.
• Easily calibrate the T10S subwoofer to your studio monitors for maximum accuracy with the adjustable crossover settings, phase rotation switch and dedicated volume control to best fit your workflow.

• Max. Power Consumption: 190 W
• Input Sensitivity: +4 dBu / -10 dBV
• Panel: Rear
• Bypass: Yes, via footswitch (not included)
• Standby: Yes, activates after 15 minutes with no incoming signal
• Weight: 27 lb (12.2 kg)
• Height x Width x Depth: 15.4″ (390 mm) x 12.5″ (318 mm) x 16.25″ (413 mm)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: Power cord, Quick Start Guide, Welcome Card
• Analog Inputs: XLR / RCA
• Analog Outputs: XLR / RCA
• Type: PWM
• Amp. Power RMS: 130 W
• Frequency Response: 28 Hz – 120 Hz (-6 dB)
• THD > 60 Hz: 0.6 %
• Max. SPL at 1 m (hemisphere): ≥104 dB
• Basket Diameter: 10″ (260 mm)
• Voice Coil Diameter: 1.5″ (38 mm)
• Cone Material: Paper
• Crossover Frequency: 80 Hz / 120 Hz / Bypass
• Phase Inversion: 0° / 180°
