Compact size, massive tone

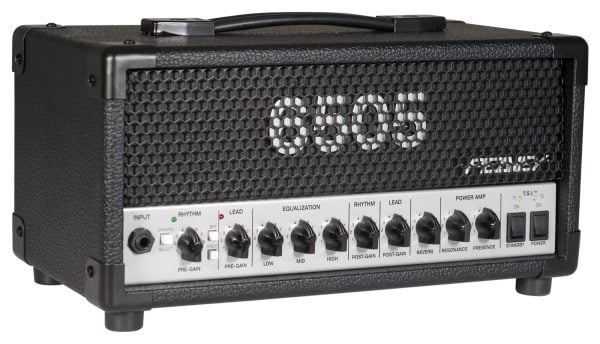

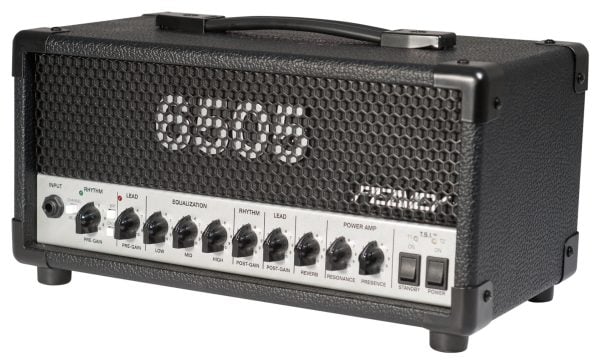

Featuring an all-tube preamp and power amp, the 6505 MH tube guitar amp authentically produces the much-loved tones of the legendary Peavey 6505 1992 Original in a small, portable package. In fact, the 6505 MH tube amp has two channels that follow the same gain structure and voicing of its big brother! The two channels share a 3-band EQ, lush reverb, and an effects loop. The included footswitch controls channel switching, crunch, effects loop, and reverb giving you total control over your sound. Additionally, with a built-in resistive load, the 6505 MH can be played while disconnected from a speaker cabinet - the perfect feature for silent recording.

With the compact 6505 MH behind you, unleash your signature sound at home, in the studio, or on stage.

• Stacked with (2) x EL84 power tubes and (3) x 12AX7/ECC83 preamp tubes
• Features an attenuator switch for 20 watts, 5 watts, or 1 watt output power
• Includes an MSDI™ (Microphone Simulated Direct Interface) Output with XLR and ground lift switch
• Pairs with 16-ohm and 8-ohm speakers
• Built-in speaker defeat switch and headphone output

The sound of modern metal

The 6505 Series is well known for its distinctive tones and genre-defining sound. After bursting onto the hard rock stage in the early 90’s, the 6505 Series tube guitar amps went on to create the sound of modern heavy metal. There are no metal amps more important to today’s sound than the ones found in the 6505 Series. If you’re in a heavy metal band today, or considering forming one in the near future, the 6505 Series tube amps are a foundational piece to craft your signature sound.

• Rated Power: 20 W(rms) into 8 or 16Ω
• Power Consumption: (Domestic) 90 W, 50/60 Hz, 120 VAC
• Tube Complement: 2 x EL84, 3 x 12AX7/ECC83
• Dimensions: 7.25" x 14.00" x 7.75" / 185mm x 356mm x 197mm (height includes feet and handle)
• Preamp Input:
  • Impedance: Very High-Z, 1MΩ
• Effects Send:
  • Low Impedance: To High-Z, 22kΩ or greater
  • Nominal Output Level: 0 dBV, 1.0 V(rms)
• Effects Return:
  • Impedance: High-Z, 100kΩ
  • Designed Input Level: 0 dBV, 1.0 V(rms)
• Equalization: Custom Low, Mid, & High passive EQ
• Remote Footswitch(s): (included) Special 2-button unit with LED
  indicators (#00579720)
  • One footswitch for channel selection
    and boost functions.
  • A second footswitch can be used for
    switching reverb and effects loop on
    and off.
• Signal to Noise Ratio: Better than 74dB on all models (compared to full power and dependent on preamp settings)
• MSDI Output:
  • Low Impedance: 600Ω - QuasiBalanced
  • Output Level: Dependent on controls but -12dBu (+/-3dBu) at full power on all models
• USB Output:
  • Output Level: Dependent on controls but -6dB (+/-3dB) at full power on all models
• Power Attenuator: Three setting switch for 100%, 25% and 5% of rated power. (20W, 5W and 1W respectively.)
• Headphone Output: Stereo mini-jack with filtered output for driving stereo headphones, 16Ω - 50Ω impedance per channel.
